Custom Precision Optical Lenses: Multi-Material, 3-500mm, Plano & Bi-Configurations, AR Coating
Description
Unleash the power of optics with our Custom Precision Optical Lenses by ARD Optics, engineered to meet your specific needs. Crafted from a diverse range of materials including sapphire, BK7, fused silica, and more, our lenses offer unparalleled precision and performance. With diameters ranging from 3mm to 500mm and various configurations including plano and bi-configurations, our lenses are tailored for excellence. Optional AR coating enhances performance across a broad spectrum. Ideal for industry, research, and innovation, ARD Optics is your partner in clarity and precision.
Custom Precision Optical Lenses: Multi-Material, 3-500mm, Plano & Bi-Configurations, AR Coating
Specifications |
|
|---|---|
| Material: | BK7, FS, UVFS, BaF2, MgF2 |
| Diameter: | 3-500 mm |
| Focal Length: | - mm |
| Edge Thickness, Te: | - mm |
| Lens Type: | Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave |
| Thickness Tolerance: | +/- 0.02 mm |
| Diameter Tolerance: | +/- 0.02 mm |
| Surface Quality: | Up to 20/10 by MIL-PRF-13830B |
| Flatness: | Up to λ/8 |
| Centering: | 2’ to 5’ (depending on radius of curvature) |
| Coatings: | Optional Anti-Reflective (AR) Coating |
Features

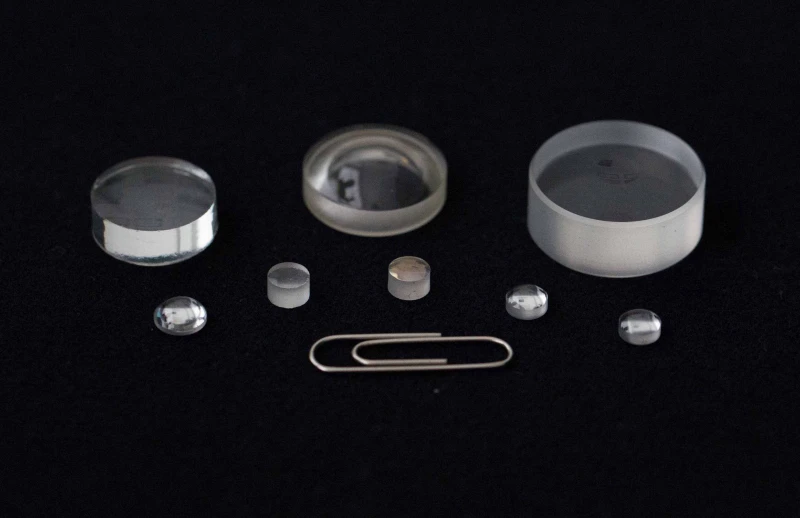

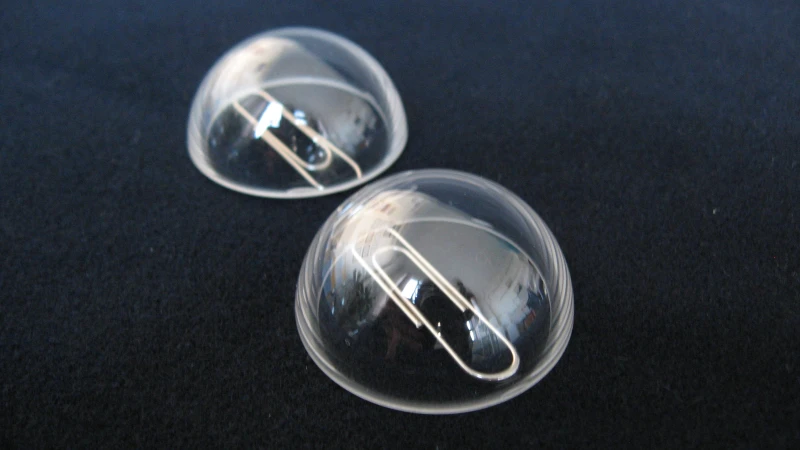

- Customizable Configurations: Choose from Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave, and Meniscus lens shapes to suit your application.

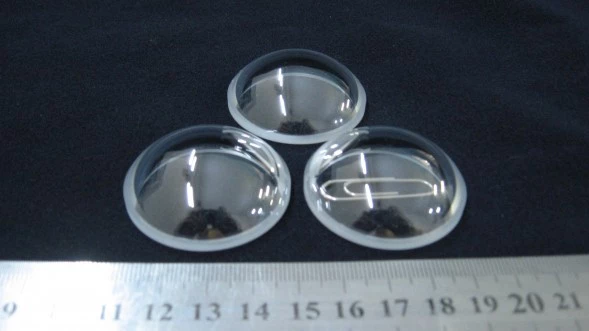

- Diverse Material Selection: Made from a variety of high-quality materials such as sapphire, BK7, MgF2, BaF2, fused silica, and more.
- High Precision: Achieve exceptional accuracy with thickness tolerance of +/- 0.02, diameter tolerance of +/- 0.02, and surface quality up to 20/10.
- Exceptional Surface Quality: Meet demanding applications with MIL-PRF-13830B standards in surface quality.
- Broad Size Range: Versatile lens sizes with diameters ranging from 3mm to 500mm.
- Enhanced Optical Performance: Optional Anti-Reflective (AR) coatings available to reduce reflection and maximize transmission.
- Fine Flatness: Delivers flatness to λ/8 for precise optical performance.
- Accurate Centering: Centering between 2’ to 5’ depending on the radius of curvature.
Applications
- Imaging Systems: Ideal for high-resolution imaging systems including cameras, microscopes, and telescopes.
- Laser Technology: Suitable for use in laser cutting, laser marking, and laser measurement systems.
- Scientific Research: Perfect for academic and industrial research including spectroscopy and photonics.
- Medical Devices: Essential in medical imaging, diagnostic equipment, and surgical tools.
- Optical Communication: Key component in fiber-optic communication systems for data transmission.
- Industrial Inspection: Used in machine vision systems for quality control and automation.
- Defense & Aerospace: Employed in targeting systems, sensors, and surveillance equipment.
- Augmented & Virtual Reality: Integral in the development of AR and VR headsets for crisp and clear visuals.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Armenia
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
ARD Optics lenses are crafted from an array of high-quality materials including Sapphire, BK7, MgF2, BaF2, and Fused Silica among others.
The lenses are available in various configurations such as Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave, and Meniscus to cater to diverse optical needs.
Yes, ARD Optics offers a wide diameter range from 3mm to 500mm. Custom sizes are available to meet specific requirements.
Yes, ARD Optics lenses can be equipped with optional Anti-Reflective (AR) coatings to reduce reflection and maximize light transmission.
The lenses boast exceptional surface quality, up to 20/10, compliant with MIL-PRF-13830B standards, ensuring high-performance for demanding applications.
Absolutely! With high precision and optional AR coatings, ARD Optics lenses are ideal for various laser applications such as cutting, marking, and measurements.
Can ARD Optics lenses be used in medical devices?
The lenses' high precision, customizable configurations, and top-tier materials make them perfect for scientific research in fields like spectroscopy and photonics.
The lenses are made of Sapphire, Fused Silica, Ge, Si, and other optical materials, as well as optical glasses of all types.
The lenses have a surface quality of up to 20/10 by < MIL-PRF-13830 B.
The lenses are available in sizes ranging from Ø3mm to ø500mm.
The thickness tolerance of the lenses is +/- 0.02.
The lenses are available with AR/AR coatings.
