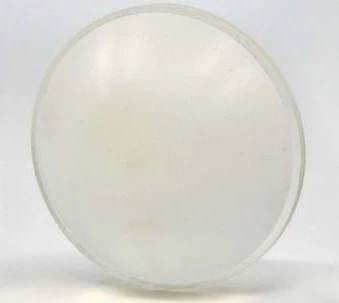

Customizable TPX Lens for Terahertz and Cryogenic Devices
Description
The TPX Lens for Terahertz and Cryogenic Devices is a highly adaptable optical component, made from precision optical-grade TPX material. Customizable in both diameter (from 10 mm to 150 mm) and focal length (15 mm to 350 mm), this lens is specifically designed for use in terahertz imaging systems, cryogenic instruments, and custom optical assemblies. Its wide transmission range of 300 nm to 2000 µm makes it ideal for precise optical control in scientific research. The lens also effectively blocks wavelengths between 2 µm and 14 µm.
With a superior surface quality of S&D 60/40, it provides excellent optical clarity and durability. The TPX lens is perfect for applications requiring reliable performance in extreme environments, such as low temperatures and terahertz frequency ranges. Its customizable specifications allow for integration into a variety of custom and standard optical setups, making it a versatile solution for advanced research and development needs.
This lens offers an excellent combination of quality, precision, and flexibility, ensuring reliable results in demanding applications across scientific and industrial sectors.
Customizable TPX Lens for Terahertz and Cryogenic Devices
Specifications |
|
|---|---|
| Material: | BK7, FS, UVFS, CaF2, ZnSe, Si, Ge, H-K9L, BaF2, MgF2, H-ZF13, Al2O3 (Sapphire) |
| Diameter: | 50 mm |
| Focal Length: | 100 mm |
| Edge Thickness, Te: | 2 mm |
| Lens Type: | Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave |
| Surface Quality S&D: | 60/40 |
| Transmission: | 300nm to 2000mm (not transmitting between 2µm and 14µm) |
| Applications: | Terahertz and cryogenic devices |
Features
- Customizable Diameter: Ranging from 10 mm to 150 mm to fit diverse optical setups
- Customizable Focal Length: Available from 15 mm to 350 mm for versatile optical designs
- Wide Transmission Range: Transmits from 300 nm to 2000 µm, excluding 2 µm to 14 µm
- Optical-Grade TPX Material: Ensures high-quality light transmission and durability
- Precision Surface Quality: Rated at S&D 60/40 for optimal optical clarity
- Designed for Extreme Environments: Ideal for terahertz and cryogenic applications
Applications
- Terahertz Imaging Systems: Suitable for devices operating in the terahertz frequency range
- Cryogenic Instruments: Performs reliably in low-temperature environments
- Scientific Research: Ideal for laboratories needing precise optical control
- Custom Optical Assemblies: Versatile enough to integrate into various custom optical designs
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The TPX lens is used in terahertz and cryogenic applications, offering precision in optical imaging and research across various scientific fields.
The TPX lens is made from optical-grade TPX material, known for its high transparency and durability in extreme environments.
The TPX lens can be customized with diameters ranging from 10 mm to 150 mm.
Custom focal lengths between 15 mm and 350 mm are available for the TPX lens, making it versatile for different optical setups.
The surface quality is S&D 60/40, ensuring excellent optical clarity and minimal imperfections.
The TPX lens provides transmission between 300 nm and 2000 µm, while blocking wavelengths from 2 µm to 14 µm.
Yes, the TPX lens is designed for use in cryogenic environments, maintaining performance in low-temperature conditions.
Yes, both the diameter and focal length can be customized to meet specific application requirements.
