VUV Grade CaF2
Description

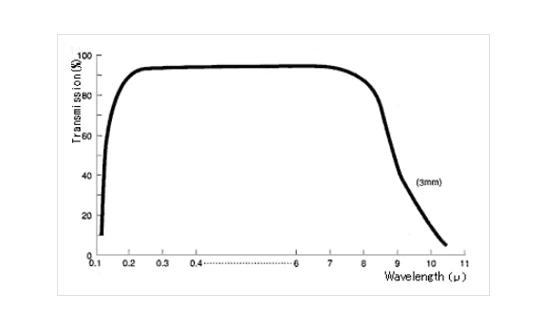

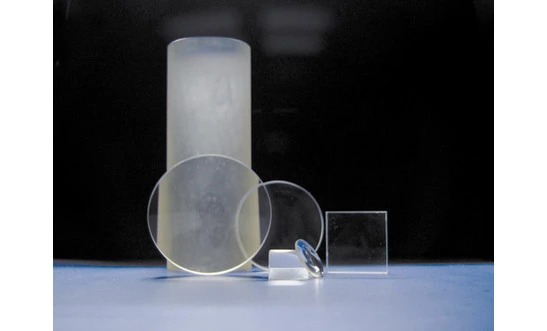

Calcium Fluoride has appropriate refractive index variations for wavelengths and transmission to wavelengths from vacuum ultraviolet 125nm to infrared 12um . It can be used as a prism, lens or window within a wide region from ultraviolet to infrared. Also, since it has unique optical dispersion (Abbe's number:95), it can be used as an achromatic lens(Apocromat) combined with other optical materials. It can also be used as a laser crystal or radiation detection crystal by doping it with the appropriate rare earth elements. |
Capabilities
1. Material: VUV Grade CaF2
2. Diameter: 1-45mm
3. Length: 1-75mm
VUV Grade CaF2
Specifications |
|
|---|---|
| Material: | CaF2 |
| Diameter: | 1-45 mm |
| Focal Length: | 1-75 mm |
| Edge Thickness, Te: | 0 mm |
| Lens Type: | Bi-Concave |
| Clear Aperture: | -85% of Diameter |
| Surface Flatness: | Surface Flatness |
| Surface Quality: | 20/10 |
Features
Specifications:
Clear Aperture-----------------------------------85% of Diameter
Surface Flatness---------------------------------λ/4 at 633nm
Surface Quality----------------------------------20/10
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
This product can be used as a prism, lens or window within a wide region from ultraviolet to infrared. It can also be used as an achromatic lens (Apocromat) combined with other optical materials. Additionally, it can be used as a laser crystal or radiation detection crystal by doping it with the appropriate rare earth elements.
Yes, this product is suitable for use in a wide range of applications due to its unique optical dispersion (Abbe's number:95) and its ability to transmit wavelengths from vacuum ultraviolet 125nm to infrared 12um.
VUV Grade CaF2 is a type of Calcium Fluoride that has appropriate refractive index variations for wavelengths and transmission to wavelengths from vacuum ultraviolet 125nm to infrared 12um.
The specifications of this product are: Clear Aperture - 85% of Diameter, Surface Flatness - λ/4 at 633nm, Surface Quality - 20/10.
The capabilities of this product are: 1. Material: VUV Grade CaF2 2. Diameter: 1-45mm 3. Length: 1-75mm
