Enhanced Broadband MLD Mirror 190-250nm M190-AL/MLD-.5D-MB (0.5" Diameter)
Description
Acton's Enhanced Broadband MLD (Multi-Layer Dielectric) Mirrors feature the advanced #1900 coatings, offering increased reflectance over the critical range of 190 nm to 250 nm.
Designed with enhanced durability, these mirrors resist humidity and can be effortlessly cleaned using a simple drag-and-drop method. Each coating lot is meticulously measured for reflectance properties, ensuring exceptional and consistent performance for every mirror supplied.
Enhanced Broadband MLD Mirror 190-250nm M190-AL/MLD-.5D-MB (0.5" Diameter)
Specifications |
|
|---|---|
| Substrate Material: | Metallic |
| Flatness: | Not Specified |
| Surface Quality: | Custom |
| Angle Of Incidence (AOI): | 0 deg |
| Wavelength Range: | 190-250nm |

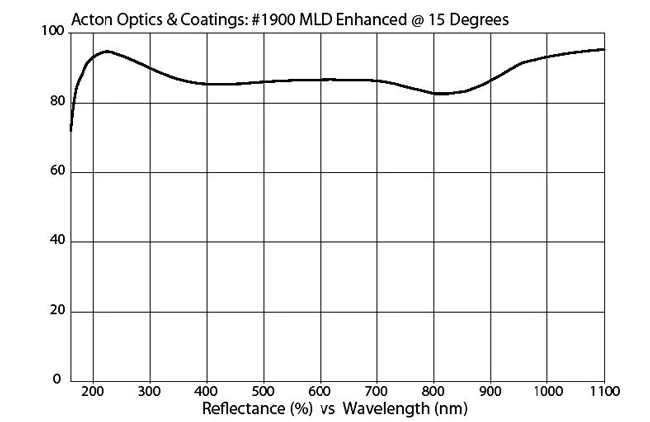

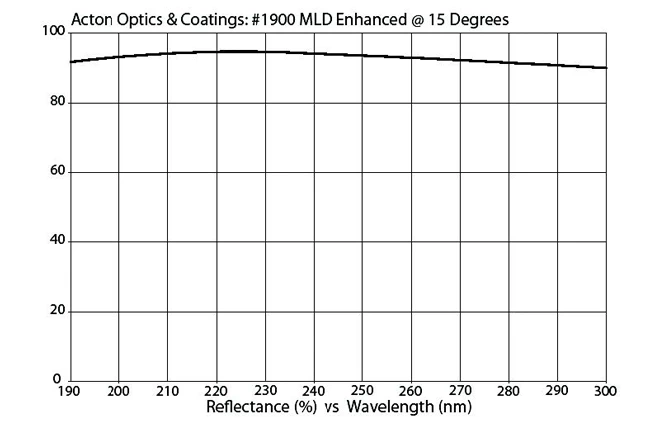

| Reflectance: | 92-94 % |
| Diameter: | 12.7 mm |
| Thickness: | 6.35 mm |
Features
- Enhanced Reflectance: Specifically optimized for increased reflectance in the critical range of 190 nm to 250 nm
- Durability: Coatings are designed to resist humidity, ensuring long-lasting performance in various environments
- Easy Maintenance: Mirrors can be easily cleaned using a simple drag-and-drop cleaning method
Applications
- DUV Spectrophotometers: Ideal for precise measurements in deep ultraviolet spectrophotometry
- Ellipsometers: Perfect for ellipsometric studies in the critical wavelength range
- Analytical Instrumentation: Enhances the performance of VUV/UV-based analytical instruments
- ICP Spectrometers: Improves spectral analysis in inductively coupled plasma spectrometry
- Aerospace Applications: Suitable for aerospace applications demanding high-performance mirrors
