Dichroic Mirrors (Wavelength & Harmonic Separators and Combiners) - Alien Photonics
Description

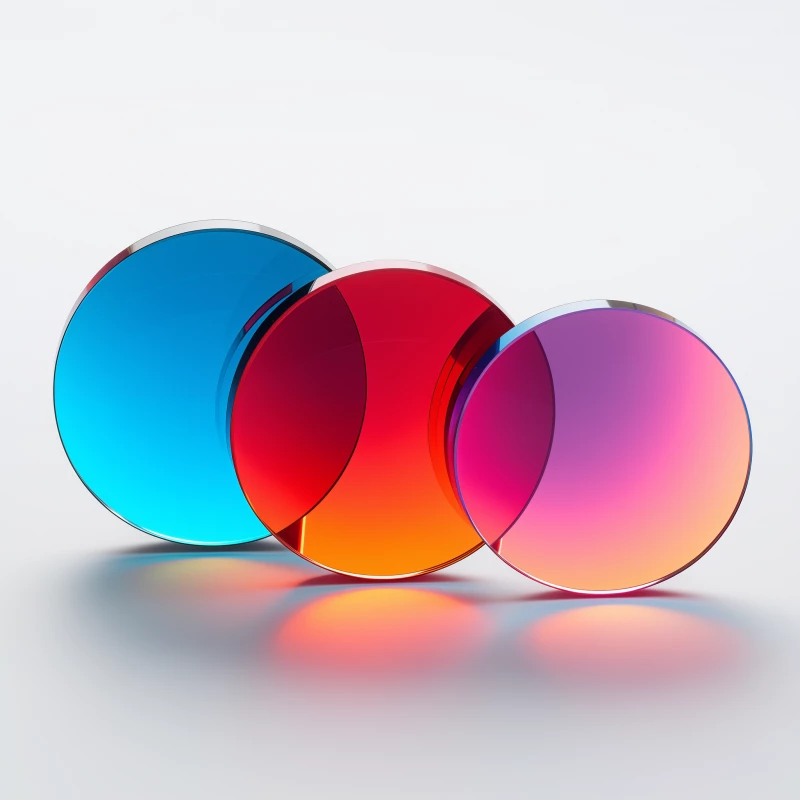

Dichroic Mirror separates light beam into two beams, by reflecting specific wavelengths and letting other wavelengths to pass through. Alien Photonics Dichroic Mirrors can be used to both separate or combine wavelengths. Optimization for reflection or transmission, various materials, shapes, LIDT options available.
Dichroic Mirrors (Wavelength & Harmonic Separators and Combiners) - Alien Photonics
Specifications |
|
---|---|
Wavelength Range: | Deep UV (< 200nm), UV (200-400 nm), Visible (400-700 nm), NIR (700-1000 nm), IR (1000 nm+), Custom |
Transmission Range: | 193-15000nm |
Reflection Range: | 193-6500nm |
Angle Of Incidence: | 0° (normal incidence), 15°, 30°, 45°, 60°, Broadband or Angle-Toleran |
Substrate Material: | Fused Silica, Borosilicate Glass (e.g., BK7), UV-grade Fused Silica, Sapphire, Calcium Fluoride (CaF2), Magnesium Fluoride (MgF2, Silicon (Si), Germanium (Ge), Zinc Selenide (ZnSe), Other (not specified) |
Shape: | Circular, Square, Rectangular, Custom shapes |
Surface Quality: | 10/5 (Scratch/Dig), 20/10 (Scratch/Dig), 40/20 (Scratch/Dig), 60/40 (Scratch/Dig), 80/50 (Scratch/Dig) |
Features
- Wide range of wavelengths
- High LIDT
- Transmission or Reflection optimized
Applications
- Harmonic Separators
- Wavelength separators
- Short pass dichroic mirror
- Long pass dichroic mirror
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
Lithuania
-
Sold by:
Alien Photonics -
On FindLight:
since 2024
Frequently Asked Questions
From 120 EUR/pc for small batches. Price may vary several factors (batch size, required quality, etc.)
If we have dichroic mirror in stock, it takes about 1-3 days to ship it. If Alien Photonics needs to produce the dichroic mirror (wavelength separator) it could take up to 4-6 weeks depending on complexity.
