Page 2 - 10-5 scratch-dig Laser Line Mirrors

UV and Excimer Laser Mirror 193nm XL M193-FRXL-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 193nm XL M193-FRXL-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 185-200nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
UV and Excimer Laser Mirror 193nm XL M193-FRXL-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 193nm XL M193-FRXL-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 185-200nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
UV and Excimer Laser Mirror 193nm XL M193-FRXL45-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 193nm XL M193-FRXL45-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 185-205nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

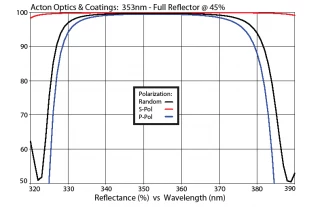

UV and Excimer Laser Mirror 353nm M353-FR45-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 353nm M353-FR45-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 353-353nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

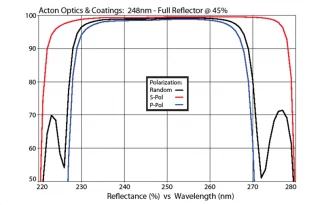

UV and Excimer Laser Mirror 248nm M248-FR45-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 248nm M248-FR45-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 220-280nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

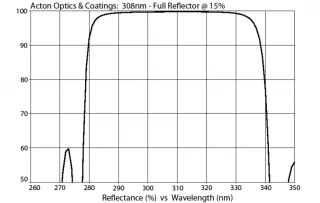

UV and Excimer Laser Mirror 308nm M308-FR-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 308nm M308-FR-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 280-340nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

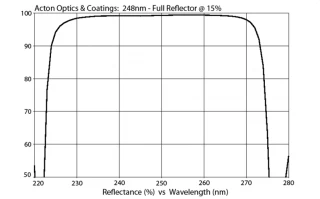

UV and Excimer Laser Mirror 248nm M248-FR-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 248nm M248-FR-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 248-248nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

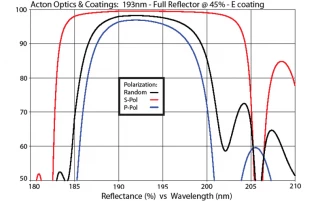

UV and Excimer Laser Mirror 193nm XL M193-FRXL45-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 193nm XL M193-FRXL45-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 193-193nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
UV and Excimer Laser Mirror 126nm M126-FR45-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 126nm M126-FR45-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 120-132nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
UV and Excimer Laser Mirror 126nm M126-FR45-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 126nm M126-FR45-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 120-132nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

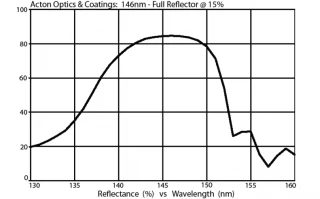

UV and Excimer Laser Mirror 147nm M147-FR-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 147nm M147-FR-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 142-150nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
UV and Excimer Laser Mirror 147nmM147-FR-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 147nmM147-FR-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 142-150nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
UV and Excimer Laser Mirror 147nm M147-FR45-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 147nm M147-FR45-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 140-152nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

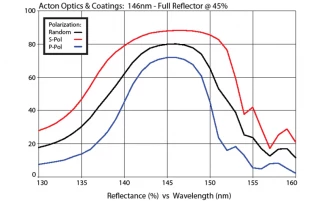

UV and Excimer Laser Mirror 147nm M147-FR45-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 147nm M147-FR45-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 140-152nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price

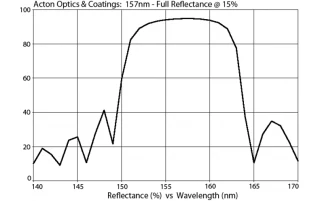

UV and Excimer Laser Mirror 157nm M147-FR45-1D-MB (1.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 157nm M147-FR45-1D-MB (1.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 152-163nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
UV and Excimer Laser Mirror 157nm M157-FR-2D-MB (2.0” Diameter)
Teledyne Acton Optics
Add to watch list
UV and Excimer Laser Mirror 157nm M157-FR-2D-MB (2.0” Diameter)
Compare
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and ...

Specifications
Substrate Material: UV Fused Silica
Wavelength Range: 152-163nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
Integrator Mirror
Kugler of America Ltd
Add to watch list
Integrator Mirror
Compare
Integrator mirrors change the normally rotationally symmetrical or elliptical beam profile of a laser in order to produce a sharp limitation of the beam intensity on the workpiece in one or two directions in space. A good homogenization of the intensity is striven for in the intermediate area. While two-dimensional ...

Specifications
Substrate Material: Custom
Wavelength Range: 1-1nm
Angle Of Incidence (AOI): -- deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
Mirror,Laser Mirror,HR Mirror, Partial Reflection Mirror, Gold Mirror,Silver Mirror
Photonchina
Add to watch list
Mirror,Laser Mirror,HR Mirror, Partial Reflection Mirror, Gold Mirror,Silver Mirror
Compare
Photonchina supplies a wide variety of mirrors, ranging from laser line mirrors, harmonic separator mirrors, high reflection (HR) mirrors, partial reflection mirrors and metallic coated mirrors. Wide selection of rectangular, round, elliptical, or custom shape mirrors with flat, spherical concave or convex and cylindrical surfaces ...

Specifications
Substrate Material: BK7, Supremax 33, Mo, Cu, Si, Metallic, Zerodur, Sapphire, Calcium Fluoride, IR Fused Silica, UV Fused Silica, Fused Silica, Custom
Wavelength Range: 190-4000nm
Angle Of Incidence (AOI): 0-50 deg
Flatness (Coated Surface): lambda/20, lambda/10, lambda/8, lambda/6, lambda/4
Surface Quality: 10-5 scratch-dig, 20-10 scratch-dig, 40-20 scratch-dig, 60-40 scratch-dig
Data Sheet
Inquire Price
193 nm Excimer Laser Mirrors For 0° Incidence MR1020
Alpine Research Optics (ARO)
Add to watch list
193 nm Excimer Laser Mirrors For 0° Incidence MR1020
Compare
These high performance mirrors are intended for general purpose beam steering tasks in ArF excimer laser based applications and systems.

Specifications
Substrate Material: Fused Silica
Wavelength Range: 187-200nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/10
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
193 nm Excimer Laser Mirrors For 0° Incidence MR1060
Alpine Research Optics (ARO)
Add to watch list
193 nm Excimer Laser Mirrors For 0° Incidence MR1060
Compare
These high performance mirrors are intended for general purpose beam steering tasks in ArF excimer laser based applications and systems.

Specifications
Substrate Material: Fused Silica
Wavelength Range: 187-200nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/10
Surface Quality: 10-5 scratch-dig
Data Sheet
Inquire Price
