TFM-12.7C05-1064 Laser Line Mirror 12.7mm Diameter 5mm Thick 1064nm Wavelength

OptoSigma Corp

Compare

These laser mirrors are designed for specific wavelength laser applications where low wavefront distortion, low scattering and high reflectivity are usually important. These narrowband reflectors are for several wavelengths and sizes.

Specifications
Substrate Material:	BK7
Wavelength Range:	1064-1064nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price

TFM-50.8C08-1064 Laser Line Mirror 50.8mm Diameter 8mm Thick 1064nm Wavelength

OptoSigma Corp

Add to watch list

Compare

These laser mirrors are designed for specific wavelength laser applications where low wavefront distortion, low scattering and high reflectivity are usually important. These narrowband reflectors are for several wavelengths and sizes.

Specifications
Substrate Material:	BK7
Wavelength Range:	1064-1064nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price

TFM-30C05-1064 Laser Line Mirror 30mm Diameter 5mm Thick 1064nm Wavelength

OptoSigma Corp

Add to watch list

Compare

These laser mirrors are designed for specific wavelength laser applications where low wavefront distortion, low scattering and high reflectivity are usually important. These narrowband reflectors are for several wavelengths and sizes.

Specifications
Substrate Material:	BK7
Wavelength Range:	1064-1064nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price

Broadband Dielectric HR Mirror 520-600nm

Sterling Resale Optics

Add to watch list

Compare

15 mm diameter dielectric mirror for visible use around 532nm-589nm. Works very well 532nm 45 degrees also589nm. Back side is finely frosted. Individually packaged. Made by IOS for OEM customer. Price is for one mirror.

Specifications
Substrate Material:	Custom
Wavelength Range:	520-600nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price

4\" Dielectric Mirror HR 633nm

Sterling Resale Optics

Add to watch list

$4\" Dielectric Mirror HR 633nm$

Compare

4\" Research Quality Zerodur Mirror for wavelengths ~600-676 nm from a canceled LLNL program. It measures a beefy 20.1 mm thick and in Pristine Condition!! The surface flatness was polished to better than 1/10 wave on S1. This program coated it for dye laser work. The plot provided is typical for Dye 45 ...

Specifications
Substrate Material:	Custom
Wavelength Range:	600-676nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price

4\" Zerodur Mirror HR 532nm 45 Deg

Sterling Resale Optics

Add to watch list

$4\" Zerodur Mirror HR 532nm 45 Deg$

Compare

4\" diameter zerodur mirror HR for 532nm 45 degrees. Coating extends to 3.7mm from edge. Better than 1/10 wave flat. Side 2 is clear.

Specifications
Substrate Material:	Custom
Wavelength Range:	532-532nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price

D-Shaped Mirror

Union Optic

Add to watch list

Compare

D-shaped mirror is always used to separate closely spaced light beams. The high reflective coating extends to the straight edge of the mirror within 0.05mm, and a portion of the substrate behind the straight edge is removed, these make D-shaped mirror is ideal for picking off one of two closely spaced light beams, and not affect the ...

Specifications
Substrate Material:	BK7, Fused Silica, Custom
Wavelength Range:	400-12000nm
Angle Of Incidence (AOI):	0-45 deg
Flatness (Coated Surface):	lambda/10
Surface Quality:	60-40 scratch-dig

Data Sheet

Inquire Price

Broadband Dielectric Mirror

Union Optic

Add to watch list

Compare

High Reflectivity, Ravg>99%, AOI 0-45degWide Working BandRoHS Compliant

Specifications
Substrate Material:	BK7, Fused Silica, UV Fused Silica, IR Fused Silica
Wavelength Range:	350-1550nm
Angle Of Incidence (AOI):	0-45 deg
Flatness (Coated Surface):	lambda/4
Surface Quality:	60-40 scratch-dig

Data Sheet

Inquire Price

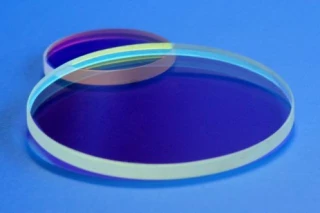

Dielectric Dual Laser Line Mirror

Union Optic

Add to watch list

Compare

High Reflectivity, R>99%@two wavelengthsHigh damage thresholdRoHS Compliant

Specifications
Substrate Material:	BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Custom
Wavelength Range:	527-1064nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/4
Surface Quality:	60-40 scratch-dig

Data Sheet

Inquire Price

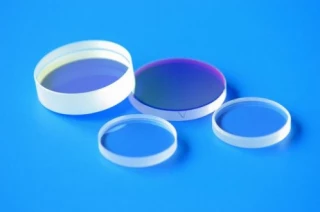

Dielectric Laser Line Mirror

Union Optic

Add to watch list

Compare

High reflectivity, R>99.5%High damage thresholdRoHS Compliant

Specifications
Substrate Material:	BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Custom
Wavelength Range:	260-1570nm
Angle Of Incidence (AOI):	0 deg
Flatness (Coated Surface):	lambda/4
Surface Quality:	60-40 scratch-dig

Data Sheet

Inquire Price

RMI Laser Line Mirrors - Supremax 33 - Zerodur

Rocky Mountain Instrument Co.

Add to watch list

Compare

Mirrors are used in a wide range of beam steering, focusing and collimating applications. RMAX Mirrors utilize multi-layer, dielectric thin films. Laser-Line RMAX Mirrors are designed for high reflectance at a single laser wavelength. High power coating designs are standard for select wavelengths. Substrates are available with ...

Specifications
Substrate Material:	Zerodur, Supremax 33
Wavelength Range:	193-193nm
Angle Of Incidence (AOI):	0 deg
Flatness (Coated Surface):	lambda/20, lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price

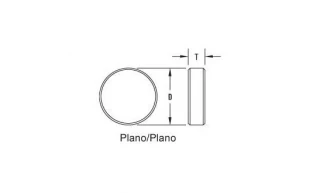

RMI Laser Line Mirrors - Si-Cu-Mo

Rocky Mountain Instrument Co.

Add to watch list

Compare

Mirrors are used in a wide range of beam steering, focusing and collimating applications. RMAX Mirrors utilize multi-layer, dielectric thin films. Laser-Line RMAX Mirrors are designed for high reflectance at a single laser wavelength. High power coating designs are standard for select wavelengths. Substrates are available with ...

Specifications
Substrate Material:	Si, Cu, Mo
Wavelength Range:	193-193nm
Angle Of Incidence (AOI):	45 deg
Flatness (Coated Surface):	lambda/20
Surface Quality:	40-20 scratch-dig

Data Sheet

Inquire Price

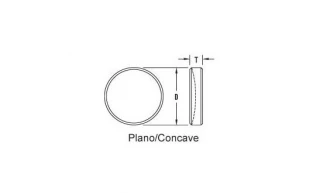

RMI Laser Line Mirrors - CaF2

Rocky Mountain Instrument Co.

Add to watch list

Compare

Mirrors are used in a wide range of beam steering, focusing and collimating applications. RMAX Mirrors utilize multi-layer, dielectric thin films. Laser-Line RMAX Mirrors are designed for high reflectance at a single laser wavelength. High power coating designs are standard for select wavelengths. Substrates are available with ...

Specifications
Substrate Material:	Calcium Fluoride
Wavelength Range:	193-193nm
Angle Of Incidence (AOI):	0 deg
Flatness (Coated Surface):	lambda/4, lambda/2
Surface Quality:	20-10 scratch-dig

Data Sheet

Inquire Price

RMI Laser Line Mirrors - BK7 - FS - UVFS

Rocky Mountain Instrument Co.

Add to watch list

Compare

Mirrors are used in a wide range of beam steering, focusing and collimating applications. RMAX Mirrors utilize multi-layer, dielectric thin films. Laser-Line RMAX Mirrors are designed for high reflectance at a single laser wavelength. High power coating designs are standard for select wavelengths. Substrates are available with ...

Specifications
Substrate Material:	BK7, Fused Silica, UV Fused Silica
Wavelength Range:	193-193nm
Angle Of Incidence (AOI):	0 deg
Flatness (Coated Surface):	lambda/20, lambda/10
Surface Quality:	10-5 scratch-dig

Data Sheet

Inquire Price
