UV and Excimer Laser Mirror 172nm M172-FR45-1D-MB (1.0” Diameter)
Description
Acton Optics offers a range of Excimer & UV Laser Mirrors, precision-engineered multilayer dielectric-coated mirrors designed specifically for high-energy excimer lasers. These mirrors provide exceptional reflectance while meeting stringent high damage threshold requirements. With over forty years of expertise in designing and developing excimer coatings, Acton can customize coatings to align with your spectral, polarization, and application specifications. The company maintains a ready stock of beam-turning and normal-incidence mirrors, ensuring prompt delivery to your facility.
These Excimer optics are available in volume production, ensuring competitive pricing. Acton also provides fully assembled, ready-to-install optical assemblies, crafted by skilled technicians within their clean room facility.
UV and Excimer Laser Mirror 172nm M172-FR45-1D-MB (1.0” Diameter)
Specifications |
|
|---|---|
| Substrate Material: | UV Fused Silica |
| Wavelength Range: | 160-180nm |
| Angle Of Incidence (AOI): | 45 deg |
| Flatness (Coated Surface): | lambda/20 |
| Surface Quality: | 10-5 scratch-dig |

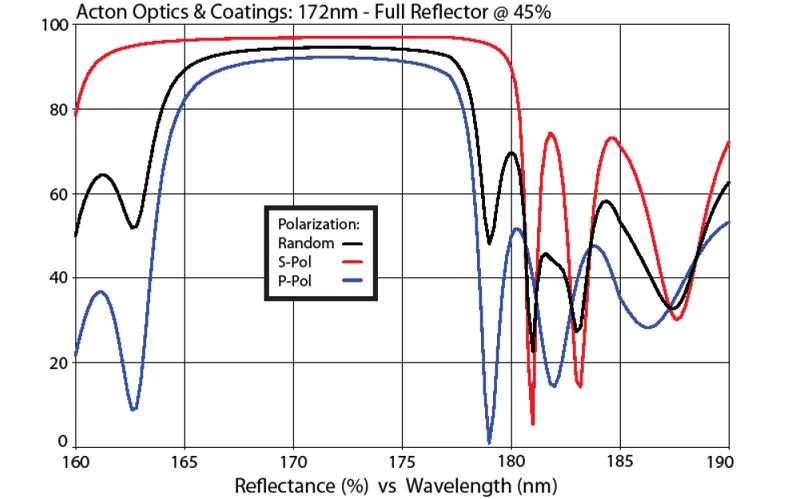

| Reflectivity (Rs, Rp): | ≥ 90% % |
| Diameter: | 25.4 mm |
| Thickness: | -- mm |
| Center Wavelength: | 172 nm |
Features
- High Reflectance: Exceptional mirror coatings ensure high reflectance for efficient laser performance
- Customization: Coatings can be tailored to match specific spectral, polarization, and application requirements
- Damage Threshold: Designed to meet high damage threshold requirements, ensuring longevity and reliability
- Stock Availability: Ready stock of beam-turning and normal-incidence mirrors for swift delivery
- Optical Assemblies: Acton offers ready-to-install optical assemblies produced by highly trained technicians
- Versatile Applications: Suitable for a wide range of applications requiring high-energy excimer lasers
Applications
- High-energy Excimer Lasers
- Laser Systems with Stringent Reflectance Requirements
