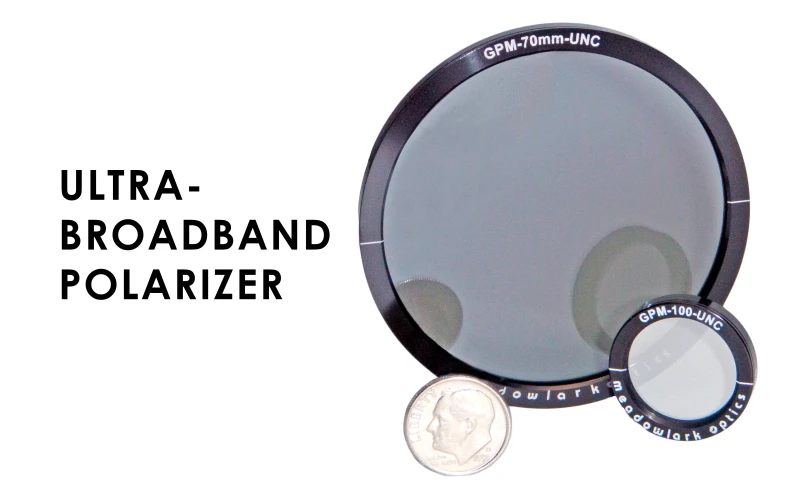

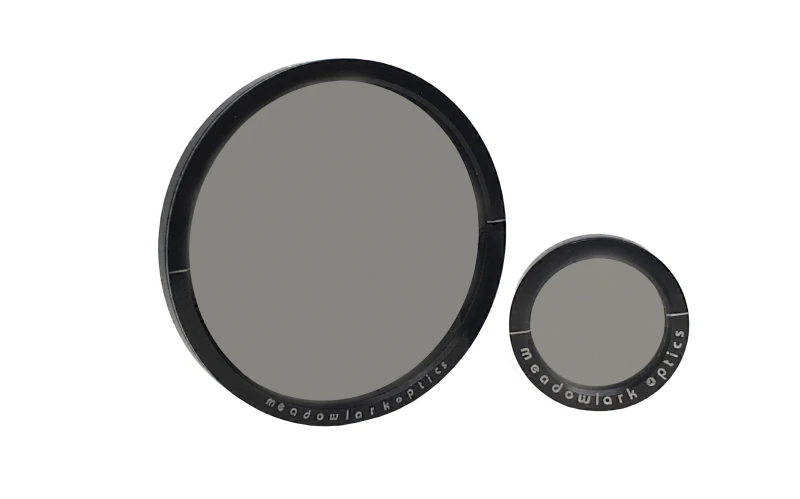

Meadowlark Optics Ultra-Broadband Polarizer (GPM)
Description
Meadowlark Optics now offers an extremely broadband polarizer solution with up to 1,000,000:1 contrast ratio. Our new Ultra Broadband Polarizer performs well over a wavelength range of 300 to 2700 nm, rivaling the span of a Glan-Thompson calcite polarizer in a thin, compact design.
The proprietary composition of the Ultra Broadband Polarizer allows for an unprecedented width of spectral range at a fraction of the cost of other competing polarizers. This cost savings is coupled with a mount thickness of only 0.182” and high contrast over the entire range from UV to MWIR. Its wide acceptance angle, remarkably larger possible clear aperture, and compact, light-weight design allow for versatility in complex or space-limited optical setups. Ask about Meadowlark’s wide range of custom options available.
Meadowlark Optics Ultra-Broadband Polarizer (GPM)
Specifications |
|
|---|---|
| Substrate Material: | Fused Silica |
| Polarizing Material: | Other |
| Shape: | Round |
| Size: | 25.4 mm |

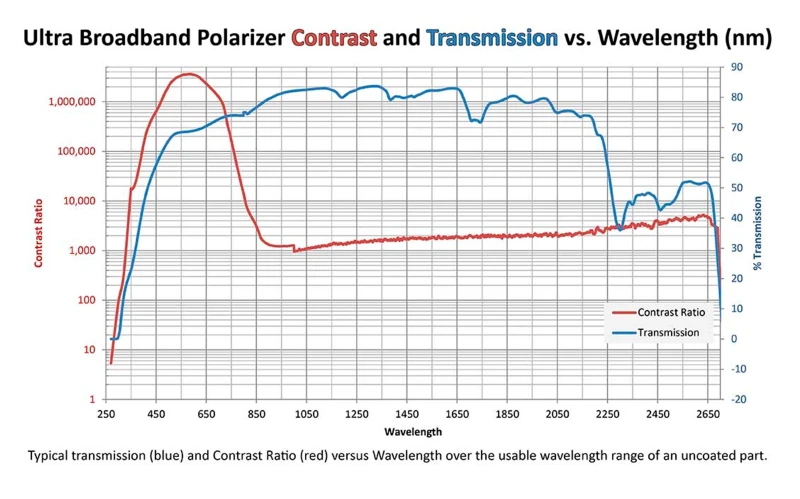

| Wavelength Range: | 300-2700nm |
| Max Extinction Ratio: | >= 100000:1 |
| Surface Flatness: | Not Available |
| Surface Quality (Scratch-Dig): | 80-50 |
Features
- Extremely broadband
- Wide acceptance angle
- Custom sizes and shapes
- Excellent transmitted contrast
- Thin, compact design
