Description

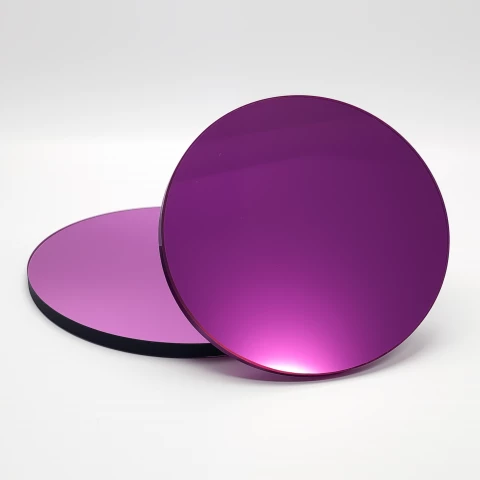

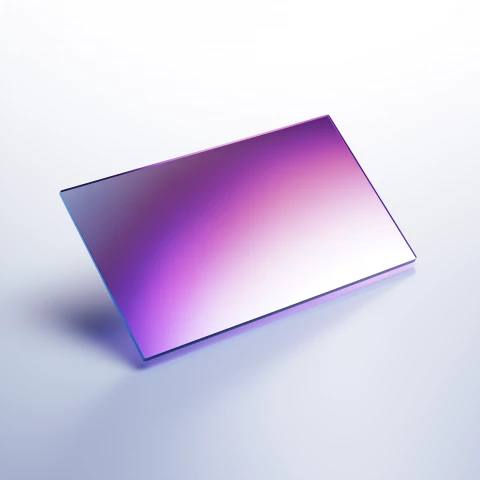

TFP polarizer separates polarization into its orthogonal components (s&p). Wide range of shapes, sizes, extinction ratios, LIDT and surface parameters are available.
Thin Film Plate Polarizers (TFP) - Brewster Type, 45 deg or Custom Angle - Alien Photonics
Alien Photonics
Specifications |
|
|---|---|
| Substrate Material: | N-BK7, Fused Silica, UVFS, Calcium Fluoride, Sapphire, Zinc Selenide, Schott Glass B270, Custom, Other |
| Polarizing Material: | Custom, Other |
| Shape: | Round, Square, Rectangle, Custom |
| Size: | 1-300 mm |
| Wavelength Range: | 193-3500nm |
| Max Extinction Ratio: | >= 3000:1, >= 1000:1, >= 100:1, >= 10:1 |
| Surface Flatness: | <= Lambda/10, <= Lambda/6, <= Lambda/3, <= Lambda/2 |
| Surface Quality (Scratch-Dig): | 10-5, 20-10, 40-20, 60-40, 80-50 |
Features
- High LIDT
- High Extinction ratio
- Brewster type, 45 deg and custom angle options available
Applications
- Polarization-dependent optical switches
- Optical modulators
- Ultrafast (fs) lasers
- Nd:YAG laser polarizer: 1064, 532, 355, 266 nm
- Yb:YAG laser polarizer: 1030, 515, 343 nm
- Ti:Sapphire laser polarizer: 800, 400, 267 nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Lithuania
-
Sold by:
Alien Photonics -
On FindLight:
since 2024
Frequently Asked Questions
From 120 EUR/pc for small batches. Price may vary based on several factors (batch size, required quality, etc.)
If we have TFP in stock, it takes about 1-3 days to ship it. If Alien Photonics needs to produce the TFP it could take up to 4-6 weeks depending on complexity.
