Wollaston Polarizer, Rochon Polarizer, Wollaston Prism, BBO/Calcite/YVO4/Quartz
Description
Photonchina’s wollaston polarizer can separate an incident beam into two rays: extraordinary and ordinary ray with a deviation angle which is dependent on wavelength. Both rays are transmitted through the other surface.
Specifications:
Material: a-BBO, Calcite ,YVO4,Quartz
Wavelength Range:
a-BBO:190-3500 nm, Calcite:350-2300 nm, YVO4:400-5000 nm,Quartz:200-2300 nm
Extinction Ratio:
Calcite,Quartz:<5x10-5; a-BBO,YVO4:<5x10-6
Parallelism:<1 arc Min
Surface Quality:20/10
Beam Deviation:< 3 arc minutes
Wavefornt Distortion:λ/4@632.8nm
Damage Threshold:>500 MW/cm2
Coating:Single MgF2
Mount:Black Anodized Aluminium
Wollaston Polarizer, Rochon Polarizer, Wollaston Prism, BBO/Calcite/YVO4/Quartz
Specifications |
|
|---|---|
| Material: | Calcite, a-BBO, YVO4, Custom |
| Wavelength Range: | 190-5000nm |
| Max Extinction Ratio: | >= 100,000:1, >= 10,000:1, >= 1,000:1, >= 100:1 |
| Transmitted Wavefront Error: | <= Lambda/20, <= Lambda/10, <= Lambda/6, <= Lambda/4 |
| Surface Quality (Scratch-Dig): | 10-5, 20-10, 40-20, 60-40 |
| Damage Threshold: | >500 MW/cm2 |
| Clear Aperture: | 6-20mm |
| Mount: | Black Anodized Aluminium |
Features
ROCHON POLARIZERS

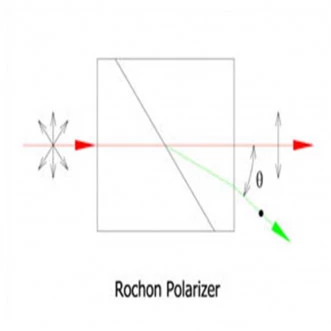

Rochon polarizer is made of two birefringent material prisms cemented or optical contacted together. The Rochon prism was invented by and is named after Abbé Alexis Marie Rochon. It is in many ways similar to the Wollaston prism, but the ordinary ray passes through the prism undeviated. Any separation angle can be designed according to request of customers.
Features
• Multiple Polarization Materials Available
• Ordinary Rays Pass Through Undeviated
• Extraordinary Rays Deviate
Photonchina Specifications：
Material: a-BBO, Calcite, YVO4,Quartz,MgF2
Wavelength Range: a-BBO：190-3500nm,YVO4：500-4000nm
Quartz：200-2300nm，Calcite:350-2300nm
Extinction Ratio: Quartz：<5*10-5，α-BBO ,YVO4：<5*10-6,MgF2：<10-4
Surface Quality: 20 / 10
Beam Deviation: < 3 arc minutes
Wavefront Distortion: λ /4@633nm
Damage Threshold: >500 MW/cm2
Coating: Single MgF2
Mount: Black Anodized Aluminium
1. a-BBO Rochon Polarizer
C.A. fa(mm) O.D. fd(mm) L ¯0.1(mm)
6.0 15.0 15.0
8.0 25.4 17.0
10.0 25.4 19.0
15.0 30.0 23.0
20.0 38.0 29.0
2. YVO4 Rochon Polarizer
C.A. fa(mm) O.D. fd(mm) L ¯0.1(mm)
6.0 15.0 15.0
8.0 25.4 17.0
10.0 25.4 19.0
15.0 30.0 23.0
20.0 38.0 25.0
3. Quartz Rochon Polarizer
C.A. fa(mm) O.D. fd(mm) L ¯0.1(mm)
6.0 15.0 20.0
8.0 25.4 24.0
10.0 25.4 28.0
15.0 30.0 38.0
20.0 38.0 48.0
4. MgF2 Rochon Polarizer
C.A. fa(mm) O.D. fd(mm) L ¯0.1(mm)
6.0 15.0 14.0
8.0 25.4 18.0
10.0 25.4 18.0
15.0 30.0 38.0
20.0 38.0 48.0
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
A wollaston polarizer is an instrument that can separate an incident beam into two rays: extraordinary and ordinary ray with a deviation angle which is dependent on wavelength.
Photonchina's wollaston polarizer is made of a-BBO, Calcite, YVO4, and Quartz.
The extinction ratio of Calcite and Quartz in photonchina's Rochon polarizer is <5x10-5.
The damage threshold of photonchina's wollaston polarizer is >500 MW/cm2.
The separation angle of Yvo4 wollaston polarizer is 20° @1550nm.
