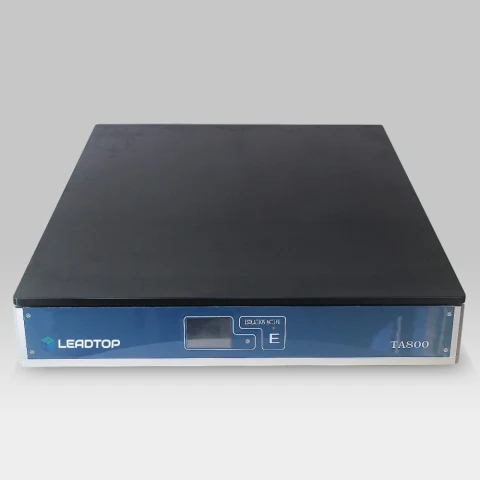

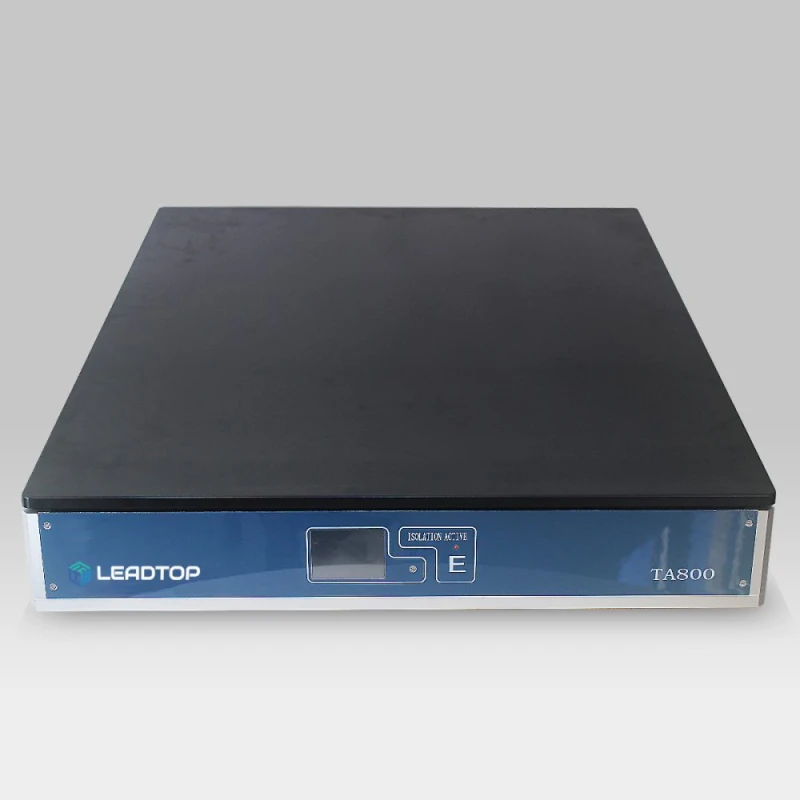

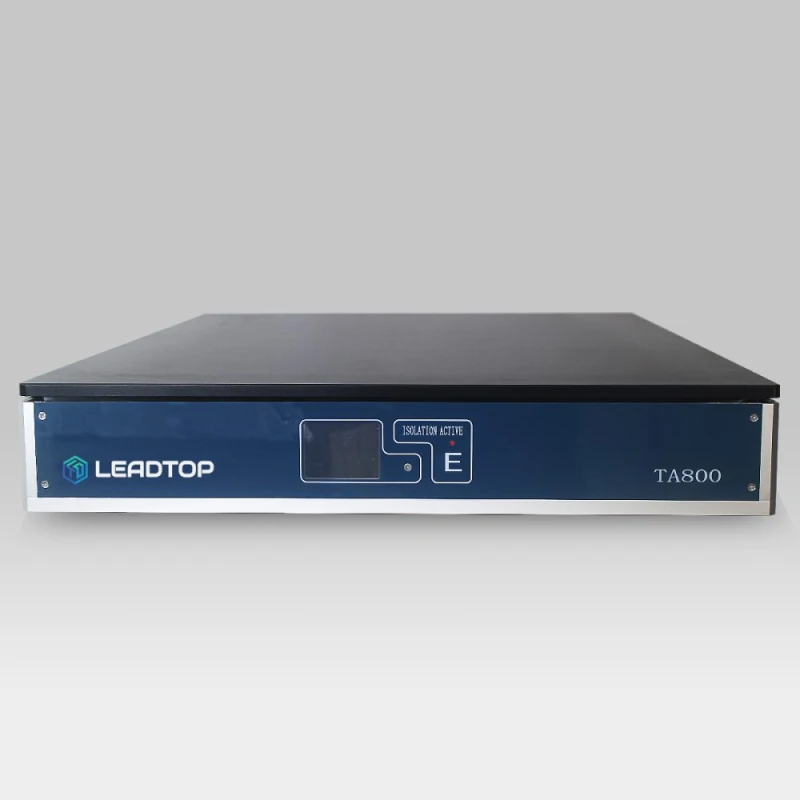

TA-800 Active Damping Vibration Isolation Optical Platform | Size 800X600X115mm | Load Capacity 220kg
Description
The TA800 Active Vibration Isolating Optical Table is a state-of-the-art solution designed for precision and stability in vibration-sensitive environments. Constructed from high-strength aluminum alloy with a honeycomb core structure, it combines durability with lightweight efficiency.
This advanced system features high-precision voice coil actuators, Hall height sensors, acceleration sensors, and a sophisticated control module that work seamlessly to provide exceptional vibration isolation.
Equipped with high-precision signal filters, a DSP controller, and a high-speed control system, the TA800 processes vibration signals with unmatched accuracy. Eight acceleration transducers detect environmental disturbances across six degrees of freedom (6 DOF), and the system amplifies, converts, and processes these signals to drive voice coil actuators that generate counterforces, effectively canceling vibrations.
With its ability to achieve superior vibration isolation, the TA800 is an ideal choice for laboratories and industries requiring stable and precise optical setups.
TA-800 Active Damping Vibration Isolation Optical Platform | Size 800X600X115mm | Load Capacity 220kg
Specifications |
|
|---|---|
| Isolation (dynamic): | 0.7-200Hz |
| Max Load: | 220 kg |
| Transmissibility Above 10Hz: | 98% dB |
Features
- Rated voltage: 220V
- Power input: 50W
- Operating temperature: 5ºC~40ºC
- Response time: 10-20ms
- Working environment: Place on a hard surface and flatness of ≤0.5mm/
- Vibration isolation direction: Six degrees of freedom force compensation, automat
- Load capacity: 10kg~220kg
- Platform size: 800mm×600mm×115mm
- Vibration isolation performance: >5Hz,90%; >10Hz,98%
Applications
- Microscopes and electric microscopes
- Small size optical devices
- Roundness measurement Instruments
- Other devices that requires high vibration isolation efficiency
