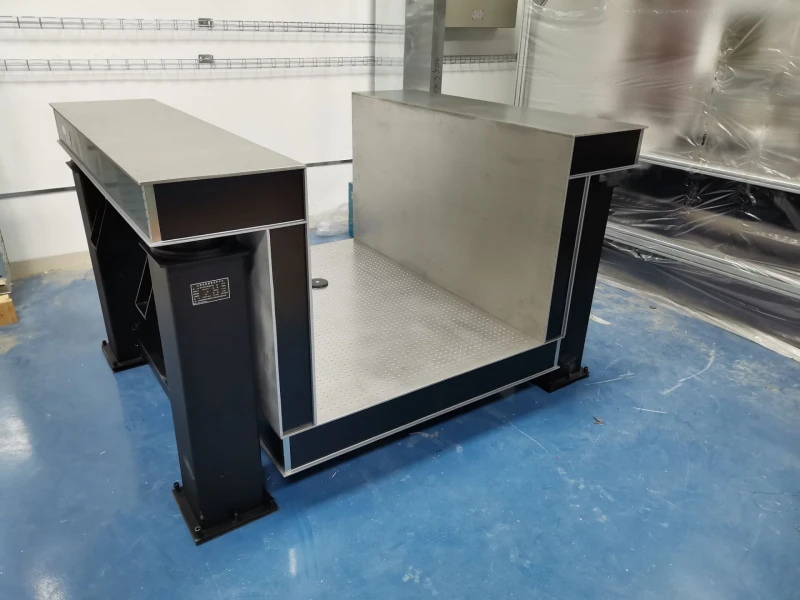

MOT-Y Series Coupled Optical table
Description
This advanced Vibration Isolation Table is engineered for precision and stability in environments requiring minimal vibration interference. Designed with robust materials and cutting-edge isolation technology, this table is ideal for applications in laboratories, research facilities, and industrial settings.
This Vibration Isolation Table provides unparalleled performance in maintaining a stable, vibration-free environment, making it a critical asset for applications demanding high precision and reliability.
MOT-Y Series Coupled Optical table
Specifications |
|
|---|---|
| Height Of Vibration Isolation System: | 800 mm |
| Vertical Movement Range: | ±10 mm |
| Precision Of Automatic Level Control: | <= +/-0.1mm mm |
| Vertical Resonant Frequency: | 1.0-2.0 Hz |
| Horizontal Resonant Frequency: | 1.0-1.5Hz Hz |
| Air Supply Pressure : | 0.2-0.4MPa Bar |
Features
- Inherent Frequency：1.0-2.0Hz, vertically; 1.0-1.5Hz, horizontall
- Vibration Isolation Structure：Air springs & pendulum rod
- Leveling Type：Automatic
- Vibration Damping Type：Porous quasi-laminar flow damping element with diffuse
- Total Table Height：800mm
- Working Air Pressure ：0.2-0.4MPa
- Compressed Air Source：Silent compressor (noise level) <50dB
- Vibration Isolating Efficiency：8692%@5Hz, 9095%@10Hz, vertically 8494%@5Hz, 9298%@10Hz, horizontally
- Re-leveling Accuracy：±0.1mm
- Table Top Flatness：≤0.05mm/m²
- Surfaced Roughness：≤0.8μm, matt surface finis
- Isolator Height Adjustment Range：±10mm
- Mounting Holes：M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm
- Top Skin：5mm
- Bottom Skin：4mm
- Material：Stainless Steel
Applications
1. Laboratory and Research:
- High-precision measurements and experiments.
- Microscopy (optical, electron, and atomic force).
- Spectroscopy and interferometry setups.
2. Industrial and Manufacturing:
- Calibration and testing of sensitive equipment.
- Precision machining and laser cutting processes.
- Semiconductor manufacturing and inspection.
3. Medical and Biomedical Fields:
- Operating sensitive diagnostic tools (e.g., MRI, CT, or scanning equipment).
- Handling delicate biological or chemical analysis procedures.
4. Academic and Educational Institutions:
- Training labs for advanced physical, chemical, or material sciences.
- Demonstration of vibration-sensitive phenomena.
5. Optics and Photonics:
- Alignment and testing of optical components.
- Laser-based experiments or fabrication systems.
6. Electronics and Microelectronics:
- Assembly and testing of microchips and electronic components.
- Noise-sensitive device calibration.
7. Environmental and Earth Sciences:
- Seismology and geophysical instrument calibration.
- Noise isolation in field laboratories for environmental research.
