IMU/AHRS-5501 INDUSTRIAL GRADE AHRS
Description

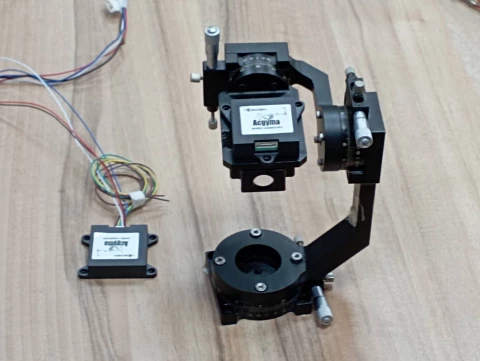

AHRS-AGM5501 is a high-performance navigation attitude reference system (AHRS) based on the technology of micro-electro-mechanical system (MEMS). The product is designed for drones, robots, autonomous vehicles with the requirement of not being affected by magnetic field. This feature is particularly important in applications such as autonomously guided flying objects, moving drones, ROV, unmanned ground vehicles, aircraft avionics, industrial robotics, survey mapping drones, underwater monitoring robots, static bridge gap/tilt monitoring, stability platform and road evenness monitoring when carrying out an autonomous task.
The AHRS-AGM5501 contains a high-performance 3-axialgyroscope, 3-axial accelerator and 3-axial magnetometer, using Newton's deepest search time-varying control algorithm, extended Kalman filtering and robust adaptive filtering algorithms for its utmost reliability and accuracy. In inertial control, guidance and navigation applications, AHRS-AGM5501’s internal isolation design and independent signal filtering system greatly inhibits the interference of external environment factors. All sensors in the system, before full temperature domain calibration, configure special dynamic compensation algorithms, ensuring an output accurate attitude information, and making the product that meets most of the critically demanding users.
IMU/AHRS-5501 INDUSTRIAL GRADE AHRS
Features
- The world's leading filtering, automatic calibration and compensation algorithms
- The product has been tested, and the performance is reliable
- Small volume, low power consumption, high accuracy, super long life and excellent consistency
- Optional RS-485 / RS-422, CAN-OPEN, and UART interface protocols
- The device has a range of user-configurable options to select the output data rate
- Applicable applications include industrial and agricultural precision, vehicle, measurement, platform control and motion compensation
Applications
- Large Truck-Assisted Driving Technology
- AGV Trolley, Forklift Truck
- Surveying and Mapping Solution
- Unmanned Driving
- Industrial Vehicles
- Plumbing Robot
- Unmanned Ships
- Bridge Safety Monitor
