Forensic Laser Light Source System OR-GJG4000
Description

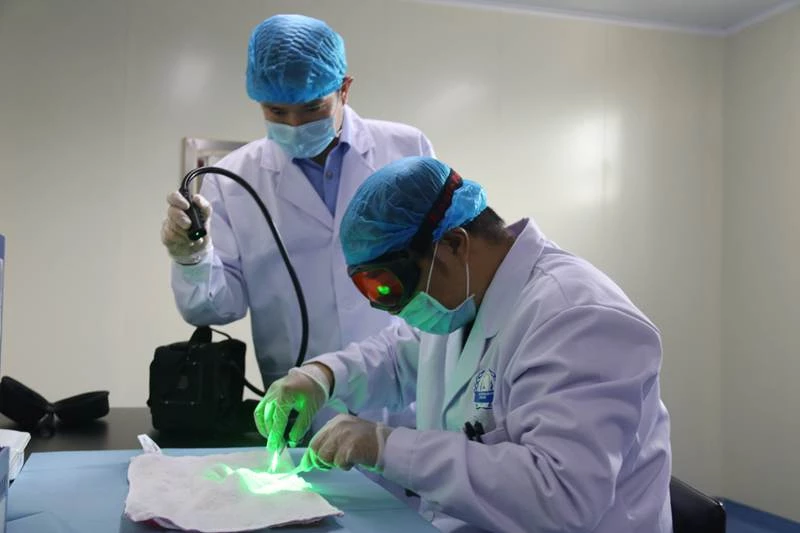

The OR-GJG4000 Forensic Laser System is an advanced, versatile tool meticulously engineered for the precise illumination and detection of forensic evidence. Suitable for both field and laboratory environments, this system employs blue and green laser light sources to reveal evidence through fluorescence or enhanced contrast. Fluorescence is achieved when materials absorb light of one color and re-emit it as a different color, making it easier to detect various types of evidence. The OR-GJG4000 is particularly effective for identifying fingerprints, biological fluids, fibers, and gunshot residues on various surfaces.

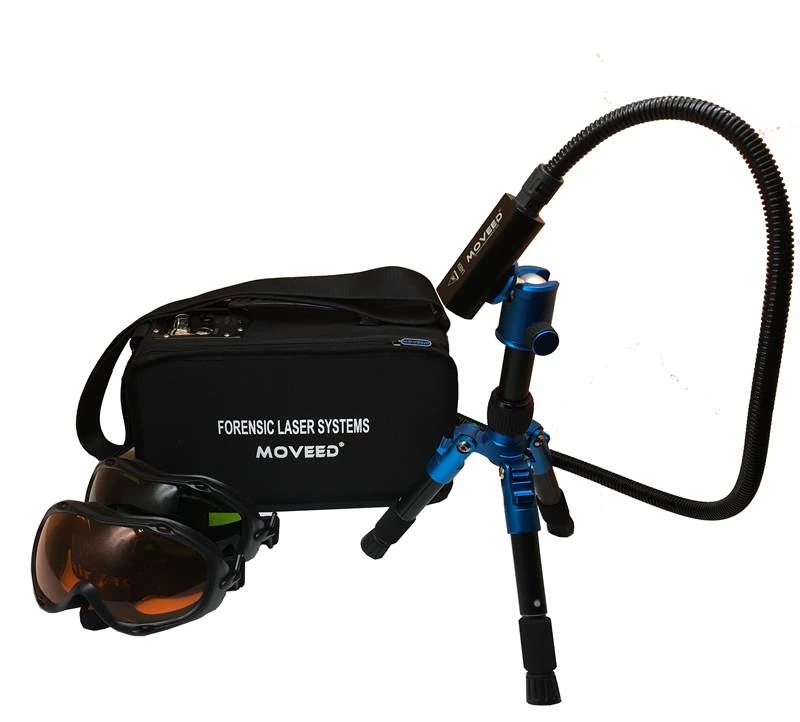

This forensic laser system features models that cater to specific wavelength needs, including green laser (532nm), blue laser (445nm), and a combination of both (CSS). It is equipped with built-in Li-ion batteries for portability and offers DC operation for continuous use. The system delivers an even light beam output, with an adjustable power intensity to suit different forensic tasks. It includes a removable safety key, tripod mount, and comes with a carrying canvas bag for ease of transport.
Designed for both ease of use and robust performance, the OR-GJG4000 enhances contrast and detects fluorescence reactions with high precision, making it an indispensable tool for forensic professionals. Its integration of multiple wavelengths, optical fiber, and user-friendly handling ensures reliable and accurate results, whether in the lab or at a crime scene.
Forensic Laser Light Source System OR-GJG4000
Specifications |
|
|---|---|
| Wavelengths & Power: | 445nm: 7-8W, 532nm: 4W, CSS: 7-8W |
| Illuminating Beam Size: | DIA. at 0.5m: ≥ 7CM, DIA. at 2m: ≥ 28CM |
| Power Supply: | 220V charger for lithium-ion battery or DC16.8V lithium battery pack |
| Batteries Built-in Li-ion Batteries, Capacity:: | 12 Ah |
| Charging Current: | DC16.8 V |
| Output Mode: | 400μm multimode optical fiber, Fiber length: 1.3m |
| System Size: | L300W125H170mm |
| Weight: | JG4000A/B: ≤3Kg, JG4000H: ≤6Kg |
Features
- Designed for laboratory and field operations
- Equipped with built-in Li-ion batteries for portable use
- Supports DC operation for continuous use
- Delivers an even light beam output for consistent illumination
- Integrates three wavelengths lasers, optical fiber, operated handle, and carrying canvas bag
- Removable safety key for secure operation
- Tripod mount on the underside of the operated handle for stable positioning
- Adjustable power intensity to suit various applications
Applications
- Detection of fingerprints on various surfaces (metal, plastic mat, duplicating paper)
- Identification of biological evidence such as saliva, seminal stains, bloodstains, and urine traces
- Examination of fibers, bonesnap, gunshot residue on textiles, and more
- Enhancing contrast or detecting fluorescence reactions in forensic materials
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The OR-GJG4000 Forensic Laser System is used for the illumination and detection of forensic evidence in both field and laboratory settings. It reveals evidence through fluorescence or enhanced contrast, helping to identify fingerprints, biological fluids, fibers, and gunshot residues on various surfaces.
The OR-GJG4000 supports three main wavelengths: OR-GJG4000A (green laser at 532nm), OR-GJG4000B (blue laser at 445nm), and OR-GJG4000H (a combination of green at 532nm and blue at 445nm, along with CSS which is a mixture of 532nm and 445nm).
Fluorescence detection works by illuminating a material with laser light of one color (blue or green), which then absorbs this light and re-emits it as a different color. This fluorescence makes the evidence more visible and easier to detect.
Key features of the OR-GJG4000 include its design for both lab and field use, built-in Li-ion batteries for portability, DC operation capability, even light beam output, integration of three wavelengths, optical fiber operation, removable safety key, tripod mount on the handle, and adjustable power intensity.
The OR-GJG4000 operates on a 220V charger for the lithium-ion battery or a DC16.8V lithium battery pack. The built-in Li-ion batteries have a capacity of 12Ah.
The illuminating beam size specifications are as follows: Diameter at 0.5m is greater than or equal to 7cm, and Diameter at 2m is greater than or equal to 28cm.
The OR-GJG4000 is highly portable, designed with built-in Li-ion batteries and a lightweight, ergonomic handle. It also includes a carrying canvas bag for easy transportation.
The OR-GJG4000 can detect a wide range of evidence types, including fingerprints (on metal surfaces, plastic mats, and duplicating paper), saliva, seminal stains, bloodstain traces, urine traces, fibers, bone snap, and gunshot residues on textiles.
Yes, the OR-GJG4000 is designed for ease of use with features like a removable safety key, tripod mount, and adjustable power intensity, making it user-friendly for both novice and experienced forensic professionals.
