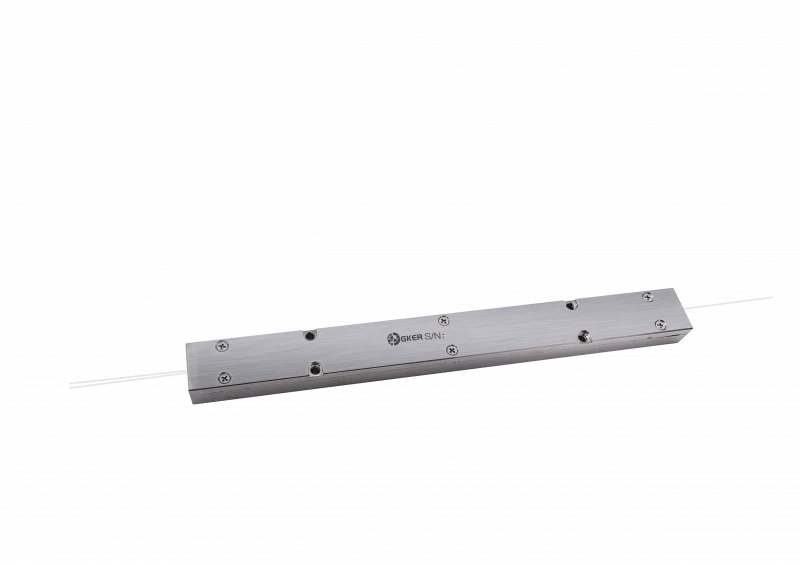

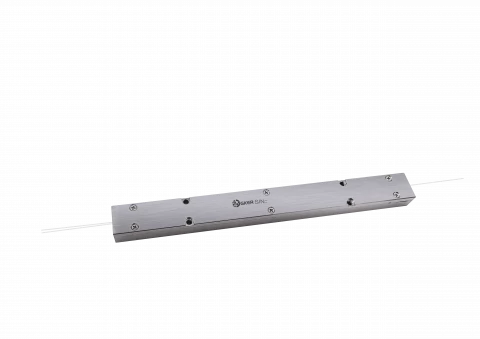

(1+1)×1 Multimode Pump and Signal Combiner (MMPC Series)
Description
The (1+1)×1 Multimode Pump & Signal Combiner from the MMPC Series is an advanced optical device designed to enhance high power fiber laser and EDFA (Erbium-Doped Fiber Amplifier) systems.
Engineered with cutting-edge technology, this combiner ensures superior power transfer efficiency and wavelength insensitivity, making it ideal for demanding optical applications. It features a robust construction with advanced pulling and packaging techniques that guarantee reliable and consistent performance even under extreme conditions.
The combiner supports custom configurations, enabling tailored solutions to meet unique application requirements. Whether for high power fiber lasers, pump combiners, or CATV amplifiers, the MMPC Series delivers exceptional performance and reliability.
(1+1)×1 Multimode Pump and Signal Combiner (MMPC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1550 nm |
| Power Handling: | > 10W |
| Return Loss: | 50 dB |
| Product Type: | (1+1)×1 |
| Pump Wavelength Range: | 900 - 1000 nm |
| Signal Wavelength Range: | 1550 nm |
| Fiber Type For Input (Pump Channel): | 105/125 (0.15 NA or 0.22 NA) |
| Fiber Type For Input (Signal Channel): | 6/125 DCF, 10/125 DCF |
| Fiber Type For Output: | 6/125 DCF, 10/125 DCF |
| Signal Channel Insertion Loss: | < 0.50 dB |
| Typ. Pump Efficiency: | 94 % |
| Min. Pump Efficiency: | 92 % |
| Max. Input Pump Power: | 1 × 10 or 1 × 30 W |
Features
- High Power Transfer Efficiency: Ensures optimal performance by minimizing power loss, crucial for high-demand optical applications
- Wavelength Insensitivity: Operates effectively across a broad wavelength range, enhancing versatility and applicability in various systems
- Advanced Pulling and Packaging Techniques: Employs sophisticated manufacturing processes to ensure durability and consistent high performance
- Custom Configurations Available: Offers flexibility to tailor the combiner to specific application needs, providing bespoke solutions for diverse requirements
- High Power Capability: Capable of handling high power inputs, making it suitable for powerful fiber laser systems and EDFAs
- Low Signal Channel Insertion Loss: Maintains low insertion loss (<0.50 dB) to ensure efficient signal transmission
- Superior Pump Efficiency: Typical pump efficiency of 92%, ensuring effective power utilization
- Wide Operating Temperature Range: Designed to operate reliably within a temperature range of -40 to +85°C, suitable for various environmental conditions
- Compact Package Dimensions: Available in compact package sizes (P1 and P2) for easy integration into existing systems
Applications
- High Power Fiber Laser Systems: Enhances the efficiency and output power of high-power fiber lasers, crucial for industrial and medical applications
- Pump Combiner with Signal Transfer: Combines pump and signal paths in a single device, simplifying system design and improving performance
- High Power EDFA (Erbium-Doped Fiber Amplifier): Amplifies optical signals with high efficiency, essential for long-distance optical communication
- CATV Amplifiers: Improves signal quality and power in cable TV systems, ensuring high-quality transmission
- Optical Network Systems: Supports high power optical networks by providing efficient power and signal combining
- Industrial Laser Applications: Suitable for various industrial laser processes that require high power and precise control
- Scientific Research: Used in experimental setups requiring high power and stable optical signals
