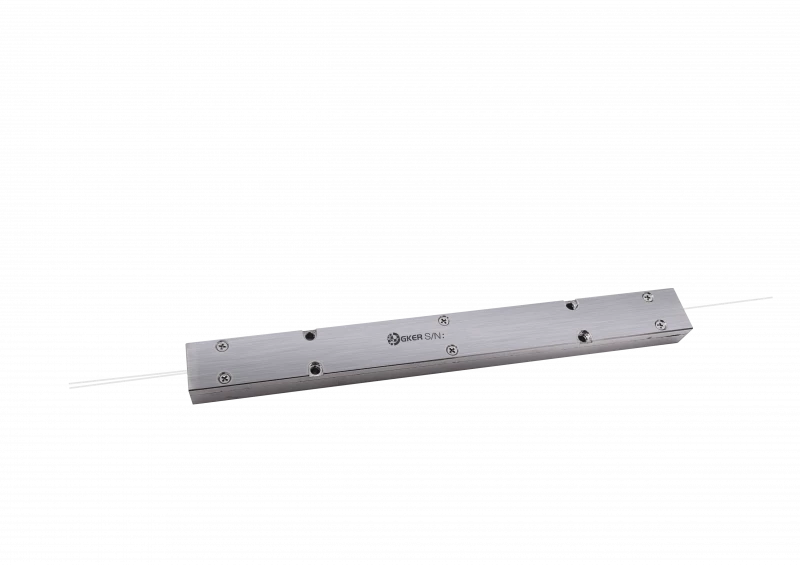

(1+1)×1 PM Pump and Signal Combiner (PMMPC Series)
Description
The (1+1)×1 PM Pump & Signal Combiner (PMMPC Series) represents the pinnacle of optical fiber technology, offering unparalleled performance in combining the power from PM fiber lasers while ensuring exceptional signal transfer efficiency. Crafted with precision engineering, this combiner boasts a wide wavelength range, making it adaptable to diverse applications across various industries.
Featuring advanced coupling efficiency and a proprietary fiber tapering technique, the PMMPC Series is optimized for high-power fiber laser systems, where precise signal control is paramount. Its customizable configurations cater to specific requirements, ensuring seamless integration into existing setups or the development of cutting-edge optical systems.
With minimized signal channel insertion loss and high pump efficiency, this combiner enables seamless operation even under demanding conditions, delivering reliable performance in critical applications. From PM fiber amplifiers to optical fiber communications and beyond, the versatility of the PMMPC Series makes it an indispensable tool for researchers, engineers, and professionals seeking unparalleled optical performance.
Whether deployed in research laboratories, industrial manufacturing facilities, or telecommunications networks, the (1+1)×1 PM Pump & Signal Combiner from the PMMPC Series stands as a testament to innovation, reliability, and precision in optical fiber technology.
(1+1)×1 PM Pump and Signal Combiner (PMMPC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1064, 1550 nm |
| Power Handling: | > 1W |
| Return Loss: | 50 dB |
| Product Type: | PM (1+1)×1 |
| Pump Wavelength Range: | 900 - 1000 nm |
| Signal Wavelength Range: | 1060, 1550 nm |
| Fiber Type For Input (Pump Channel): | Nufern 105/125 (0.15 NA, or 0.22 NA) |
| Fiber Type For Input (Signal Channel): | PM 980, PM 1550, PM-6/125 DC, or PM-8/125 DC |
| Fiber Type For Output: | PM-6/125 DC, or PM-8/125 DC |
| Signal Channel Insertion Loss: | <0.5 dB |
| Min. Pump Efficiency: | 90 % |
| Max. Input Pump Power: | 1 × 10 or 1 × 30 W |
| Package Dimensions: | P1: 50 (L) × 5 (W) × 5 (H) or P2: 70 (L) × 12 (W) × 8 (H) mm |
Features
- High Coupling Efficiency: Ensures optimal power transfer between pump and signal channels, maximizing system performance
- Wide Wavelength Range: Accommodates various wavelengths, offering flexibility for different applications and laser sources
- Proprietary Fiber Tapering Technique: Utilizes advanced tapering methods to enhance signal integrity and reduce losses
- Custom Configurations Available: Tailored solutions to meet specific project requirements, providing versatility and adaptability
- Minimized Signal Channel Insertion Loss: Maintains signal fidelity by reducing losses during transmission, ensuring accurate data transfer
- High Pump Efficiency: Efficiently combines pump power while minimizing energy wastage, enhancing overall system efficiency
Applications
- PM Fiber Lasers: Ideal for high-power PM fiber laser systems, ensuring precise control and efficient power transfer
- Pump Combiner with PM Signal: Enables seamless integration of pump and signal channels in fiber laser amplifiers, ensuring optimal performance
- Multi-Kilowatt Fiber Lasers: Suitable for high-power fiber laser applications, such as materials processing, laser cutting, and welding
- Optical Fiber Communications: Facilitates reliable signal transmission in optical fiber communication systems, ensuring data integrity and quality
- Research and Development: Valuable tool for researchers and engineers in laboratories, supporting advanced optical experiments and studies
- Telecommunications Networks: Vital component for telecommunications infrastructure, supporting signal amplification and transmission in fiber optic networks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
A PM Pump & Signal Combiner is a specialized optical device designed to efficiently combine the power from pump and signal channels in polarization-maintaining (PM) fiber laser systems.
The key features include high coupling efficiency, wide wavelength range compatibility, proprietary fiber tapering technique, custom configurations, minimized signal channel insertion loss, and high pump efficiency.
This combiner is ideal for PM fiber lasers, pump combiners with PM signal, multi-kilowatt fiber lasers, optical fiber communications, research and development, and telecommunications networks.
By efficiently combining pump and signal channels with high coupling efficiency and minimized insertion loss, it ensures optimal power transfer and signal integrity, resulting in improved overall system performance.
Yes, it supports a wide range of wavelengths, making it versatile for various applications and laser sources. It can handle pump wavelengths ranging from 900nm to 1000nm and signal wavelengths of 1060nm and 1550nm.
Yes, custom configurations are available to meet specific project needs, providing flexibility and adaptability to different system designs and applications.
The operating temperature range is from 0°C to +65°C, with active cooling required. It can be stored within a temperature range of -40°C to +85°C.
The combiner is available in two package dimensions: P1 (50mm × 5mm × 5mm) and P2 (70mm × 12mm × 8mm), providing options to suit different installation requirements.
