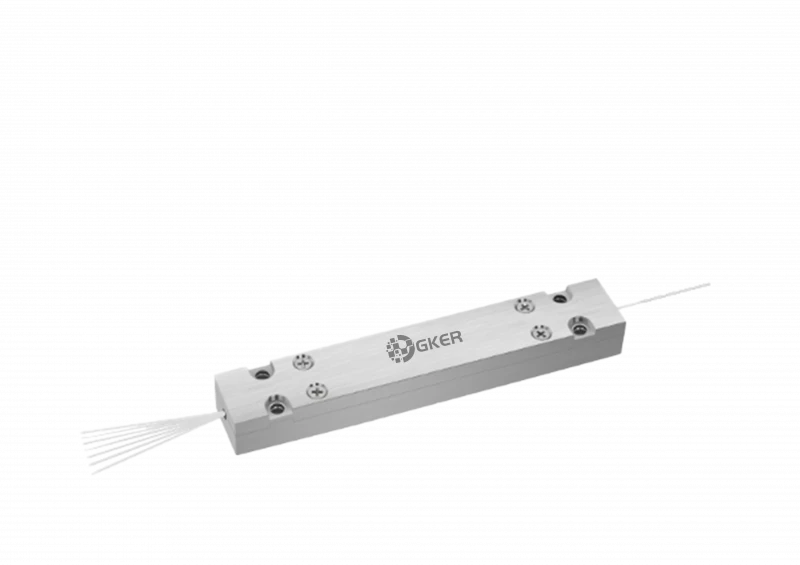

High Power 19 × 1 Pump Combiner (HPPC Series)
Description
The High Power 19 × 1 Pump Combiner from our HPPC Series represents cutting-edge technology in optical power combining. Designed for applications demanding high efficiency and robust performance, this device seamlessly integrates the outputs of up to 19 multimode laser diodes into a single double-clad output fiber. Engineered to handle more than 1kW of combined power, it ensures exceptional power transfer efficiency with minimal losses. The combiner supports a wide range of pump wavelengths from 915nm to 980nm, making it versatile for various laser systems and configurations.
This combiner is equipped with proprietary fiber tapering techniques that optimize light coupling efficiency, ensuring reliable and stable operation in demanding environments. Its compact design, measuring 100mm in length, 15mm in width, and 10mm in height, facilitates easy integration into existing optical setups. Active cooling is recommended to maintain optimal operating temperatures between -5°C to +65°C, with storage conditions ranging from -40°C to +85°C.
Applications for the High Power 19 × 1 Pump Combiner span across high-power fiber laser systems, where it plays a critical role in boosting output power without compromising beam quality. It is also ideal for kW class fiber amplifiers used in telecommunications, data transmission, and industrial laser processing. The combiner's ability to handle high input powers and maintain high coupling efficiency makes it a preferred choice for applications requiring reliable power combining solutions.
With its robust construction, advanced tapering techniques, and compatibility with different fiber types such as 105/125 (0.15 or 0.22 NA), the High Power 19 × 1 Pump Combiner stands out as a versatile and dependable component in the arsenal of optical engineers and researchers aiming to push the boundaries of laser technology.
High Power 19 × 1 Pump Combiner (HPPC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 915-980 nm |
| Power Handling: | > 10W |
| Return Loss: | 50 dB |
| Product Type: | 19×1 |
| Wavelength Range: | 915 - 980 nm |
| Fiber Type For Input: | 105/125 (0.15 or 0.22 NA) |
| Fiber Type For Output: | Nufern LMA-GDF-20/400-M, 0.06/0.46 NA |
| Max. Input Pump Power: | 19 × 60 W |
| Typ. Pump Efficiency: | 99 % |
| Min. Pump Efficiency: | 97 % |
| Package Dimensions: | 100 (L) × 15 (W) × 10 (H) mm |
Features
- High Power Handling: Capable of combining the output power of up to 19 multimode laser diodes into a single fiber, handling more than 1kW of combined power
- High Coupling Efficiency: Utilizes proprietary fiber tapering techniques to ensure efficient coupling of pump diodes into the output fiber, minimizing power losses
- Wide Wavelength Range: Supports pump wavelengths ranging from 915nm to 980nm, accommodating various laser diode configurations
- Robust Design: Engineered for durability and reliability in high-power applications, featuring a compact package with dimensions of 100mm (L) × 15mm (W) × 10mm (H)
- Custom Configurations: Available with options for different fiber types (e.g., 105/125 with 0.15 or 0.22 NA), allowing flexibility in system integration
- Active Cooling Recommended: Designed to operate optimally with active cooling systems, ensuring stable performance across a wide temperature range (-5°C to +65°C)
Applications
- High Power Fiber Lasers: Essential component for boosting power output in kW-class fiber laser systems used in industrial cutting, welding, and marking applications
- Fiber Amplifiers: Enhances the output power and efficiency of fiber amplifiers used in telecommunications, data transmission, and fiber optic sensing
- Telecommunications: Enables efficient signal amplification and transmission in high-speed data networks, improving network reliability and performance
- Industrial Laser Systems: Integrates seamlessly into industrial laser systems for materials processing, providing high-power beams with precise control
- Research and Development: Supports advanced research in photonics and optics, facilitating experiments requiring high-power optical combining with minimal losses
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The High Power 19 × 1 Pump Combiner is an advanced optical device designed to efficiently combine the output power of up to 19 multimode laser diodes into a single output fiber. This capability is essential for applications requiring high-power handling, such as kW-class fiber lasers and fiber amplifiers used in industrial cutting, welding, and materials processing. By consolidating multiple pump sources into one, the combiner enhances overall system efficiency and performance.
This combiner is engineered to handle more than 1kW of combined power from the multimode pump diodes. This high power capacity makes it suitable for demanding industrial applications where robust and efficient power combining is critical for maintaining performance and reliability under varying operational conditions.
Key features include its high coupling efficiency achieved through proprietary fiber tapering techniques. It supports a wide wavelength range, accommodating pump wavelengths from 915nm to 980nm, and is compatible with various fiber types, including 105/125 with 0.15 or 0.22 numerical aperture (NA). The combiner boasts compact dimensions (100mm L × 15mm W × 10mm H), facilitating seamless integration into optical systems. Additionally, it is designed for use with active cooling systems to ensure stable operation across a broad temperature range.
Yes, the combiner offers customization options for fiber types used in input and output channels, as well as for the length of the fibers. This flexibility allows users to tailor the combiner to specific system requirements, ensuring optimal performance and compatibility with existing setups.
The combiner is designed to operate within a wide temperature range, from -5°C to +65°C during active use, and can be stored in temperatures ranging from -40°C to +85°C. This robust environmental tolerance ensures reliable performance in various operational conditions, whether in laboratory environments or industrial applications.
The combiner employs advanced proprietary fiber tapering techniques, which optimize the coupling of optical power from multiple pump diodes into a single output fiber. This design minimizes losses and maximizes the efficiency of power transfer, ensuring that the combined output maintains high optical quality and reliability.
Benefits include increased output power capability, which is crucial for demanding laser cutting and welding applications. The combiner enhances system efficiency and performance, contributing to improved productivity and operational reliability. Its compact size and customizable fiber configurations simplify integration into existing optical setups. Moreover, it supports high-speed data transmission and amplification in optical communication networks, ensuring robust and reliable signal transmission.
