(2+1)×1 Polarization Maintaining Pump and Signal Combiner (PMMPC Series)
Description
The (2+1)×1 Polarization Maintaining Pump & Signal Combiner (PMMPC Series) is an advanced optical component designed to efficiently combine two multimode pump diodes and one signal channel into a single polarization-maintaining fiber output. This cutting-edge device leverages a proprietary pull and package technique to ensure high coupling efficiency and exceptional signal transfer efficiency, making it an indispensable tool for high-performance photonics applications. The combiner supports a wide wavelength range, allowing for flexible integration into various fiber laser and amplifier systems.
With custom configuration options, the PMMPC Series is tailored to meet specific customer requirements, ensuring optimal performance in a variety of settings. Its compact design allows for easy incorporation into existing systems, while maintaining the polarization of the input signal for applications that demand high precision and stability. Whether used in fiber lasers, amplifiers, or advanced communication systems, the PMMPC Series delivers reliable and efficient performance, making it a valuable asset in the field of optical technology.

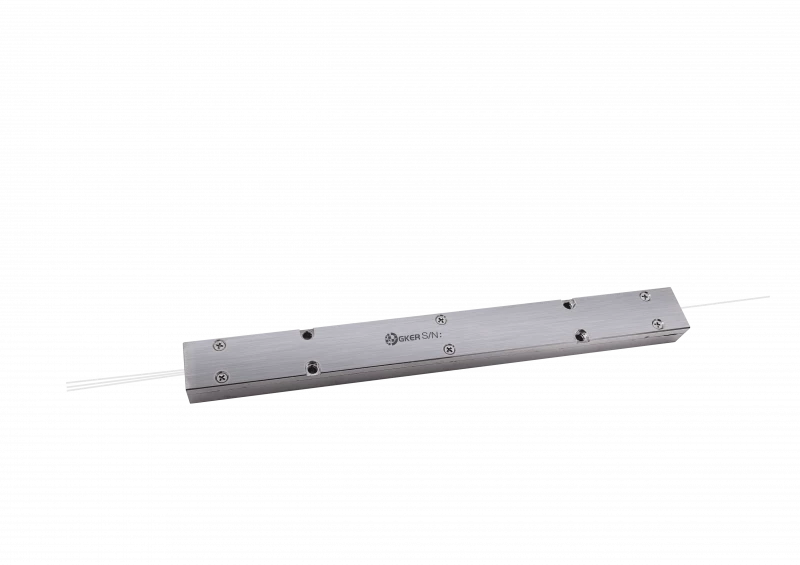

(2+1)×1 Polarization Maintaining Pump and Signal Combiner (PMMPC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1060, 1550 nm |
| Power Handling: | > 10W |
| Return Loss: | 50 dB |
| Product Type: | PM (2+1)×1 |
| Pump Wavelength Range: | 900 - 1000 nm |
| Signal Wavelength Range: | 1060, 1550 nm |
| Fiber Type For Input (Pump Channel): | Nufern 105/125 (0.15 NA, or 0.22 NA) |
| Fiber Type For Input (Signal Channel): | PM 980, PM 1550, PM-6/125 DC, or PM-8/125 DC |
| Fiber Type For Output: | PM-6/125 DC, or PM-8/125 DC |
| Signal Channel Insertion Loss: | < 0.50 dB |
| Min. Pump Efficiency: | 90 % |
| Max. Input Pump Power: | 2 × 5 or 2 × 30 W |
| Package Dimensions: | P1: 50 (L) × 5 (W) × 5 (H) or P2: 70 (L) × 12 (W) × 8 (H) mm |
Features
- High Coupling Efficiency: Optimized design for maximum power transfer from pump and signal inputs to output
- High Signal Transfer Efficiency: Ensures minimal signal loss, maintaining the integrity and strength of the transmitted signal
- Wide Wavelength Range: Compatible with various wavelengths, supporting diverse application requirements
- Proprietary Pull and Package Technique: Enhances the performance, reliability, and durability of the combiner
- Custom Configurations Available: Provides flexibility to meet specific customer needs and application demands
- Compact Design: Small and robust form factor for easy integration into various systems
- Polarization Maintaining: Maintains the polarization state of the signal, crucial for high-precision applications
- Low Signal Channel Insertion Loss: Less than 0.50 dB, ensuring efficient signal transmission
- High Power Handling: Capable of handling up to 2 × 30 W of pump power
- Temperature Resilience: Operates efficiently within a wide temperature range, ensuring stability and performance under varying conditions
Applications
- PM Fiber Lasers: Enhances the performance and efficiency of polarization maintaining fiber lasers
- PM Fiber Amplifiers: Ideal for use in polarization maintaining fiber amplifier systems, ensuring high signal integrity
- High Power EDFA Feedthrough: Supports high power erbium-doped fiber amplifier applications, facilitating robust amplification
- CATV Amplifiers: Suitable for cable television amplifier systems requiring high power, low loss, and precise polarization maintenance
- Optical Fiber Communications: Ensures efficient power transfer and signal integrity in high-speed communication networks
- Research and Development: Facilitates advanced research and development in optical and photonics fields, providing reliable performance
- Telecommunications Networks: Optimizes performance in telecom infrastructure requiring robust and efficient combiners with high precision
