High Power 7×1 Pump Combiner (HPPC Series)
Description

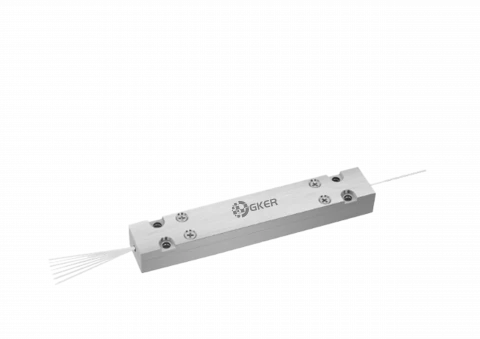

The High Power 7×1 Pump Combiner from the HPPC Series represents a pinnacle of engineering designed to meet the rigorous demands of high-power fiber laser systems. This device excels in efficiently combining the outputs of up to 7 multimode laser diodes, offering a seamless integration solution for applications requiring exceptional power handling capabilities. With the ability to manage over 1kW of combined power, the combiner leverages advanced proprietary fiber tapering techniques to ensure high coupling efficiency across a wide wavelength range, specifically from 915nm to 980nm.
This combiner supports various fiber types, including Nufern 220/242 (0.22 NA) and 200/220 (0.22 NA), and delivers robust performance through Nufern LMA-GDF-20/400-M fibers with 0.06/0.46 NA. It is meticulously engineered to provide reliable operation in diverse industrial settings, from kW class fiber lasers to high-power fiber amplifiers. Its versatile design accommodates custom configurations, allowing tailored setups to meet specific application requirements with precision and reliability.
Ideal for applications in industrial laser cutting, welding, telecommunications infrastructure, and advanced research in optical sciences, the High Power 7×1 Pump Combiner stands out for its ability to optimize power transfer while ensuring durability and performance consistency. With its compact package dimensions of 100mm in length, 15mm in width, and 10mm in height, combined with a robust temperature operating range from -5°C to +65°C (active cooling required), this combiner sets a new standard for efficiency and reliability in high-power optical systems.
For more information or to discuss customized configurations, please contact us to explore how the High Power 7×1 Pump Combiner can enhance your specific application needs.
High Power 7×1 Pump Combiner (HPPC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 915-980 nm |
| Power Handling: | > 10W |
| Return Loss: | 50 dB |
| Product Type: | 7×1 |
| Wavelength Range: | 915 - 980 nm |
| Fiber Type For Input: | Nufern 220/242 (0.22 NA) or 200/220 (0.22 NA) |
| Fiber Type For Output: | Nufern LMA-GDF-20/400-M, 0.06/0.46 NA |
| Max. Input Pump Power: | 7 × 200 W |
| Typ. Pump Efficiency: | 99 % |
| Min. Pump Efficiency: | 97 % |
Features
- High Power Handling: Capable of combining up to 7 multimode pump laser diodes into a single output fiber, handling power levels exceeding 1kW
- Exceptional Coupling Efficiency: Utilizes proprietary fiber tapering techniques to maximize coupling efficiency across a wide wavelength range from 915nm to 980nm
- Robust Design: Engineered for reliability in demanding environments, ensuring stable operation under varying temperature conditions
- Versatile Fiber Compatibility: Compatible with Nufern 220/242 (0.22 NA) and 200/220 (0.22 NA) fiber types, paired with Nufern LMA-GDF-20/400-M fibers with 0.06/0.46 NA
- Compact Form Factor: Compact dimensions of 100mm (L) × 15mm (W) × 10mm (H), facilitating easy integration into optical setups with minimal footprint
- Custom Configurations: Available in customizable configurations to suit specific application requirements, ensuring adaptability across various optical systems
Applications
- High-Power Fiber Lasers: Ideal for integrating the outputs of multiple pump lasers into a single high-power fiber laser system, ensuring efficient power scaling
- Kilowatt-Class Fiber Amplifiers: Essential component for combining pump diodes into high-power amplification systems, enhancing signal strength and reliability
- Telecommunications: Used in telecommunications infrastructure for signal amplification and transmission, ensuring robust and efficient data transfer
- Industrial Laser Cutting and Welding: Facilitates high-power laser applications in industrial processes such as cutting, welding, and material processing
- Scientific Research: Enables precise and reliable optical systems in research environments for experimentation and testing of new laser technologies
