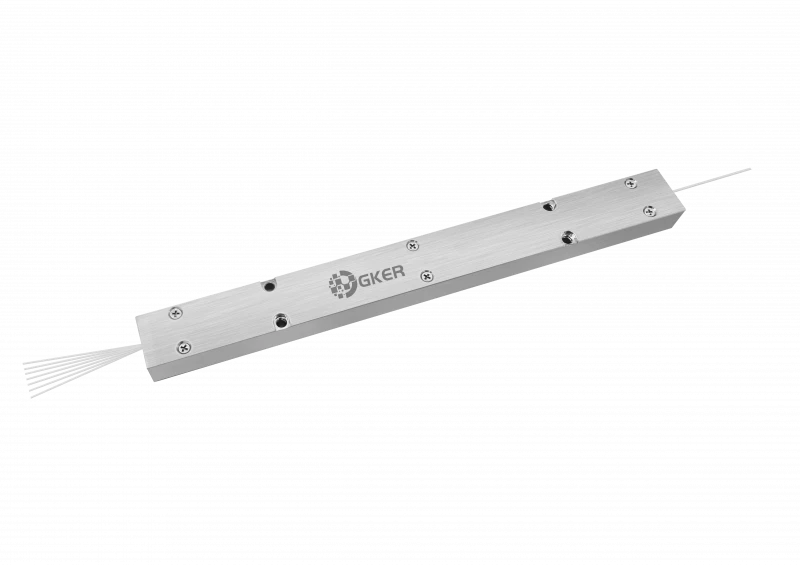

1000/1100nm High Power (18+1)×1 Pump and Signal Combiner
Description
Experience the epitome of power combining technology with our High Power (18+1)×1 Pump & Signal Combiner, engineered to meet the demands of high-power fiber laser systems, telecommunications networks, scientific research facilities, medical applications, and defense industries. This advanced combiner seamlessly integrates up to 18 multimode pump diodes and a signal laser into a single output fiber, ensuring optimal power management and transmission efficiency.
Crafted with precision and reliability in mind, our combiner features a proprietary fiber tapering technique, which enhances power handling capabilities while minimizing insertion losses. The backward configuration of this combiner makes it ideal for applications where signal transmission is critical, delivering exceptional performance even in the most demanding environments.
Designed to accommodate various fiber types and wavelengths, our combiner offers versatility and flexibility for a wide range of applications. Whether you're powering high-power fiber lasers for industrial cutting and welding, optimizing signal transmission in telecommunications networks, conducting groundbreaking research in scientific laboratories, or advancing medical laser technologies, our High Power Pump & Signal Combiner is the ultimate solution for your power management needs.
1000/1100nm High Power (18+1)×1 Pump and Signal Combiner
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1000-1100 nm |
| Power Handling: | > 100W |
| Return Loss: | 50 dB |
| Product Type: | Backward (18+1)×1 |
| Pump Wavelength Range: | 800 - 1000 nm |
| Signal Wavelength Range: | 1000 - 1100 nm |
| Fiber Type For Input (Pump Channel): | Nufern MM-S135/155-22FA |
| Fiber Type For Input (Signal Channel): | Nufern LMA-GDF-20/400-HP-M |
| Fiber Type For Output: | Nufern LMA-GDF-20/400-HP-M |
| Max. Input Pump Power: | 18 × 300 W |
| Max. Input Signal Power: | 5000 W |
| Max. Signal Channel Insertion Loss: | 0.2 dB |
| Min. Pump Efficiency: | 97 % |
Features
- High Power Handling: Capable of handling an impressive combined power output of up to 5000 W
- Efficient Coupling: Achieves high coupling efficiency, minimizing power loss during the combining process
- Proprietary Fiber Tapering Technique: Utilizes advanced tapering methods to optimize power distribution and performance
- Backward Configuration: Specifically designed for backward pump and signal combining applications
- Robust Design: Built to withstand demanding operating conditions, ensuring long-term reliability and stability
- Versatile Compatibility: Compatible with a range of fiber types and wavelengths, offering flexibility for various applications
Applications
- High Power Fiber Lasers: Perfect for powering high-performance fiber laser systems used in industrial cutting, welding, and material processing applications
- Telecommunications: Enables efficient signal transmission in fiber optic communication networks, particularly in long-distance and high-bandwidth applications
- Scientific Research: Facilitates advanced laser experiments and studies in research laboratories and academic institutions
- Medical Applications: Supports medical laser systems for procedures such as laser surgery, therapy, and diagnostics
- Defense and Aerospace: Ideal for high-power laser systems used in defense technologies, satellite communications, and aerospace engineering
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
A Pump & Signal Combiner is a device designed to efficiently combine the power outputs from multiple pump diodes with the signal output from a laser into a single fiber. This process ensures optimal power management and transmission efficiency in fiber laser systems and telecommunications networks.
The High Power Pump & Signal Combiner is ideal for a wide range of applications, including: Powering high-power fiber lasers for industrial cutting, welding, and material processing; Efficient signal transmission in fiber optic communication networks, particularly in long-distance and high-bandwidth applications; Advanced laser experiments and studies in research laboratories and academic institutions; Medical laser systems for procedures such as laser surgery, therapy, and diagnostics; High-power laser systems used in defense technologies, satellite communications, and aerospace engineering.
The operating temperature range for the High Power Pump & Signal Combiner is -5 to +65°C, while the storage temperature range is -40 to +85°C. These specifications ensure reliable performance across a wide range of environmental conditions.
Yes, we offer customized configurations to meet specific requirements and applications. Please contact our sales team for further assistance and inquiries regarding customized solutions.
