kW High-Efficiency (6+1)×1 Multimode Pump and Signal Combiner
Description

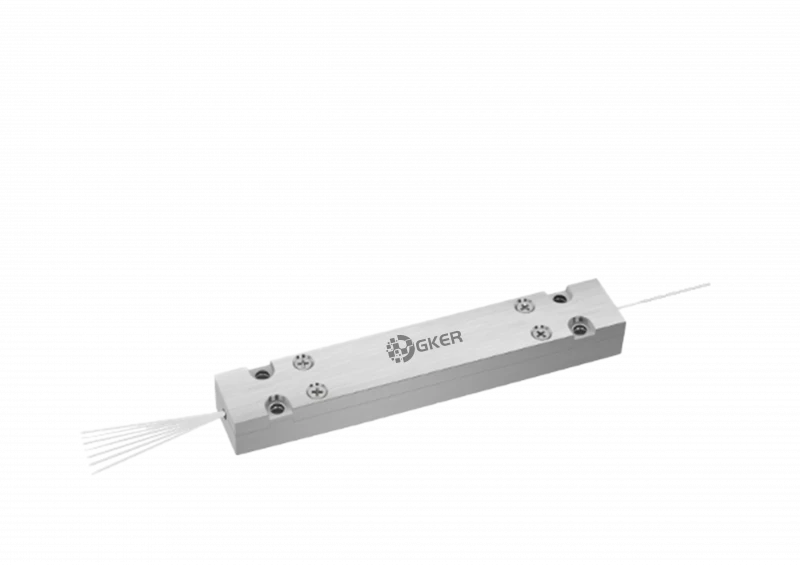

The High-Efficiency (6+1)×1 Multimode Pump & Signal Combiner (MMPC Series) is designed to meet the demanding requirements of high-power laser applications. This combiner features exceptional coupling efficiency and high signal transfer efficiency across a wide wavelength range, making it ideal for fiber laser and amplifier systems. The proprietary pull and package technique ensures robust performance and durability.
Custom configurations are available to accommodate specific application needs, providing flexibility and precision. With advanced optical design and manufacturing expertise, this combiner supports a wide array of industrial, scientific, and communication applications.
kW High-Efficiency (6+1)×1 Multimode Pump and Signal Combiner
Specifications |
|
---|---|
Splitting Ratio: | Other |
Central Wavelength: | 632 nm |
Power Handling: | > 100W |
Return Loss: | 50 dB |
Product Type: | (6+1)×1 |
Pump Wavelength Range: | 900 - 1000 nm |
Signal Wavelength Range: | 632 nm |
Fiber Type For Input (Pump Channel): | Nufern 200/220 (0.22NA) or 220/242 ( 0.22 NA) |
Fiber Type For Input (Signal Channel): | 25/250 or 30/250 DC, NA = 0.06/0.46 |
Fiber Type For Output: | 20/400 DC, NA = 0.06/0.46 |
Max. Input Pump Power: | 6 × 200 W |
Signal Channel Insertion Loss: | <1 dB |
Typ. Pump Efficiency: | 97 % |
Min. Pump Efficiency: | 95 % |
Features
- High Coupling Efficiency: Ensures maximum power transfer from pump sources to the output fiber, minimizing energy loss
- High Signal Transfer Efficiency: Delivers high-quality signal transmission with minimal insertion loss, enhancing overall system performance
- Wide Wavelength Range: Operates efficiently over a broad wavelength spectrum, supporting various laser and amplifier configurations
- Proprietary Pull and Package Technique: Utilizes advanced manufacturing techniques to enhance product reliability and longevity
- Custom Configurations Available: Offers flexibility to meet specific customer requirements, including different fiber types and lengths
- Robust Design: Built to withstand high-power operations and harsh environments, ensuring consistent performance
- Low Signal Channel Insertion Loss: Maintains signal integrity with insertion loss less than 1dB
- High Pump Efficiency: Typical pump efficiency of 97%, with a minimum of 95%, ensuring efficient energy use
- Compact Package Dimensions: Designed for easy integration into various systems with dimensions of 100mm (L) × 15mm (W) × 10mm (H)
- Wide Operating Temperature Range: Performs reliably within -5°C to +65°C, suitable for diverse environmental conditions
Applications
- Fiber Lasers and Amplifiers: Enhances the performance of high-power fiber lasers and amplifiers by efficiently combining multiple pump sources
- Pump Combiners with Signal Feedthrough: Ideal for applications requiring simultaneous pump and signal transmission, improving system integration
- Industrial Laser Systems: Supports high-precision industrial processes such as cutting, welding, and marking by providing reliable power delivery
- Scientific Research: Facilitates advanced research in fields like photonics and materials science by providing stable and efficient laser sources
- Optical Communication Systems: Ensures high-quality signal transmission in communication networks, supporting high-speed data transfer
- Medical Laser Applications: Provides reliable power and signal delivery for medical laser systems used in surgeries and therapeutic treatments
- Military and Aerospace: Suitable for high-power laser systems in defense and aerospace applications, offering robustness and reliability
