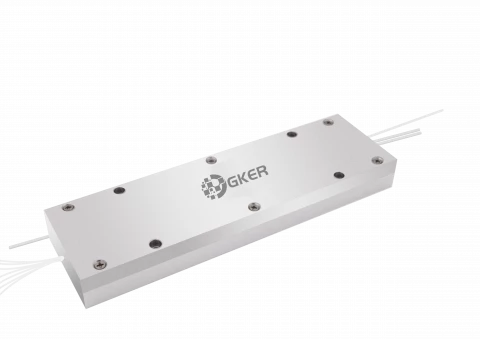

N ×1 High Power Laser Combiner (HPLC Series)
Description
The N ×1 High Power Laser Combiner (HPLC Series) represents a cutting-edge solution for consolidating the outputs of multiple kW-class fiber lasers with exceptional efficiency. Engineered with precision and versatility in mind, this combiner leverages advanced fiber tapering techniques and customizable configurations to meet the diverse demands of modern industrial laser applications.
Crafted to deliver unparalleled power transfer efficiency, the HPLC Series ensures seamless integration with high-power fiber lasers, enabling optimized performance across a wide range of industrial processes. Whether it's laser cutting, welding, marking, or additive manufacturing, this combiner provides a robust and reliable solution for maximizing the potential of multi-kilowatt fiber laser systems.
Designed to accommodate different fiber types and wavelengths, the HPLC Series offers flexibility and adaptability to suit various operational requirements. Its innovative design minimizes signal losses and maximizes beam quality, resulting in superior performance and productivity in industrial settings.
With a focus on reliability and precision, the N ×1 High Power Laser Combiner (HPLC Series) empowers industries to push the boundaries of laser-based manufacturing and processing, driving efficiency, accuracy, and innovation in today's dynamic industrial landscape.
3.5
N ×1 High Power Laser Combiner (HPLC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1060-1080 nm |
| Power Handling: | Not Specified |
| Return Loss: | 50 dB |
| Product Type: | 3 ×1 or 4 ×1 or 7 ×1 |
| Laser Wavelength Range: | 1060 - 1080 nm |
| Fiber Type For Input: | 20/130, NA = 0.08/0.46 |
| Fiber Type For Output: | 100/120/360, NA = 0.22 or 50/70/360, NA = 0.22 |
| Input Power Handling Per Port: | 3000 W |
| Max. Backward Power Handling: | 1000 W |
| Min. Power Transfer Efficiency: | 97 % |
| Max. Beam Parameter Product (BPP): | 4 mm mrad |
Features
- Efficient Power Combining: Combines the outputs of multiple kW-class fiber lasers with high efficiency
- Customizable Configurations: Tailored configurations available to meet specific application requirements
- Advanced Fiber Tapering Technique: Utilizes proprietary techniques for optimal power transfer and beam quality
- Wide Compatibility: Accommodates various fiber types and laser wavelengths for versatility in applications
- High Power Handling: Capable of handling high input powers per port, ensuring robust performance in demanding environments
- Minimized Signal Loss: Engineered to minimize signal losses and maximize beam quality for superior performance
- Compact Design: Compact form factor for easy integration into existing laser systems or setups
Applications
- Laser Cutting: Ideal for high-power laser cutting applications across a wide range of materials
- Laser Welding: Enables efficient and precise laser welding processes in industrial manufacturing
- Laser Marking: Facilitates high-speed and high-precision laser marking and engraving tasks
- Additive Manufacturing: Supports additive manufacturing processes, such as laser-based 3D printing and cladding
- Material Processing: Versatile tool for various material processing tasks, including drilling, scribing, and surface treatment
- Industrial Fabrication: Enhances productivity and precision in industrial fabrication processes requiring high-power lasers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The N ×1 High Power Laser Combiner is a specialized device designed to combine the outputs of multiple kW-class fiber lasers with high efficiency.
The primary function of the HPLC Series is to efficiently combine the power outputs from multiple fiber lasers into a single output, ensuring high-power transfer efficiency.
The HPLC Series offers customizable configurations to meet specific application requirements, accommodating different fiber types and laser wavelengths.
The HPLC Series is engineered to handle high input powers per port, ensuring robust performance even in demanding industrial environments.
The proprietary fiber tapering technique ensures optimal power transfer and beam quality, resulting in minimized signal losses and superior performance.
The HPLC Series is commonly used in laser cutting, welding, marking, additive manufacturing, material processing, and industrial fabrication applications.
Yes, the HPLC Series is compatible with various fiber types and laser wavelengths, offering versatility and flexibility in applications.
The HPLC Series operates within a temperature range of 0 to +65 degrees Celsius, with active cooling required for optimal performance.
Yes, the compact design of the HPLC Series allows for easy integration into existing laser systems or setups, minimizing installation complexity.
Yes, technical support is available to assist customers with installation, configuration, and troubleshooting of the HPLC Series.
