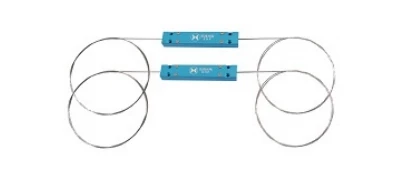

PM (N+1) ×1 PM Fiber Combiner
Description
PM(N+1)×1 Polarization maintaining fiber combiner features high pump efficiency, low insert loss, high extinction ratio, stable and reliable. This combiner can be integrated into medium and high power fiber laser, fiber amplifier, fiber sense system and R&D test equipment.
Please use the "REQUEST QUOTE" button to contact us directly.
PM (N+1) ×1 PM Fiber Combiner
Specifications |
|
|---|---|
| Splitting Ratio: | 50/50 |
| Central Wavelength: | 800-1600 nm |
| Power Handling: | |
| Return Loss: | 45 dB |
| Pump Wavelength: | 800～1000nm |
| Signal Wavelength: | 1030～1080nm or 1450～1600nm |
| Signal Fiber(input): | X/125 or 20/400 |
| Pump Fiber(input): | X/125 or 200/220 |
| Output Fiber: | Y/125/Y/250/20/400 |
| Signal Insert Loss: | <0.7dB |
| Total Power: | 200W-2500W |
| Return Loss: | 45dB |
| Extinction Ratio: | >18dB |
Features
Operating Wavelengths
Pump wavelength：P1 = 915nm，P2 = 975nm
Signal wavelength：S1 = 1064nm，S2 = 1550nm，S3 = 2000nm
