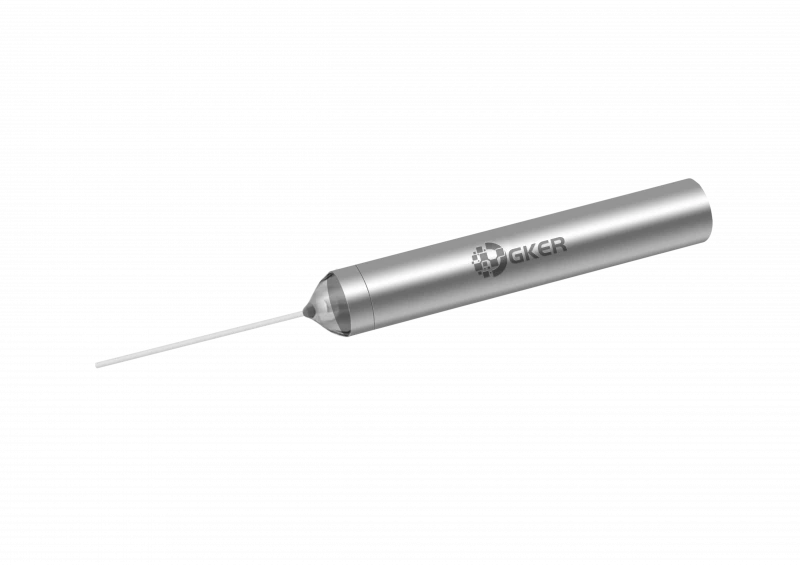

1064 nm Single fiber Collimator
Description
The 1064 nm Single Fiber Collimator from GKER Photonics Co., Ltd. is meticulously engineered to meet the demands of high-precision fiber optic systems. Designed specifically for applications involving isolators and Wavelength Division Multiplexers (WDMs), this collimator stands out with its exceptional performance metrics. Operating at a center wavelength of 1064 nm, it accommodates a wavelength range of ±30 nm, offering flexibility for various optical setups.
This collimator features an impressively low typical insertion loss of 0.25 dB, ensuring minimal signal attenuation. The maximum insertion loss is capped at 0.30 dB, which maintains high transmission efficiency. The high return loss of 55 dB guarantees excellent signal integrity by minimizing reflections that can interfere with optical performance. It is capable of handling up to 300 mW of continuous wave optical power, making it suitable for high-power applications without compromising performance or stability.
The collimator’s construction incorporates high-quality anti-reflective (AR) coatings, enhancing its durability and efficiency. The design supports tensile loads up to 5 N, ensuring mechanical robustness. It is compatible with PM 980 Panda Fiber, providing reliable and consistent performance in demanding environments.
Engineered for a broad range of operating conditions, this collimator functions optimally within temperatures from -5°C to +70°C and is stored safely within a temperature range of -40°C to +85°C. Its precision manufacturing and high-quality materials make it an ideal choice for sophisticated fiber optic systems requiring high performance and reliability.
1064 nm Single fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 5 or specify mm |
| Typ. Insertion Loss: | 0.25 dB |
| Max. Insertion Loss: | 0.30 dB |
| Min. Return Loss: | 55 dB |
| Max.Optical Power (continuous Wave): | 300 mW |
| Tensile Load: | 5 N |
| Fiber Type: | PM 980 Panda Fiber - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Typical insertion loss of 0.25 dB, with a maximum of 0.30 dB
- High Return Loss: Minimum return loss of 55 dB ensures signal integrity
- High Power Handling: Capable of withstanding up to 300 mW of continuous optical power
- Durable Construction: Designed to handle tensile loads up to 5 N
- Quality Coating: High-quality AR coating for improved performance and durability
Applications
- Fiber Optic Isolators: Essential for isolating signals to prevent feedback
- Wavelength Division Multiplexers (WDMs): Used in WDM systems for combining or separating wavelengths
- High-Power Fiber Laser Systems: Supports high-power applications with stable performance
- Precision Optical Instruments: Ideal for applications requiring accurate beam collimation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The center wavelength is 1064 nm.
The operating wavelength range is ±30 nm around the center wavelength.
The typical insertion loss is 0.25 dB.
The maximum insertion loss is 0.30 dB.
The minimum return loss is 55 dB.
The collimator can handle up to 300 mW of continuous wave optical power.
The maximum tensile load is 5 N.
It is compatible with PM 980 Panda Fiber.
Operating temperature range is -5°C to +70°C, and storage temperature range is -40°C to +85°C.
Yes, the working distance can be specified according to requirements.
