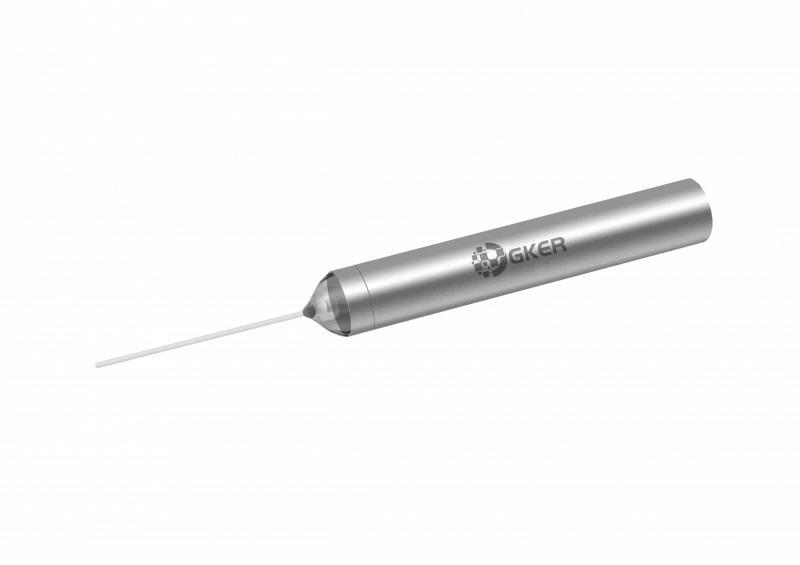

1310-1480-1550nm 5 -10w High Power Single Fiber Collimator
Description
The GKER Photonics High Power Single Fiber Collimator (GK-HPC Series) is expertly designed for high-power optical applications. This robust collimator is a fundamental component in various in-line fiber optics systems, providing low insertion loss and high return loss, ensuring maximum efficiency and performance in demanding environments. The collimator features a durable construction with a high-quality anti-reflective (AR) coating, allowing it to handle significant optical power while maintaining stable and reliable performance.
Available with different center wavelengths, including 1310 nm, 1480 nm, and 1550 nm, this collimator can be customized with various pigtail, holder, and connector types to meet specific requirements. Ideal for integration into high-power laser systems, optical sensing, and communication networks, the GK-HPC Series offers exceptional optical performance with minimal signal degradation, making it a preferred choice for high-precision applications.
1310-1480-1550nm 5 -10w High Power Single Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1310,1480, 1550 nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 5 - 50 51 - 100 101 - 250 251 - 500 mm |
| Typ. Insertion Loss: | 0.3 0.35 0.4 0.6 dB |
| Max. Insertion Loss: | 0.4 0.45 0.5 0.7 dB |
| Nominal Beam Diameter: | 0.4 0.45 0.75 0.95 mm |
| Min. Return Loss: | 55 dB |
| Max. Optical Power: | 5, 10 W |
| Max. Tensile Load: | 5 N |
| Fiber Type: | SMF-28 Fiber - |
| Operating Temperature: | -5 to +70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- High Power Handling: Capable of managing up to 10 W of optical power for high-demand applications
- Low Insertion Loss: Ensures efficient signal transmission with typical insertion loss as low as 0.3 d
- High Return Loss: Provides excellent signal reflection with a minimum return loss of 55 dB
- Customizable Configuration: Offers various options for pigtail type, holder type, and connector type to suit different applications
- Wide Operating Temperature Range: Reliable performance in temperatures ranging from -5°C to +70°C
Applications
- High-Power Laser Systems: Essential for applications requiring high optical power management with minimal signal degradation
- Optical Sensing: Ideal for precise optical sensing systems where high return loss and low insertion loss are critical
- Telecommunication Networks: Supports efficient optical signal transmission in high-power telecommunication networks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The GKER High Power Single Fiber Collimator (GK-HPC Series) can handle up to 10 W of continuous optical power.
The collimator is available in 1310 nm, 1480 nm, and 1550 nm center wavelengths.
The typical insertion loss is as low as 0.3 dB, depending on the working distance.
The collimator uses SMF-28 fiber, ensuring compatibility with standard optical systems.
Yes, it operates reliably in temperatures ranging from -5°C to +70°C and can be stored in temperatures between -40°C to +85°C.
The minimum return loss is 55 dB, ensuring excellent signal reflection.
Yes, it offers customizable options for pigtail type, holder type, connector type, and working distance to meet specific application requirements.
The nominal beam diameter ranges from 0.4 mm to 0.95 mm, depending on the working distance and configuration.
The collimator can withstand a maximum tensile load of 5 N, ensuring durability in various installation environments.
It is commonly used in high-power laser systems, optical sensing, and telecommunication networks, where high power handling and low signal loss are critical.
