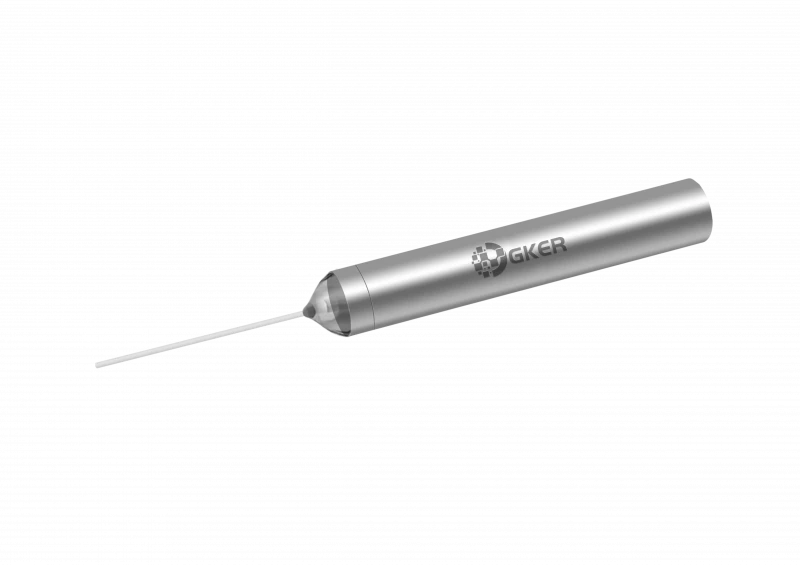

1310 -1550nm Multimode Dual Fiber Collimator
Description
The GKER Photonics Multimode Dual Fiber Collimator (GK-MMC Series) is a critical component for high-performance optical systems, specifically designed for use in multimode fiber applications. This collimator plays a pivotal role in in-line fiber optic components like isolators and fused wavelength division multiplexers (FWDMs), where precise light management is essential. The GK-MMC Series is engineered to deliver outstanding optical performance, featuring low insertion loss and high return loss, which are crucial for maintaining signal integrity in complex optical networks.
The advanced anti-reflective (AR) coating and meticulous processing techniques used in the manufacturing of this collimator allow it to handle high optical power levels, making it suitable for demanding applications that require durability and reliability. The collimator's customizable nature enables users to select the most appropriate center wavelength, fiber type, and lens type to meet their specific requirements, ensuring seamless integration into existing systems.
Built to withstand harsh environmental conditions, the GK-MMC Series operates efficiently across a wide temperature range, from -5°C to +70°C, ensuring consistent performance in various operating environments. Whether deployed in telecommunications, data centers, or laboratory settings, this multimode collimator offers the vers
1310 -1550nm Multimode Dual Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1310, 1550, or, specified nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 0 or 5 mm |
| Typ. Insertion Loss: | 0.20 dB |
| Max. Insertion Loss: | 0.25 dB |
| Min. Return Loss: | 35 dB |
| Max. Tensile Load: | 5 N |
| Fiber Type: | Multimode Fiber 105/125, 62.5/125, 50/125 µm, or specified - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Minimizes signal loss with a typical insertion loss of 0.20 dB and a maximum of 0.25 dB
- High Return Loss: Ensures minimal signal reflection with a minimum return loss of 35 dB
- High Power Handling: Capable of managing high optical power levels due to advanced AR coating
- Customizable Options: Supports various center wavelengths (1310, 1550 nm) and fiber types for tailored performance
- Robust Design: Operates reliably in a wide temperature range from -5°C to +70°C
Applications
- Optical Isolators and FWDMs: Ideal for integration into isolators and fused wavelength division multiplexers for enhanced performance
- Telecommunications: Supports multimode fiber systems in high-bandwidth communication networks
- Data Centers: Essential for efficient light management in data transmission and processing applications
- Laboratory Settings: Suitable for experimental setups and testing environments requiring precise optical components
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The primary function is to collimate light within multimode fiber optic systems, ensuring minimal signal loss and high return loss in applications such as isolators and FWDMs.
The advanced AR coating and precise manufacturing process enable the collimator to handle high optical power, making it ideal for demanding environments.
The collimator is compatible with multimode fibers, including 105/125 µm, 62.5/125 µm, and 50/125 µm, or as specified by the user.
Yes, the GK-MMC Series allows for customization of the center wavelength, with options including 1310 nm, 1550 nm, or other specified wavelengths.
The operating temperature range is -5°C to +70°C, and the storage temperature range is -40°C to +85°C, ensuring reliable performance in various environments.
The collimator can be configured with 250 µm bare fiber or other specified options, and it supports various connectors such as FC/UPC, FC/APC, SC/UPC, and SC/APC.
The GK-MMC Series offers a typical insertion loss of 0.20 dB and a maximum of 0.25 dB, ensuring efficient signal transmission with minimal loss.
The collimator provides a minimum return loss of 35 dB, contributing to its high-performance characteristics in multimode fiber applications.
The GK-MMC Series can be equipped with either GRIN lenses or C lenses, depending on the specific application requirements.
The collimator offers working distances of 0 mm or 5 mm, depending on the selected lens type and application needs.
