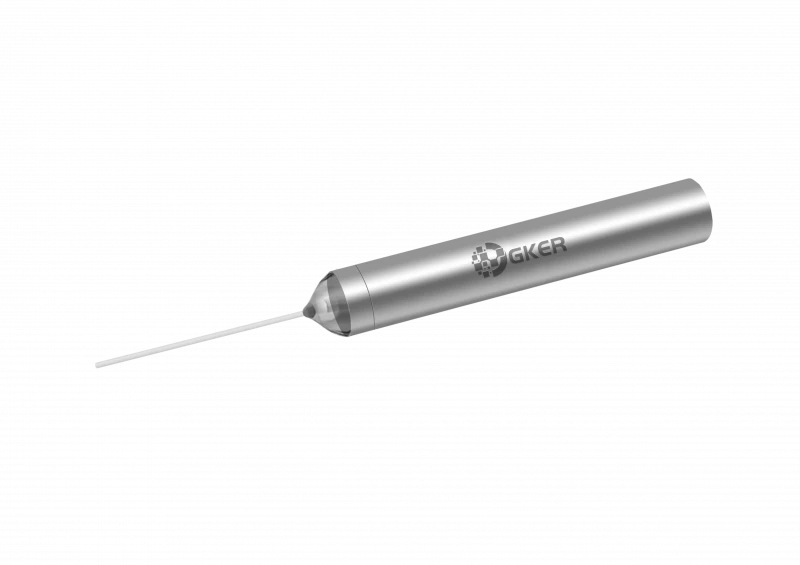

1310 -1550nm Polarization Maintaining Dual Fiber Collimator
Description
The Multimode Dual Fiber Collimator (GK-MMC Series) by GKER Photonics Co., Ltd. is a high-performance optical component designed for precise collimation of light in multimode fiber systems. This device serves as a fundamental element in fiber optic components such as isolators and FWDMs (Filter Wavelength Division Multiplexers). Engineered for superior performance, the collimator offers low insertion loss and high return loss, ensuring minimal signal degradation and optimal light transmission.
One of the standout features of this collimator is its ability to handle high power, thanks to its advanced processing techniques and high-quality anti-reflective (AR) coating. This makes it an ideal choice for applications that require reliable performance under demanding conditions. The collimator is available in different configurations, including various lens diameters, fiber types, and working distances, to meet specific application needs.
Whether you're looking to enhance the performance of your optical systems or need a robust solution for high-power applications, the GK-MMC Series offers the precision and reliability that your projects demand.
1310 -1550nm Polarization Maintaining Dual Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1310, 1550 or specified nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Type: | Transmission Type Reflection Type - |
| Working Distance: | 5 - 10 11 - 30 31 - 50 0mm for G Lens, 2.4mm for C Lens mm |
| Typ. Insertion Loss @23 ℃: | 0.25 0.30 0.35 0.20 dB |
| Max. Insertion Loss @23 ℃: | 0.30 0.40 0.45 0.25 dB |
| Min. Extinction Ratio @23 ℃: | 20 dB |
| Min. Return Loss @23 ℃: | 55 dB |
| Max. Optical Power: | 0.3,0.5.…3 W |
| Max. Tensile Load: | 5 N |
| Fiber Type: | PM Panda Fiber or specified - |
| Operating Temperature: | -5 to +70 ℃ |
Features
- Low Insertion Loss: Ensures minimal signal loss with typical values as low as 0.20 dB
- High Return Loss: Provides excellent signal reflection with a minimum return loss of 35 dB
- High Power Handling: Capable of handling high power levels, making it suitable for demanding applications
- Flexible Configuration: Available with different lens diameters, fiber types, and working distances to suit various needs
- Robust Construction: Designed for reliability with advanced AR coating and precise manufacturing techniques
Applications
- Optical Isolators: Integral component for minimizing reflection and backscattering in optical systems
- Filter Wavelength Division Multiplexers (FWDMs): Essential for multiplexing and demultiplexing signals in fiber optic networks
- High-Power Optical Systems: Suitable for use in systems requiring high power handling and robust performance
For pricing, technical or any other questions please contact the supplier
