High Power Single Fiber Collimator
Description

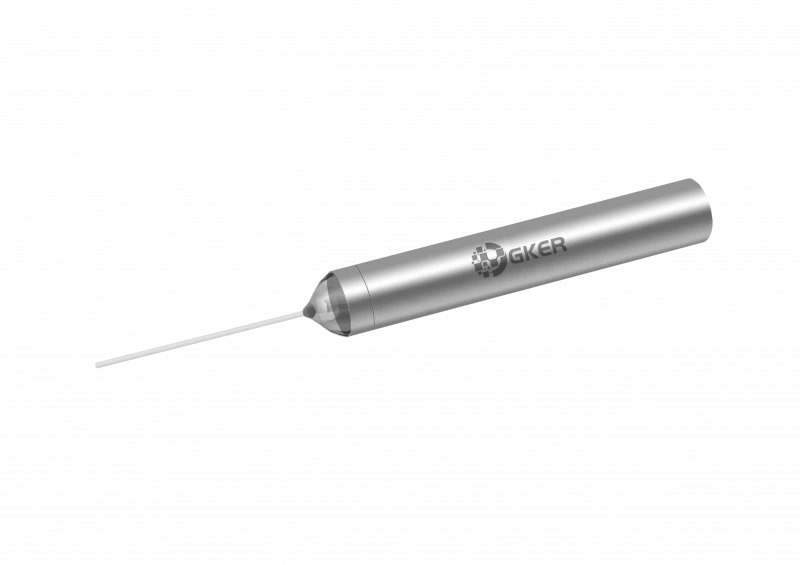

The High Power Single Fiber Collimator from GKER Photonics (GK-HPC Series) is specifically engineered to meet the demanding requirements of high-power optical applications. This collimator is a key component in the design of advanced fiber optic systems, where precision, efficiency, and durability are critical. Built with high-quality AR coating and advanced processing techniques, the GK-HPC Series ensures minimal insertion loss, high return loss, and the ability to handle significant optical power, making it ideal for use in a variety of high-power environments.
The GK-HPC Series features a versatile design that supports various working distances and operating wavelengths, including 1310 nm, 1480 nm, and 1550 nm. The collimator's robust construction, which includes options for metal holders or glass tubes, ensures long-term stability and reliability in harsh environmental conditions. Whether you're working with standard single-mode fibers like SMF-28 or require custom specifications, the GK-HPC Series offers the flexibility to meet your needs.
With a nominal beam diameter that can be customized to your application, and a maximum optical power rating that supports up to 10 W, this collimator is built for high-performance. Its low insertion loss, even at longer working distances, and excellent thermal stability make it a preferred choice for professionals in telecommunications, laser systems, and other high-power fiber optic applications.
High Power Single Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1310,1480, 1550 nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 5 - 50 51 - 100 101 - 250 251 - 500 mm |
| Typ. Insertion Loss: | 0.3 0.35 0.4 0.6 dB |
| Max. Insertion Loss: | 0.4 0.45 0.5 0.7 dB |
| Nominal Beam Diameter: | 0.4 0.45 0.75 0.95 mm |
| Min. Return Loss: | 55 dB |
| Max. Optical Power: | 5, 10 W |
| Max. Tensile Load: | 5 N |
| Fiber Type: | SMF-28 Fiber - |
| Operating Temperature: | -5 to +70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- High Power Handling: Capable of managing up to 10 W of optical power, ensuring reliability in demanding applications
- Low Insertion Loss: Ensures minimal signal degradation, with a typical insertion loss ranging from 0.3 dB to 0.7 dB, depending on working distance
- High Return Loss: Maintains high signal integrity with a minimum return loss of 55 dB
- Flexible Working Distances: Supports working distances from 5 mm to 500 mm, suitable for various setups
- Advanced AR Coatings: Enhanced anti-reflective coatings provide superior performance and durability
- Wide Operating Temperature Range: Performs reliably in temperatures from -5°C to +70°C, ensuring stability in different environments
Applications
- High-Power Laser Systems: Suitable for systems requiring precision collimation of high-power laser beams
- Optical Amplifiers: Ensures efficient signal amplification with minimal loss
- DWDM Systems: Ideal for dense wavelength division multiplexing systems, where signal integrity is critical
- Research and Development: Perfect for use in experimental setups requiring high power and precision
