Multimode Fiber Collimator
Description

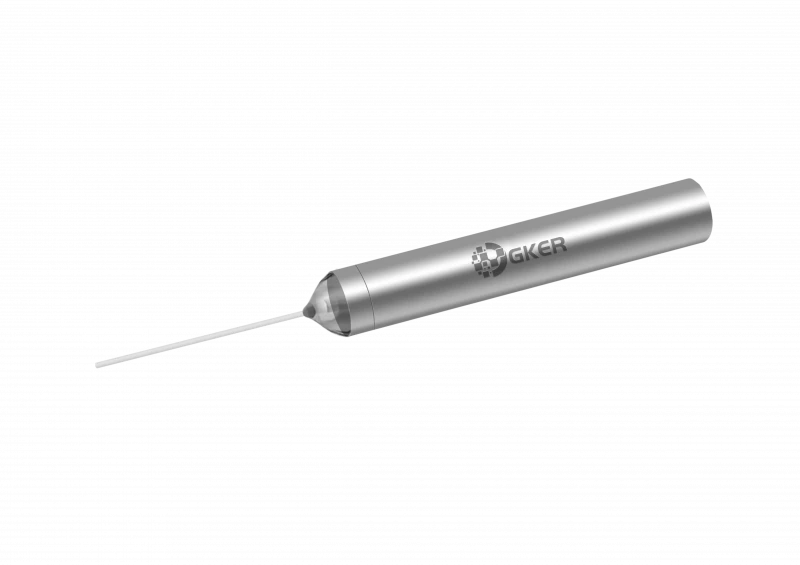

The GKER Photonics Multimode Fiber Collimator (GK-MMC Series) is a high-performance optical component designed to collimate light exiting from a multimode fiber into a parallel beam. This collimator is an essential element for in-line fiber optic components, such as isolators and wavelength division multiplexers (WDMs), making it a crucial part of advanced optical systems. It is engineered with precision to deliver low insertion loss and high return loss, ensuring minimal signal degradation and maximum efficiency.
The collimator’s design incorporates a high-quality anti-reflection (AR) coating, which enhances its ability to handle high optical power levels. This feature makes it suitable for demanding applications where power handling is critical. The collimator is available with various customization options, including different lens diameters, working distances, and fiber types, to meet the specific requirements of your optical systems.
With its robust construction and reliable performance across a wide temperature range, the GK-MMC Series Multimode Fiber Collimator is ideal for both standard and specialized optical applications.
Multimode Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1310, 1550, or, specified nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 5, or specified mm |
| Typ. Insertion Loss: | 0.20 dB |
| Max. Insertion Loss: | 0.25 dB |
| Min. Return Loss: | 35 dB |
| Max. Tensile Load: | 5 N |
| Fiber Type: | Multimode Fiber 105/125, 62.5/125, 50/125 µm, or specified - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Ensures efficient light transmission with a typical insertion loss of just 0.20 dB
- High Return Loss: Provides excellent signal reflection with a minimum return loss of 35 dB
- High Power Handling: Equipped with high-quality AR coating for managing high optical power levels
- Customizable Options: Available in various lens diameters, working distances, and fiber types to suit specific needs
- Durable Construction: Designed to perform reliably in a wide operating temperature range from -5°C to +70°C
Applications
- Optical Communication Systems: Ideal for use in fiber optic isolators and wavelength division multiplexers
- Laser Systems: Suitable for high-power laser applications requiring precise light collimation
- Testing and Measurement: Used in optical testing equipment to ensure accurate and reliable measurements
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The collimator is primarily used in optical communication systems, including fiber optic isolators and WDMs.
Yes, the collimator features a high-quality AR coating, enabling it to handle high optical power levels.
The typical insertion loss is 0.20 dB, ensuring efficient light transmission.
The available center wavelengths are 1310 nm, 1550 nm, or specified wavelengths.
It is compatible with multimode fibers including 105/125, 62.5/125, and 50/125 µm fibers.
Yes, it offers various customization options such as different lens diameters, working distances, and fiber types.
The collimator operates reliably within a temperature range of -5°C to +70°C.
The minimum return loss provided is 35 dB, ensuring excellent signal reflection.
Yes, it is suitable for high-power laser applications that require precise light collimation.
