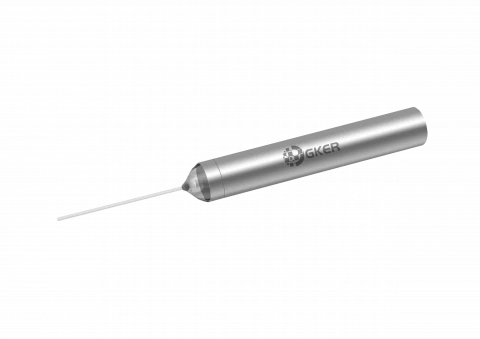

Polarization Maintaining Single Fiber Collimator
Description
The 1064 nm PM Fiber Collimator is a basic element for in-line PM fiber optics
components, such as PM isolator and PM FWDM. It has high extinction ratio,
low insertion loss and high return loss. The unique processing and high quality
AR coating also enable this PM fiber collimator to handle high laser power.
Polarization Maintaining Single Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 5 or specify mm |
| Typ. Insertion Loss: | 0.25 dB |
| Max. Insertion Loss: | 0.30 dB |
| Typ. Extinction Ratio: | 25 dB |
| Min. Extinction Ratio: | 23 dB |
| Min. Return Loss: | 55 dB |
| Max.Optical Power (Continuous Wave): | 300 mW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | PM 980 Panda Fiber - |
| Operating Temperature: | - 5 to + 70 ℃ |
Features
High Extinction Ratio
Low Insertion Loss
Applications
Beam Delivery
Fiber Coupling
