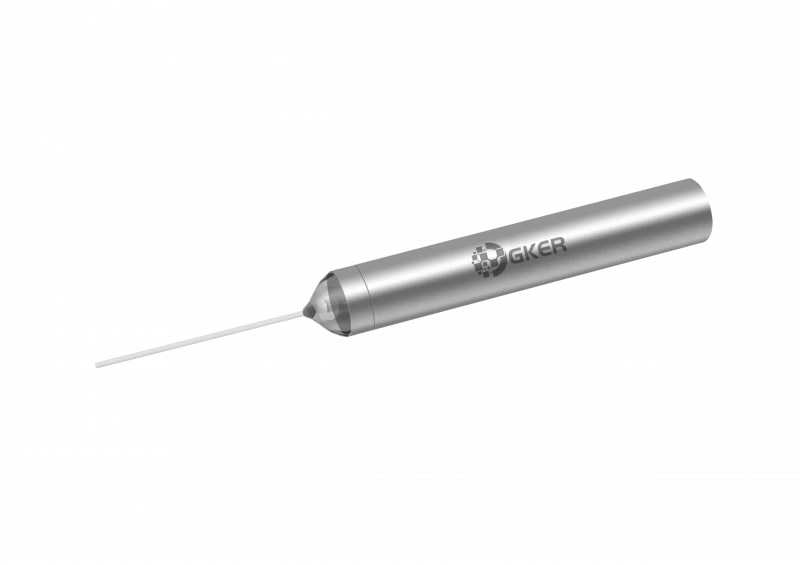

Single Fiber Collimator
Description
The GKER Photonics Single Fiber Collimator (GK-C Series) is an essential component for in-line fiber optic systems, offering superior performance in applications such as isolators and FWDMs (Filter Wavelength Division Multiplexers). This collimator is meticulously engineered to minimize insertion loss and maximize return loss, ensuring optimal efficiency and signal integrity in high-performance optical networks.
The advanced AR (anti-reflection) coating on the lens surfaces enhances power handling capabilities, making this collimator ideal for both standard and high-power applications. Whether deployed in telecommunications, medical devices, or industrial laser systems, the GK-C Series delivers consistent and reliable performance.
With multiple wavelength options, customizable working distances, and various lens diameters, the GK-C Series can be tailored to meet the specific requirements of your application. The design also supports a wide operating temperature range, ensuring stability and durability even in demanding environments.
Its robust construction, coupled with high-quality materials, ensures long-term stability and minimal maintenance, making it a cost-effective solution for critical optical systems. The GKER Photonics Single Fiber Collimator is not just a component; it's a key enabler of high-efficiency optical systems, designed to support the ever-growing demand for high-speed data transmission and precision in modern fiber optic networks.
Single Fiber Collimator
Specifications |
|
|---|---|
| Center Wavelength (λc): | 310, 1480, 1550 orspecified nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Working Distance: | 5 - 50 51 - 100 101 - 250 251 - 500 mm |
| Typ. Insertion Loss: | 0.25 0.25 0.3 0.5 dB |
| Max. Insertion Loss: | 0.30 0.35 0.4 0.6 dB |
| Beam Diameter (1/e²): | 0.45 ± 0.05 0.75 ± 0.05 0.95 ± 0.05 mm |
| Min. Return Loss: | 55 dB |
| Max. Optical Power: | 0.3,0.5.…3 W |
| Max. Tensile Load: | 5 N |
| Fiber Type: | SMF-28 Fiber - |
| Operating Temperature: | -5 to +70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Typical values as low as 0.25 dB, ensuring minimal signal degradation
- High Return Loss: Provides a minimum return loss of 55 dB, enhancing signal integrity
- High Power Handling: Capable of handling up to 3 W of optical power, ideal for high-power applications
- Customizable Working Distance: Available with working distances from 5 mm to 500 mm for versatile applications
- High-Quality AR Coating: Ensures optimal performance and durability with high power tolerance
- Versatile Lens Options: Supports both C Lens and GRIN Lens, customizable to specific requirements
Applications
- Telecommunications: Ideal for in-line components like isolators and FWDMs in telecom networks
- Data Communications: Ensures reliable signal transmission in high-speed data networks
- Laser Systems: Suitable for high-power laser collimation and beam delivery systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
Used in telecommunications, medical devices, industrial laser systems, and fiber optic sensors.
0.25 dB for 5-50 mm, 0.3 dB for 51-100 mm, 0.35 dB for 101-250 mm, and 0.5 dB for 251-500 mm.
Capable of handling up to 3 W of optical power.
Supports center wavelengths of 1310 nm, 1480 nm, 1550 nm, or specified.
Provides a minimum return loss of 55 dB.
Yes, working distances can be customized from 5 mm to 500 mm.
Operates reliably between -5°C to +70°C, with storage temperatures from -40°C to +85°C.
Uses SMF-28 Fiber for optimal performance.
Available in 1.8 mm and 1.0 mm lens diameters.
Yes, the high-quality AR coating and design allow it to handle high-power applications.
