1.0um High Power Chirped FBG for Fiber Laser
Description
The 1.0 µm High Power Chirped Fiber Bragg Grating (FBG) from GKER Photonics is a premium reflector designed for advanced fiber laser applications. Utilizing optimized chirped FBG writing technology, this component is crafted in specialty double-clad optical fiber, making it suitable for both continuous and pulsed high-power fiber lasers. The FBG is specifically engineered for use in 1.0 µm wavelength fiber lasers, accommodating a broad range of fiber types from single-mode to large mode area (LMA) fibers.

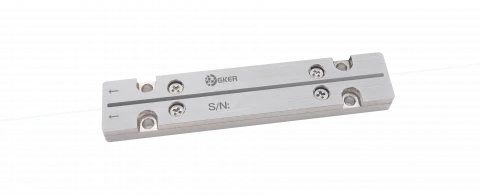

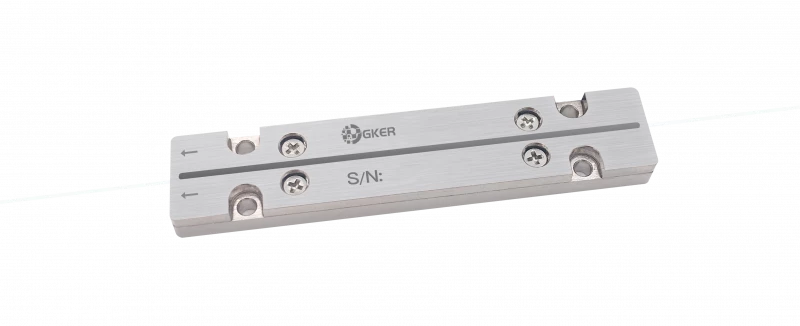

This product is capable of handling pump powers exceeding 3000W, making it ideal for high-demand applications. GKER offers a variety of bandwidth options and precise reflectivity matching for different operational needs. The product is available in either a recoated configuration or with a heat-dissipative metal housing, ensuring robust performance and longevity in even the most demanding environments.
GKER’s 1.0 µm High Power Chirped FBG is characterized by its low temperature slope, high conversion efficiency, and outstanding reliability, making it a trusted choice for high-power fiber laser systems. Whether used in industrial, medical, or research applications, this FBG provides exceptional performance and stability.
1.0um High Power Chirped FBG for Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength Range: | 1018-1090nm |
| FBG Length: | Not Specified |
| Reflectivity: | Not Specified |
| Typical Central Wavelength¹: | 1018, 1050, 1064, 1070, 1080, 1090 nm |
| Tolerance On Central Wavelength: | 1 nm |
| Type Of Reflector: | HR LR - |
| Peak Reflectivity²: | >99.5 10±2 % |
| FWHM² (-3dB): | 2~3±0.3 1±0.1 nm |
| Side Mode Suppression Ratio: | 20 10 dB |
| Wavelength Mismatch (LR To HR): | 0.2 nm |
| Input/output Fiber Length: | 1 m |
| Package Type: | Recoated or High Power Metal Housing - |
Features
- Low Temperature Slope: Ensures stable operation across a wide temperature range
- High Conversion Efficiency: Maximizes the power output with minimal loss
- High Power Handling: Supports pump powers exceeding 3000W
- Outstanding Reliability: Designed for long-term, stable performance
- Versatile Fiber Compatibility: Suitable for a range of fiber types from single mode to large mode area (LMA) fibers
Applications
- High Power Fiber Lasers: Ideal for industrial cutting, welding, and material processing
- Pulsed Fiber Lasers: Suitable for medical applications, precision machining, and scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
Designed for high-power continuous and pulsed fiber lasers, ideal for industrial, medical, and scientific applications.
It supports pump powers exceeding 3000W, making it suitable for high-demand environments.
Compatible with single-mode and large mode area (LMA) fibers, offering versatility for various setups.
Available in either a recoated configuration or a heat-dissipative metal housing, depending on the application needs.
It features an extremely low temperature slope, ensuring stable performance across a wide temperature range.
The typical central wavelengths are 1018, 1050, 1064, 1070, 1080, and 1090 nm, with a tolerance of ±1 nm.
The peak reflectivity exceeds 99.5%, ensuring high efficiency and minimal signal loss.
Provides a side mode suppression ratio of 20 dB for HR and 10 dB for LR configurations, maintaining signal integrity.
The typical FWHM is 2±0.3 nm for HR and 3±0.3 nm for LR, allowing precise wavelength filtering.
Yes, it is specifically designed to handle high-power laser applications with outstanding reliability and performance.
