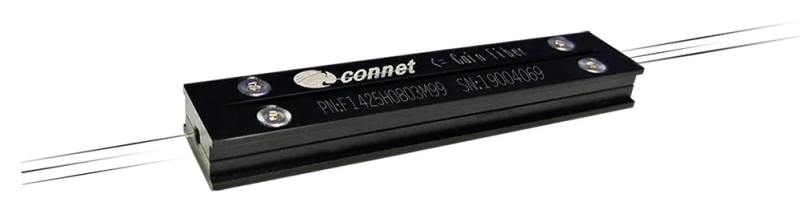

1.5um High Power Chirped FBG
Description
The 1.5µm High Power Chirped Fiber Bragg Grating (FBG) by Connet is a premium optical component designed to meet the demands of high-performance laser systems operating at 1550nm. Written in specialty double-clad optical fibers, this chirped fiber Bragg grating leverages advanced fabrication techniques to ensure high precision, low thermal drift, and excellent reflectivity. Ideal for both continuous wave (CW) and pulsed high-power fiber lasers, this 1.5um FBG is tailored to applications where stability, mode control, and thermal handling are critical.
The product is optimized for use with single-mode and large mode area (LMA) fibers, featuring handling capacity of up to 50W pump power. Offered exclusively in recoated form, the grating is available in multiple bandwidths and reflectivity configurations to meet specific laser cavity requirements. Its outstanding optical performance and reliability make it an essential element in today’s industrial, medical, and scientific fiber laser systems.
Connet can provide various bandwidths and accurately matched high and low reflectivity gratings for different applications.
1.5um High Power Chirped FBG
Specifications |
|
|---|---|
| Center Wavelength Range: | 1530 – 1605 nm |
| FBG Length: | Custom |
| Reflectivity: | >1%, >90% |
| Typical Central Wavelength: | 1550, 1560 nm |
| Tolerance On Central Wavelength: | 1 nm |
| Type Of Reflector: | HR/LR |
| Peak Reflectivity 2: | >99.5/10±2 % |
| FWHM (-3dB): | 0.5~3/0.1~1 nm |
| Side Mode Suppression Ratio: | 20/10 dB |
| Wavelength Mismatch (LR To HR): | 0.2 nm |
| Fiber Type: | SM-1550-GDF |
| Power Handling Of Pump: | 50 W |
| Input/output Fiber Length: | 1 m |
| Package Type: | Recoated Only |
Features
- Extremely low temperature slope
- High conversion efficiency
- High power handling
- Outstanding reliability
- Wide variety of fiber types
- High-precision chirped fiber Bragg grating designed for 1.5µm wavelength range

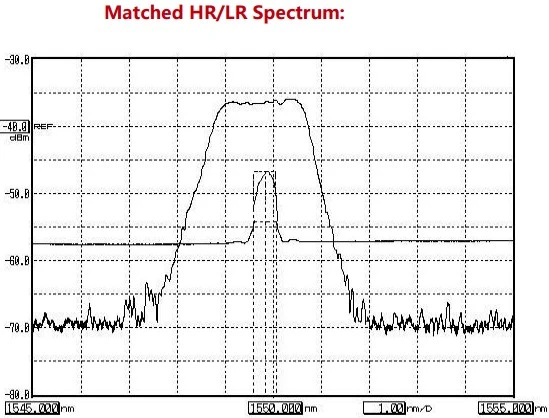

- Peak reflectivity >99.5% (HR) and ~10% (LR) for cavity optimization
- Bandwidth range from 0.5nm to 3nm for flexible spectral control
- Wavelength options include 1550nm and 1560nm (customizable)
- Compact and durable recoated fiber design
- Excellent thermal stability and low temperature slope
- Engineered for single-mode and LMA fibers (SM-1550-GDF)
- High side mode suppression ratio for spectral purity
Applications
- High power fiber laser
- Pulsed fiber laser
- High power fiber lasers operating at 1.5µm
- Pulsed laser systems in telecommunications and sensing
- Eye-safe laser sources for LIDAR and rangefinding
- Laser cavities requiring stable reflection and dispersion management
- OEM fiber laser modules and integration
- Medical and environmental laser applications
- Spectroscopy systems using 1.5µm sources
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions

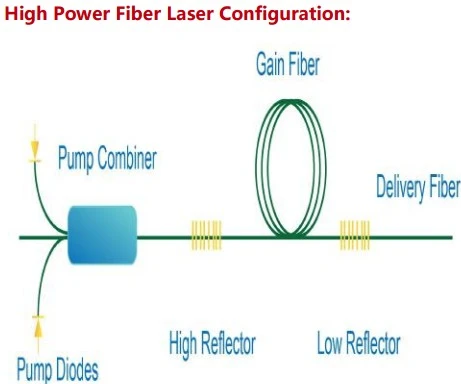

It serves as a high-efficiency cavity reflector for 1.5µm high-power fiber lasers, supporting both CW and pulsed configurations.
Standard options include 1550nm and 1560nm, with ±1nm tolerance. Other wavelengths are available on request.
This 1.5um FBG is rated to handle pump power up to 50W.
It is designed for SM-1550-GDF (9/125 µm, NA=0.12/0.46), but other types can be requested.
Yes, Connet supports custom reflectivity levels and bandwidths based on application requirements.
The grating is available in a recoated configuration only. Metal housing is not supported for this version.
Chirped FBGs allow for dispersion compensation and pulse shaping, enhancing spectral control and improving laser performance.
