1.0um FBG Fiber Bragg Grating for Fiber Lasers
Description

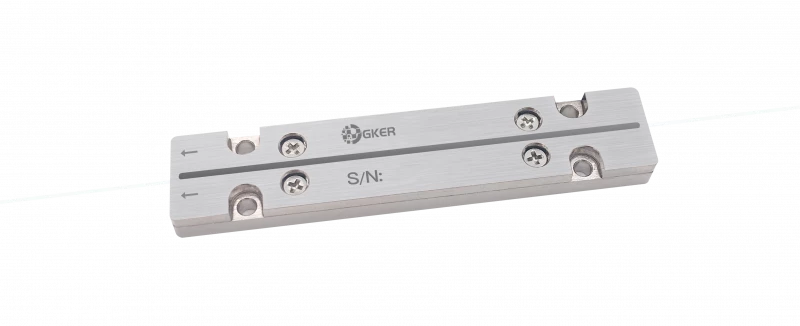

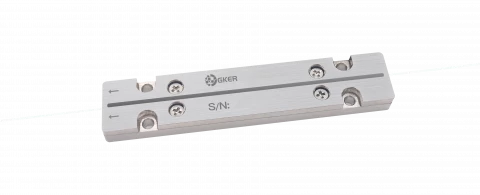

GKER high-quality 1.0um fiber grating reflectors (also called Fiber Laser cavity mirrors) are written in specialty double clad optical fiber with optimized chirped Fiber Bragg Grating (FBG) writing technology. They are specially designed for 1.0um high power continuous and pulsed fiber lasers, suitable for single-mode fiber to the large mode field (LMA) fiber, the pump power handling capacity can reach more than 3000W.
GKER can provide various bandwidths and accurately matched high and low reflectivity gratings for different applications. They are offered in heat dissipative package or recoated only.
1.0um FBG Fiber Bragg Grating for Fiber Lasers
Specifications |
|
|---|---|
| Center Wavelength Range: | 1018-1130nm |
| FBG Length: | Not Specified |
| Reflectivity: | Not Specified |
| Typical Central Wavelength: | 1018, 1050, 1064, 1070, 1080, 1090 nm |
| Tolerance On Central Wavelength: | 1 nm |
| Type Of Reflector: | HR: >99.5, LR: 10 % |
| FWHM(-3dB): | HR: 3, LR: 1 nm |
| Side Mode Suppression Ratio: | 20 dB |
| Wavelength Mismatch (LR To HR): | 0.2 nm |
| Input/output Fiber Length: | 1 m |
Features
- Extremely Low Temperature Slope
- High Conversion Efficiency
- High Power Handling
- Outstanding Reliability
- Wide Variety of Fiber Types
Applications
- High Power Fiber Laser
- Pulsed Fiber Laser
