2.0um High Power Chirped FBG
Description
The 2.0µm High Power Chirped Fiber Bragg Grating (FBG) from Connet is a specialized component designed for demanding fiber laser applications in the 2.0µm wavelength range. These gratings are written on double-clad specialty optical fibers using advanced chirped fiber Bragg grating technology to deliver high precision, power handling, and thermal stability.
Optimized for both continuous-wave and pulsed high-power fiber lasers, this high power chirped FBG is suitable for configurations requiring single-mode to large-mode-area (LMA) fiber coupling. With pump power handling exceeding 200W and customizable bandwidths and reflectivities, this 2um FBG is available in both recoated and metal heat-dissipating packages, providing flexible integration into a wide range of laser architectures.
Whether you're developing advanced pulsed systems or robust CW fiber lasers, Connet’s chirped FBGs ensure stable cavity feedback, high reliability, and minimal thermal sensitivity across industrial and research-grade applications.
Connet can provide various bandwidths and accurately matched high and low reflectivity gratings for different applications. They are offered in heat dissipative package or recoated only.
2.0um High Power Chirped FBG
Specifications |
|
|---|---|
| Center Wavelength Range: | 1900 – 2100 nm |
| FBG Length: | Custom |
| Reflectivity: | >1%, >90% |
| Typical Central Wavelength: | 1908, 1940, 1980 nm |
| Tolerance On Central Wavelength: | 1 nm |
| Type Of Reflector: | HR/LR |
| Peak Reflectivity: | >99.5/10±2 % |
| FWHM (-3dB): | 2±0.2/1±0.1 nm |
| Side Mode Suppression Ratio: | 20/10 dB |
| Wavelength Mismatch (LR To HR): | 0.2 nm |
| Input/output Fiber Length: | 1 m |

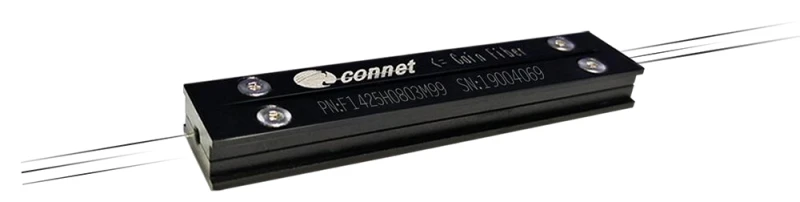

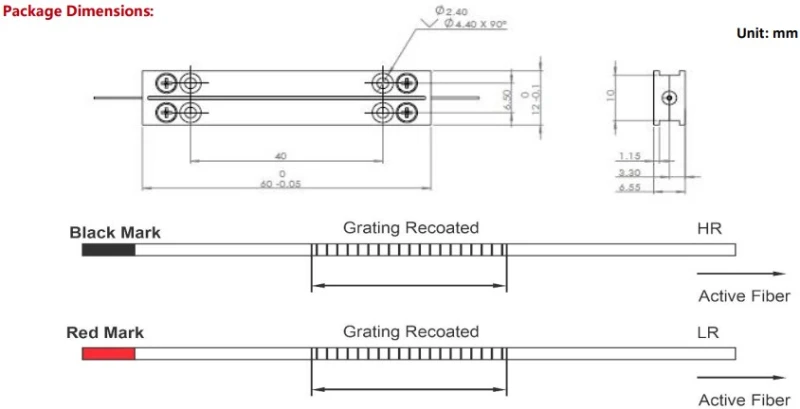

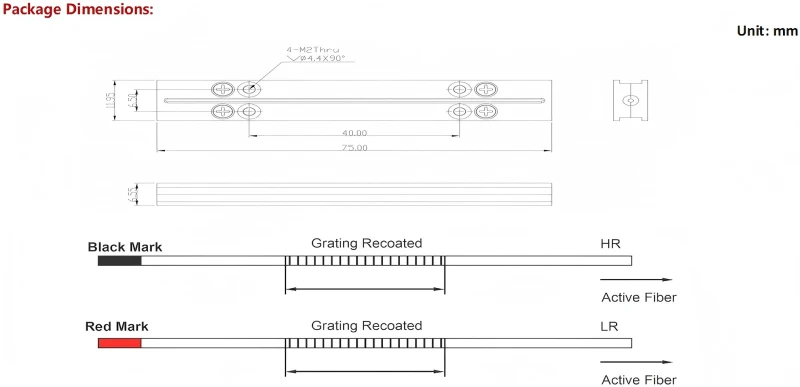

| Package Type: | Recoated or High Power Metal Housing |
Features
- Extremely Low Temperature Slope
- High Conversion Efficiency
- High Power Handling
- Outstanding Reliability
- Wide Variety of Fiber Types
- Chirped fiber Bragg grating technology for tailored wavelength reflection
- Central wavelengths available at 1908nm, 1940nm, and 1980nm (customizable)
- High reflectivity >99.5% (HR) and controlled 10±2% (LR) options
- Handles pump powers >200W with proper packaging
- Extremely low temperature slope for stable performance
- Available in recoated fiber or high-power metal package
- Compatible with multiple fiber core/cladding sizes: 10/130, 25/250, 25/400 μm
Applications
- High power fiber lasers
- Pulsed fiber lasers
- High power 2.0μm fiber laser cavities
- Eye-safe LIDAR and remote sensing
- Medical-grade fiber laser sources
- Industrial laser cutting and welding systems
- Spectroscopy and nonlinear optics
- Aerospace and defense laser platforms
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Standard wavelengths include 1908nm, 1940nm, and 1980nm, with custom wavelengths available upon request.
It is manufactured on double-clad specialty fiber and can handle pump powers exceeding 200W, ideal for high-power laser cavities.
Yes, it is designed for both CW and pulsed 2um fiber laser configurations.
HR (High Reflector) offers >99.5% reflectivity, while LR (Low Reflector) offers controlled 10±2% reflectivity for optimized cavity design.
Available for 10/130μm, 25/250μm, and 25/400μm fibers; other fiber types can be customized on request.
The product can be supplied as recoated fiber or in a heat-dissipative metal housing for high power operation.
Chirping enables broader reflection bandwidths and dispersion compensation, improving pulse shaping and laser stability.
