Chirped FBG
Description
The Chirped Fiber Bragg Grating (FBG) is a precision-engineered optical component designed for advanced fiber optic applications requiring dispersion management and wavelength-selective reflection. Unlike uniform FBGs, chirped FBGs feature a variable grating period along their length, enabling different Bragg wavelengths to reflect at distinct positions within the grating. This property introduces controlled optical path differences that make the Chirped FBG ideal for compensating dispersion in long-distance fiber optic networks.

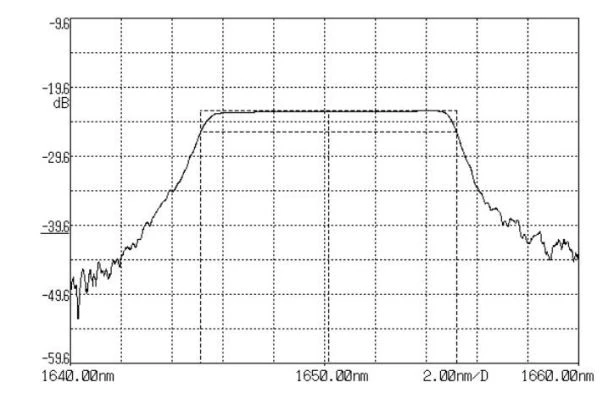

With a wide reflection bandwidth, low insertion loss, and high reflectivity, the Chirped FBG is widely used in applications such as EDFA gain flattening, ASE noise suppression, and band rejection filtering for WDM systems. Supported center wavelengths range from 1064 nm to 1650 nm, with customizable options for fiber type, recoating material, and connector interfaces.
Whether integrated into high-speed communication links or precision sensing systems, this FBG delivers high performance and reliability, ensuring stable optical characteristics even in demanding environments. Designed to meet industry needs, it is available with SMF-28 compatible fibers and customizable pigtail lengths.
Chirped FBG
Specifications |
|
|---|---|
| Center Wavelength Range: | 1064 – 1650 nm |
| FBG Length: | 1 mm, 15 mm, 10 mm, 5 mm, 3 mm |
| Reflectivity: | 10 - 90% |
| Bandwidth (FWHM): | 10 (1-15) nm |
| SLSR: | >10 dB |
| Insertion Loss: | <0.5 dB |
| FBG Recoating: | None, Acrylate, Polyimide, or Custom |
| Tensile Strength: | >100 kpsi |
| Fiber Type: | SMF-28 or Compatible |
| Pigtail Length: | 1 (Typical), or Custom m |
| Optical Connector: | Bare Fiber, FC/APC, SC/APC, or Custom |
| Wavelength Tolerance: | ±0.25 nm |
| Reflectivity: | 10 – 99 % |
Features
- Variable Grating Period: Enables precise dispersion compensation across wide bandwidths
- High Reflectivity: Adjustable reflectivity from 10% to 99% based on application needs
- Low Insertion Loss: Ensures minimal signal attenuation with <0.5 dB insertion loss
- Customizable Design: Options for recoating, connector type, and pigtail length
- Robust Construction: Withstands >100 kpsi tensile strength for long-term stability
Applications
- EDFA Gain Flattening Filters: Equalizes gain across broadband amplification
- Dispersion Compensation: Corrects chromatic dispersion in long-haul fiber networks
- ASE Noise Suppression: Reduces amplified spontaneous emission in optical amplifiers
- WDM Band Rejection Filtering: Effective for 1300/1550 nm spectral blocking
- Optical Sensing Systems: Enhances performance in dynamic strain and temperature sensing setups
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
A Chirped FBG is a fiber grating where the grating period varies along the axial direction, allowing for dispersion compensation in long-distance fiber communication.
The features of Chirped FBG include wide bandwidth, low insertion loss, and high reflectivity.
Chirped FBG can be used for EDFA gain flattening filter, dispersion compensation, ASE filtering and noise suppression, and WDM 1300/1550nm band rejection filter.
The specifications of Chirped FBG include center wavelength options, wavelength tolerance, reflectivity range, bandwidth, SLSR, insertion loss, FBG recoating options, tensile strength, fiber type compatibility, pigtail length, and optical connector options.
For more details about Chirped FBG, you can visit the At Grating website or contact sales@atgrating.com.
