os1100 - Fiber Bragg Grating
Description

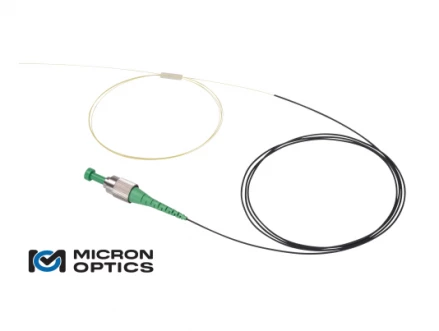

The os1100 Fiber Bragg Grating (FBG) is designed for use in fiber optic sensing applications. It is a two meter long polyimide coated optical fiber with one FBG spaced at one meter intervals. Fiber Bragg gratings are the fundamental elements upon which most fiber optic sensors are based. An FBG is an invisible reflector inside the core of the fiber that is set to a specific wavelength of light.
When the fiber where an FBG is located is exposed to strain or temperature, the FBG’s “center wavelength” shifts to a higher or lower wavelength. The direction and magnitude of the shift is proportional to the change in strain or temperature.
Each os1100 is built with one FBG at standard center wavelengths. os1100’s are used in applications ranging from basic experiments with FBGs to construction of complex transducers containing one or more FBGs. The polyimide coating provides excellent transfer of strain through the fiber coating to the FBG in the fiber core. Polyimide also performs well over a wide temperature range. One or two FC/APC connectors, and loose buffer tube protection, are available as packaging options.
os1100 - Fiber Bragg Grating
Specifications |
|
|---|---|
| Center Wavelength Range: | 1512-1588nm |
| FBG Length: | 10 mm |
| Reflectivity: | >70% |
Features
- Optional FC/APC connector and loose buffer tube for ease of handling
- Clearly marked FBG location
- Non metallic construction
Applications
- Longevity – resistant to lightning, corrosion, EMI.
- Passive – no spark hazard, no power at sensor
- Multiplexing – many sensors, few cables, long range
- Versatility – small size, long distances and sense many properties with one system
- Installation – weld, glue, embed, connect in series
- Ruggedness – fatigue over 100 million cycles, wide temperature range
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Longevity – resistant to lightning, corrosion, EMI. Passive – no spark hazard, no power at sensor. Multiplexing – many sensors, few cables, long range. Versatility – small size, long distances and sense many properties with one system. Installation – weld, glue, embed, connect in series. Ruggedness – fatigue over 100 million cycles, wide temperature range.
Fiber Bragg gratings are the fundamental elements upon which most fiber optic sensors are based. An FBG is an invisible reflector inside the core of the fiber that is set to a specific wavelength of light.
os1100’s are used in applications ranging from basic experiments with FBGs to construction of complex transducers containing one or more FBGs.
The os1100 Fiber Bragg Grating (FBG) is a two meter long polyimide coated optical fiber with one FBG spaced at one meter intervals.
Optional FC/APC connector and loose buffer tube for ease of handling, clearly marked FBG location, non-metallic construction.
