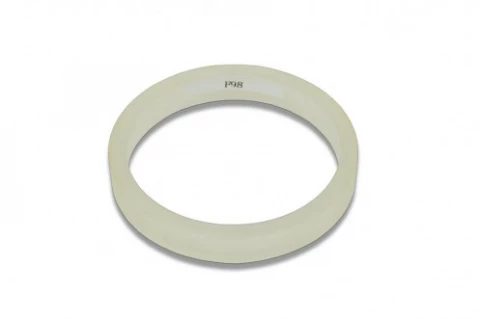

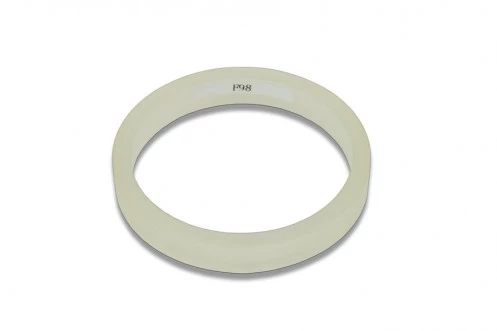

Free Standing PM Fiber Coil F98 FOG
Description
The F98 Fiber Gyro Coil by CSRayzer is purpose-built for integration into Φ98 mm closed-loop Fiber Optic Gyroscopes (FOGs), delivering medium precision performance in a compact and robust package. Engineered using CSRayzer’s proprietary high-performance fiber coil winding system (ZKRZ-RHJ4.0), the F98 coil is ideal for cost-sensitive applications that still demand reliability, low noise, and stable performance.
Constructed with PM1550/80/135 polarization-maintaining fiber, the F98 coil operates at 1550 nm, providing excellent insertion loss control and minimal signal degradation. With 90 precision-controlled turns across 52 layers and a total winding length of 1230 meters, this fiber coil ensures dependable output with strong resistance to vibration and environmental stress. It is well-suited for vehicle positioning systems, aircraft and ship attitude systems, and satellite attitude control units.
Its compact inner diameter (75 mm) and low profile make it ideal for embedded navigation subsystems. CSRayzer also offers custom coil designs and winding services tailored to your unique integration requirements.
Free Standing PM Fiber Coil F98 FOG
Specifications |
|
|---|---|
| Winding Layers: | 52 |
| Winding Length: | 1220 – 1240 m |
| Fiber Type: | PM1550/980/780/etc. |
| Operating Wavelength: | 1550 nm |
| Fiber Inner Diameter: | 75±0.1 |
| Height (Exclude Boss): | 12.5±0.1 mm |
| Outer Diameter: | ≤91 mm |
| Number Of Turns: | 90±1 T |
| Fiber Type: | PM1550/80/135 |
| Polarization CrossTalk @ Room Temperature: | ≤-22 dB |
| Polarization CrossTalk Variation @ Full Temperature: | ≤3 dB |
| Insertion Loss: | ≤ 0.6 dB |
| Insertion Loss Variation @Full Temp.: | ≤ 0.1 dB |
| Working Temperature: | -40℃~65℃ |
Features
- Medium Precision Design: Optimized for Φ98 mm closed-loop FOG systems
- Low Insertion Loss: ≤ 0.6 dB ensures efficient signal transmission
- Compact Structure: 75 mm inner diameter, ≤ 91 mm outer diameter
- High Reliability: Vibration-resistant and long service life
- Customizable Options: Coil geometry and length tailored to application
Applications
- Vehicle Navigation: Ideal for land-based positioning systems
- Satellite Attitude Control: Supports accurate orientation in spaceborne systems
- Aircraft & Ship Systems: Enhances inertial attitude measurements
- North Finder Systems: Used in directional orientation applications
- OEM Integration Services: Supports custom fiber coil development and winding
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The fiber type used in the CSRayzer F98 Fiber Gyro Coil is PM1550/80/135.
The operating wavelength of the CSRayzer F98 Fiber Gyro Coil is 1550 nm.
The polarization crosstalk at room temperature for the CSRayzer F98 Fiber Gyro Coil is ≤-22 dB.
The insertion loss for the CSRayzer F98 Fiber Gyro Coil is ≤0.6 dB.
The working temperature range for the CSRayzer F98 Fiber Gyro Coil is -40℃ to 65℃.
The CSRayzer F98 Fiber Gyro Coil is used in various applications, including vehicle positioning and navigation, satellite attitude control, aircraft and ship attitude system, and north finder.
The Free Standing PM Fiber Coil F98 FOG is designed for closed-loop ɸ98 Fiber Optic Gyroscope, with medium precision.
The features of the Free Standing PM Fiber Coil F98 FOG include low Shupe error, low thermal stress, high anti-vibration ability, low insertion loss, and compact structure.
The Free Standing PM Fiber Coil F98 FOG can be used for vehicle positioning and navigation, satellite attitude control, aircraft and ship attitude system, and north finder.
Yes, all the fiber coils are available to be customized according to customer's requirements.
The working temperature range of the Free Standing PM Fiber Coil F98 FOG is -40℃ to 65℃.
