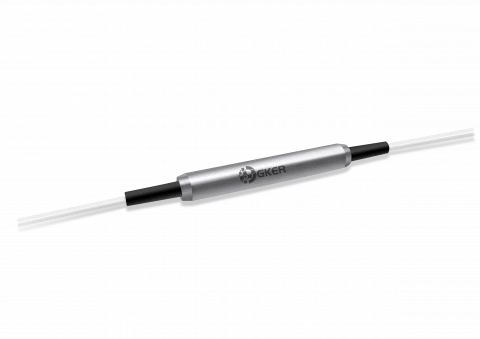

1310-1550nm Multimode Fiber Filter Coupler
Description
GKER Photonics Multimode Fiber Filter Coupler (GK-MMFC Series) is a premium optical component meticulously designed for advanced multimode fiber communication systems. Engineered with precision, this coupler ensures exceptionally low excess loss, thereby preserving the integrity of the optical signal. Its broad operating wavelength range covers key communication bands, making it versatile for various applications, including local area networks (LAN), fiber sensors, and testing instruments.
The GK-MMFC Series is built to deliver high reliability and stability under varying environmental conditions, ensuring consistent performance over time. Available in both 1x2 and 2x2 configurations, this coupler supports various tap ratios, offering flexibility in power distribution. Whether you need to split or combine signals with minimal loss, this coupler is designed to meet the rigorous demands of modern optical networks.
With a robust design that includes a wide operating temperature range from -5°C to +70°C and a storage temperature range of -40°C to +85°C, the GK-MMFC Series is suitable for deployment in diverse settings. Additionally, it supports multiple fiber types, including 62.5/125, 50/125, and 105/125 µm multimode fibers, making it adaptable to different network requirements. The coupler's construction is also optimized for minimal uniformity loss, particularly at a 50% tap ratio, ensuring reliable performance across all channels.
Ideal for both new installations and upgrades to existing systems, the GKER Photonics Multimode Fiber Filter Coupler offers a dependable solution for enhancing the efficiency and performance of your multimode fiber networks.
1310-1550nm Multimode Fiber Filter Coupler
Specifications |
|
|---|---|
| Type: | Other / Not specified |
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Wavelength: | 1310 1550 nm |
| Fiber Type: | SMF-28e |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Center Wavelength: | 1310, 1550 nm |
| Operating Wavelength Range: | ± 40 nm |
| Configuration: | 1 x 2 2 x 2 - |
| Max. Excess Loss: | 0.7 1.0 dB |
| Max. Uniformity: | 0.6 0.8 dB |
| Tap Ratio: | 5 ± 1.0, 50, or specifiied % |
| Min. Return Loss: | 35 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Type: | Multimode Fiber,62.5/125,50/125,105/125 µm - |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | - 5 to + 70 ℃ |
Features
- Low Excess Loss: Minimal signal loss for enhanced performance
- Broad Operating Band: Supports a wide range of wavelengths (1310 nm, 1550 nm)
- High Stability and Reliability: Durable construction for consistent operation in diverse environments
- Versatile Configuration Options: Available in 1x2 and 2x2 configurations to meet different application needs
- Wide Temperature Range: Operates effectively from -5°C to +70°C with storage capability from -40°C to +85°C
Applications
- Local Area Networks (LAN): Ideal for fiber-based networking within enterprises
- Multimode Fiber Communication Systems: Enhances signal distribution in multimode optical networks
- Fiber Sensors: Suitable for various sensing applications requiring stable signal monitoring
- Testing Instruments: Reliable component for use in fiber optic testing setups
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The coupler is available in two standard wavelength options: 1310 nm and 1550 nm. Custom wavelengths can also be specified as per your requirements.
The GK-MMFC Series is available in 1×2 and 2×2 configurations, allowing for flexibility in optical signal splitting.
The maximum excess loss for the GK-MMFC Series is 0.7 dB for the 1x2 configuration and 1.0 dB for the 2x2 configuration.
Yes, the coupler allows for various tap ratios including 5/95, 50/50, or a custom-specified ratio to meet specific application needs.
The GK-MMFC Series supports Multimode Fibers, including 62.5/125 µm, 50/125 µm, and 105/125 µm fibers.
The coupler is designed to operate in temperatures ranging from -5°C to +70°C, making it suitable for various environmental conditions.
The maximum continuous wave (CW) optical power the coupler can handle is 300 mW.
Yes, the coupler is available with various connector types including FC/UPC, FC/APC, SC/UPC, and SC/APC. Custom connectors can also be specified.
The GK-MMFC Series can withstand a maximum tensile load of 5 Newtons.
Yes, the coupler is designed for high stability and reliability, ensuring consistent performance over long periods.
