1310-1550nm Polarization Maintaining Tap Coupler
Description

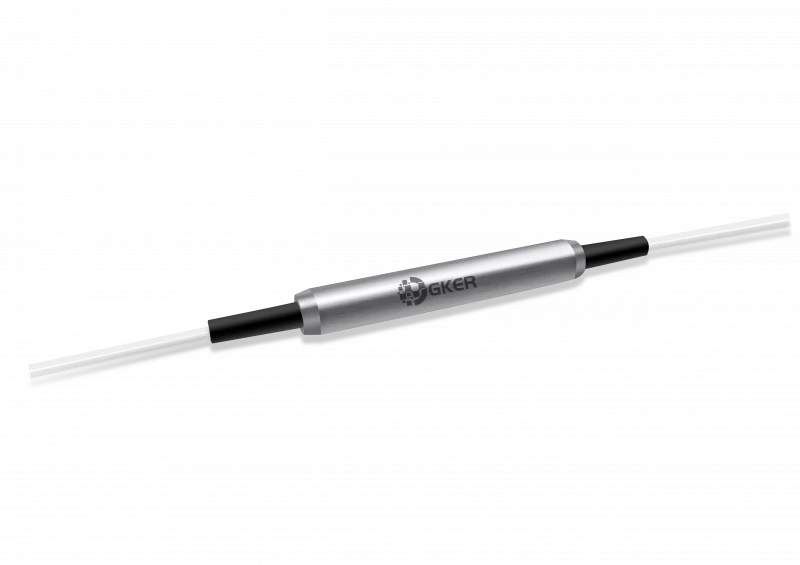

The GK-PMTC Series Polarization Maintaining Tap Coupler from GKER Photonics is designed to provide exceptional performance in optical signal distribution and monitoring. Utilizing advanced manufacturing techniques, this coupler ensures precise splitting of optical signals while maintaining high polarization stability. It features high extinction ratios and supports a range of tap ratios, including 1%, 2%, 4%, 5%, 10%, 20%, and 50%. The coupler is engineered to offer minimal excess loss and uniformity, with a maximum excess loss of 0.7 dB for 1 × 2 configurations and 1.0 dB for 2 × 2 configurations.
The GK-PMTC Series is suitable for use in demanding optical communication systems, including fiber lasers and high-performance networks. It operates effectively across a wide wavelength range of 1310 nm and 1550 nm, with a center wavelength tolerance of ± 40 nm. Built to endure harsh conditions, it withstands up to 300 mW of continuous optical power and operates within a temperature range of -5°C to +70°C, while being able to withstand storage temperatures from -40°C to +85°C.
This coupler is constructed with high-quality SMF-28 or Panda Fiber for tap ports and Panda Fiber for input and output ports, ensuring reliable performance and durability. Its robust design also includes a maximum tensile load capacity of 5 N, making it suitable for various installation environments.
1310-1550nm Polarization Maintaining Tap Coupler
Specifications |
|
|---|---|
| Type: | Other / Not specified |
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Wavelength: | 1310 1550 nm |
| Fiber Type: | SMF-28e |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Center Wavelength: | 1310, 1550 nm |
| Operating Wavelength Range: | λc ± 40 nm |
| Configuration: | 1 × 2 2 × 2 - |
| Max. Excess Loss: | 0.7 1.0 dB |
| Max. Uniformity (only For 50%): | 0.6 0.8 dB |
| Tap Ratio: | 1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10, 20 and 50 % |
| Min. Return Loss: | 50 50 dB |
| Min. Extinction Ratio: | 20 20 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | -5 to +70 ℃ |
| Storage Temperature: | -40 to +85 ℃ |
Features
- High Extinction Ratio: Ensures superior signal quality with minimal polarization-dependent loss
- Wide Range of Tap Ratios: Available tap ratios include 1%, 2%, 4%, 5%, 10%, 20%, and 50%
- Low Excess Loss: Max. excess loss of 0.7 dB for 1 × 2 configuration and 1.0 dB for 2 × 2 configuration
- Excellent Uniformity: Uniformity of 0.6 dB for 50% coupling ratio
- High Optical Power Handling: Capable of withstanding up to 300 mW of continuous wave power
- Robust Build: Max. tensile load of 5 N ensures durability
- Wide Temperature Range: Operates within -5°C to +70°C and stores from -40°C to +85°C
- Versatile Fiber Types: Uses SMF-28 or Panda Fiber for tap ports and Panda Fiber for input and output ports
Applications
- Optical Communication Systems: Ideal for power splitting and monitoring functions
- High-Performance Networks: Suitable for use in advanced optical networks requiring precise signal handling
- Fiber Lasers: Effective for applications involving high optical power and polarization sensitivity
