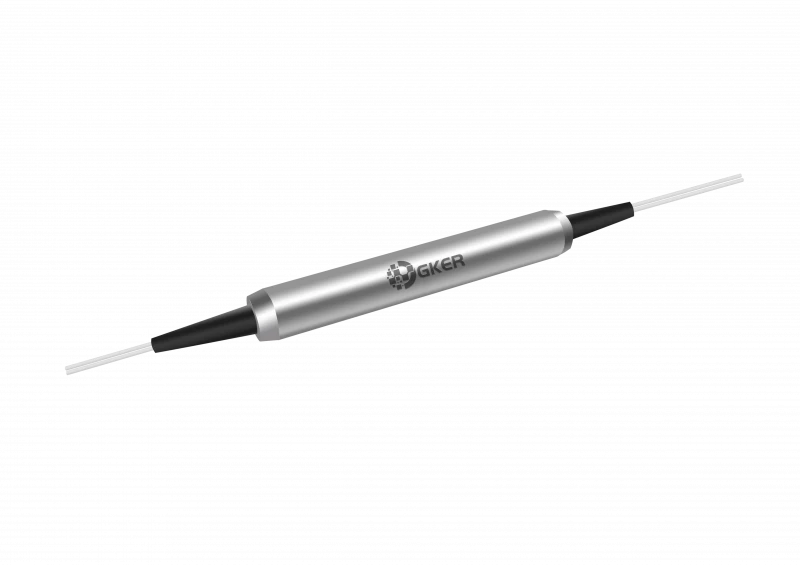

1550nm Ultra Low Ratio Tap Coupler GK-LTC Series
Description
The GK-LTC Series Ultra Low Ratio Tap Coupler from GKER Photonics is an advanced optical device designed to provide precise light tapping with extremely low ratios. This coupler is engineered for applications where only a minute fraction of the light needs to be diverted from the main signal path to the tap port, making it ideal for high-power optical systems such as fiber lasers and other critical optical sources.
Featuring tap ratios as low as 0.1%, 0.01%, and 0.001%, the GK-LTC Series enables accurate and reliable monitoring without compromising the integrity of the signal or risking damage to the photodetector. The coupler is designed to handle up to 55 watts of continuous optical power, making it suitable for use in high-power applications.
The device boasts exceptional thermal stability, maintaining performance across a wide temperature range from -40°C to +75°C. It ensures low tap insertion loss and high return loss, contributing to accurate measurement and minimal signal degradation. The GK-LTC Series also offers high reliability with minimal variation in performance, even under challenging environmental conditions.
Its robust design and precise engineering make it a valuable component in applications requiring detailed monitoring and analysis, such as optical testing, fiber laser diagnostics, and advanced fiber communication systems. With its low insertion loss, high return loss, and excellent thermal stability, the GK-LTC Series is the optimal choice for demanding optical monitoring and measurement tasks.
1550nm Ultra Low Ratio Tap Coupler GK-LTC Series
Specifications |
|
|---|---|
| Type: | Other / Not specified |
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Wavelength: | 1064, 1550 or specified nm |
| Fiber Type: | SMF-28e |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Center Wavelength (λc): | 1064, 1550 or specified nm |
| Operating Wavelength: | λc ± 10 nm |
| Coupling Ratio: | 0.1 0.01, 0.001 % |
| Tap Insertion Loss: | 30 ± 3 40 ±4 50 ± 5 dB |
| Max. Signal Insertion Loss: | 0.1 dB |
| Thermal Stability: | ≤ 0.002 dB/℃ |
| Min. Return Loss: | 55 dB |
| Max. Optical Power (Continuous Wave): | 5 W |
| Operating Temperature: | -40 to +75 ℃ |
| Storage Temperature: | -40 to +85 ℃ |
Features
- Ultra Low Tap Ratios: Available in 0.1%, 0.01%, and 0.001% for precise light splitting
- High Optical Power Handling: Supports up to 55 W of continuous wave optical power
- Exceptional Thermal Stability: Maintains performance across a wide temperature range from -40°C to +75°C
- Low Tap Insertion Loss: Ensures minimal signal disruption with a maximum tap insertion loss of 0.1 dB
- Superior Signal Integrity: Minimum return loss of 50 dB to preserve signal quality
Applications
- Optical Source Monitoring: Ideal for monitoring high-power fiber lasers and other optical sources
- Fiber Laser Testing: Suitable for use in testing and characterizing fiber lasers
- High-Power Optical Systems: Designed for environments with high optical power and stringent performance requirements
- Precision Optical Measurement: Used in precision measurement systems where minimal light tap is required
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The GK-LTC Series operates at center wavelengths of 1064 nm and 1550 nm. Custom wavelengths can be specified upon request.
The GK-LTC Series offers coupling ratios of 0.1% (30 dB), 0.01% (40 dB), and 0.001% (50 dB). Custom ratios can also be specified if needed.
The coupler can handle a maximum continuous optical power of up to 55 watts.
The GK-LTC Series is ideal for applications requiring extremely low tap ratios, such as monitoring high-power optical sources, fiber lasers, and other critical optical systems.
The GK-LTC Series exhibits excellent thermal stability, maintaining consistent performance across a wide temperature range of -40°C to +75°C.
The maximum tap insertion loss is 0.1 dB, ensuring minimal signal degradation when tapping a small fraction of light.
The GK-LTC Series uses singlemode fiber for both the input and output ports. Options for fiber types include Corning HI 1060 and Corning SMF-28.
Yes, the GK-LTC Series can be customized for specific center wavelengths, coupling ratios, and fiber types to meet unique application needs.
The coupler's dimensions and packaging are designed for ease of integration into various systems. Specific dimensions include a standard package size with options for fiber jacket types and lengths.
The presence of connectors can increase insertion loss by 0.5 dB, reduce return loss by 5 dB, and lower extinction ratio by 2 dB. These factors should be considered when designing the system.
