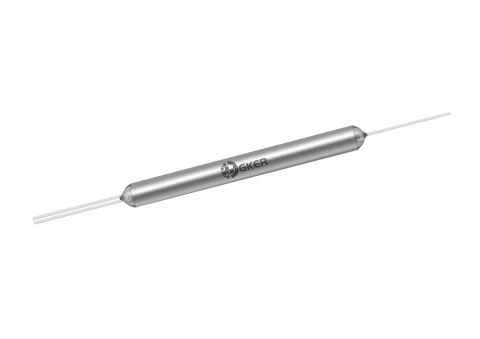

488 - 2100 nm Polarization Maintaining Fused Coupler-PMC
Description
The GKER Polarization Maintaining Fused Coupler (GK-PMC Series) is a high-performance optical component designed for precision and reliability across a broad wavelength range of 488 nm to 2100 nm. This coupler excels in applications requiring low excess loss, high polarization extinction ratio (ER), and exceptional environmental stability.
Engineered with advanced fusion technology, the GK-PMC Series offers typical excess losses as low as 0.2 dB and a high polarization extinction ratio up to 20 dB, ensuring minimal signal degradation and superior performance in polarization-sensitive applications. The coupler is available in coupling ratios from 0.01/99.99 to 50/50, catering to various needs from fine power splitting to high power handling.
Designed for durability, this coupler supports continuous wave optical power up to 2 W and maintains high performance within an operating temperature range of -5°C to +70°C and a storage temperature range of -40°C to +85°C. Its low thermal sensitivity, with a stability of ≤ 0.005 dB/°C, ensures reliable operation in diverse environments.
The GK-PMC Series is ideal for critical applications such as fiber amplifiers, fiber gyroscopes, and coherent communication systems, providing the precision and stability needed for advanced optical testing and monitoring.
488 - 2100 nm Polarization Maintaining Fused Coupler-PMC
Specifications |
|
|---|---|
| Type: | Other / Not specified |
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Wavelength: | 488-2100 nm |
| Fiber Type: | SMF-28e |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Center Wavelength (λc): | 488, 532, 635 780,830 980,1064 1310, 1480, 1550 1700, 2000 nm |
| Operating Wavelength: | λc ± 5 λc ± 10 λc ± 10 λc ± 20 λc ± 20 nm |
| Typ. Excess Loss: | 0.8 0.5 0.4 0.2 0.5 dB |
| Max. Excess Loss: | 1.2 0.8 0.6 0.4 0.8 dB |
| Min. ER¹: | 18 18 20² 20 20 dB |
| Max. Excess Loss For Each Connector: | 1.5 0.7 0.5 0.3 0.3 dB |
| Max. Optical Power (Continuous Wave): | 2 W |
| Thermal Stability: | ≤ 0.005 dB/℃ |
| Min. Return Loss: | 50 dB |
| Min. Directivity: | 50 dB |
| Fiber Type For Signal Port: | PM Fiber - |
| Fiber Type For Tap Port: | PM Fiber, or Singlemode Fiber - |
| Operating Temperature: | - 5 to + 70 ℃ |
Features
- Wide Wavelength Range: Operates from 488 nm to 2100 nm, accommodating diverse optical needs
- Low Excess Loss: Typical excess loss as low as 0.2 dB, ensuring efficient signal transmission
- High Polarization Extinction Ratio (ER): Min. ER of 18 dB for specified wavelengths, with 20 dB for others
- Robust Optical Power Handling: Supports continuous wave optical power up to 2 W
- High Thermal Stability: Maintains performance with thermal stability ≤ 0.005 dB/°C
- Precision Coupling Ratio: Available coupling ratios from 0.01/99.99 to 50/50 with tight tolerances
- Durable Fiber Options: Compatible with various PM fibers and singlemode fibers for signal and tap ports
Applications
- Power Monitoring: Ideal for accurately monitoring power levels in optical systems
- Fiber Amplifiers: Ensures stable and efficient operation in fiber amplifier applications
- Fiber Gyroscopes: Suitable for high-precision fiber gyroscope systems
- Coherent Communication: Enhances performance in coherent communication setups
- Fiber Laser Test Equipment: Reliable for testing and evaluating fiber lasers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The primary function of the GKER Polarization Maintaining Fused Coupler is to provide precise power splitting and signal monitoring in optical systems. It maintains high polarization extinction ratio and low excess loss, making it ideal for applications where polarization control is critical.
The GK-PMC Series supports a broad wavelength range from 488 nm to 2100 nm, accommodating a wide variety of optical applications.
The coupler is available with coupling ratios ranging from 0.01/99.99 to 50/50, allowing for flexible power splitting options to meet specific application needs.
The typical excess loss for the GK-PMC Series ranges from 0.2 dB to 0.8 dB, depending on the coupling ratio and wavelength.
The coupler is designed to achieve a high polarization extinction ratio (ER) up to 20 dB for specified wavelengths. This ensures minimal polarization-dependent loss and stable performance in polarization-sensitive applications.
The coupler supports continuous wave optical power up to 2 W. Note that for connectors, the optical power handling is limited to 1 W, and for visible wavelengths, the limit is 50 mW.
The coupler operates reliably within a temperature range of -5°C to +70°C and can be stored at temperatures from -40°C to +85°C.
Yes, the coupler can be customized with various wavelength options, coupling ratios, fiber types, connector types, and fiber lengths to meet specific application requirements.
