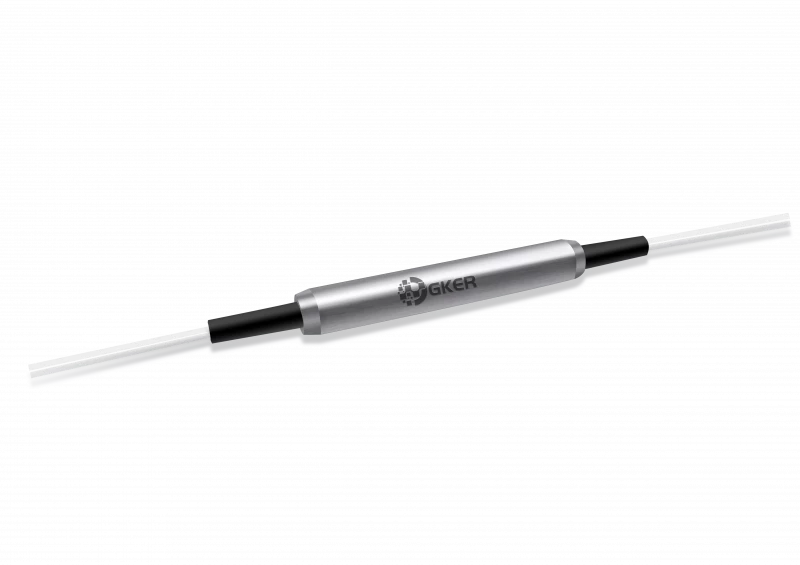

Singlemode Broadband Coupler (GK-SBC Series)
Description
The GKER Singlemode Broadband Coupler Series delivers high performance with exceptionally low insertion loss, minimal polarization dependence, and superior environmental stability. Designed for precise signal management, it offers coupling ratios ranging from 50/50 to 1/99 with excellent uniformity across a broad wavelength range.
This coupler operates effectively at standard wavelengths of 1310 nm and 1550 nm, or other specified wavelengths, and provides reliable performance with a maximum insertion loss of 21.5 dB for 1 × 2 configurations and 7.5 dB for 2 × 2 configurations. Its low polarization dependent loss (PDL) of 0.10 dB ensures consistent signal quality, while its high return loss of 50 dB maintains signal integrity.
Engineered for robustness, the coupler handles continuous wave optical power up to 300 mW and remains stable within an operating temperature range of -5°C to +70°C, with storage capabilities from -40°C to +85°C. Ideal for use in optical communication systems, it excels in power splitting and monitoring applications, providing reliable and efficient performance in various setups.
Singlemode Broadband Coupler (GK-SBC Series)
Specifications |
|
|---|---|
| Type: | Other / Not specified |
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Wavelength: | 1310, 1550, or specified nm |
| Fiber Type: | SMF-28e |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Center Wavelength (λc): | 1310, 1550, or specified nm |
| Operating Wavelength: | λc ± 40 nm |
| Coupling Ratio: | 01/99 02/98 03/97 05/95 10/90 % |
| Max. Insertion Loss: | 21.5/0.2 18.5/0.25 17.5/0.3 14.6/0.4 10.8/0.65 dB |
| Coupling Ratio: | 20/80 30/70 40/60 50/50 % |
| Max. Insertion Loss: | 7.5/1.2 5.6/1.8 4.4/2.5 3.4/3.4 dB |
| Max. PDL (Tap/Through Port): | 0.10 dB |
| Thermal Stability: | ≤ 0.002 over - 5 to + 70 dB/℃ |
| Min. Return Loss: | 50 dB |
| Directivity 1 × 2 2 × 2: | 55 60 dB |
| Max. Optical Power (Continuous Wave): | mW 300 |
| Fiber Type: | SMF-28 Fiber - |
| Operating Temperature: | - 5 to + 70 ℃ |
Features
- Low Insertion Loss: Ensures minimal signal loss with maximum values of 21.5 dB (1 × 2) and 18.5 dB (2 × 2)
- Wide Coupling Ratio Range: Available from 1/99 to 50/50, allowing for precise control of signal distribution
- Minimal Polarization Dependence: Provides consistent performance with a maximum PDL of 0.10 dB
- Excellent Environmental Stability: Maintains performance across a broad temperature range from -5°C to +70°C
- High Return Loss: Min. return loss of 50 dB ensures high-quality signal integrity
- Robust Optical Power Handling: Capable of handling continuous wave optical power up to 300 mW
- Customizable Options: Available with various connector types, fiber jackets, and lengths
Applications
Optical Communication Systems: Ideal for power splitting and monitoring in various optical networks
Signal Distribution: Efficiently manages signal distribution in singlemode fiber applications
Monitoring Functions: Suitable for use in systems requiring precise signal monitoring and control
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The GKER Singlemode Broadband Coupler is designed for efficient power splitting and signal monitoring in optical communication systems, providing precise control over signal distribution with minimal loss.
The coupler supports standard wavelengths of 1310 nm and 1550 nm, as well as other specified wavelengths, with a broad operating range of ± 40 nm.
The coupler offers coupling ratios from 50/50 to 1/99, including specific ratios like 01/99, 02/98, 03/97, 05/95, and 10/90.
The maximum insertion loss is 21.5 dB for 1 × 2 configurations and 7.5 dB for 2 × 2 configurations.
The coupler features a low polarization dependent loss (PDL) of 0.10 dB, ensuring consistent signal quality across varying polarization conditions.
The coupler operates reliably within a temperature range of -5°C to +70°C and can be stored in temperatures ranging from -40°C to +85°C.
The coupler can handle continuous wave optical power up to 300 mW.
Yes, the coupler can be customized with various connector types, fiber jackets, and lengths to meet specific application requirements.
