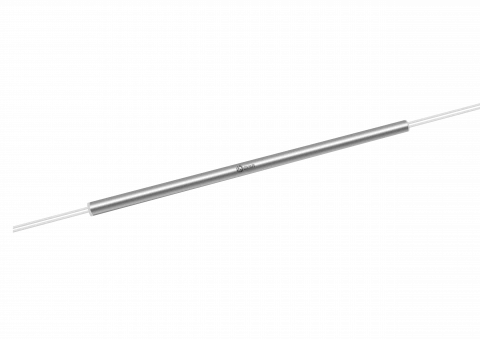

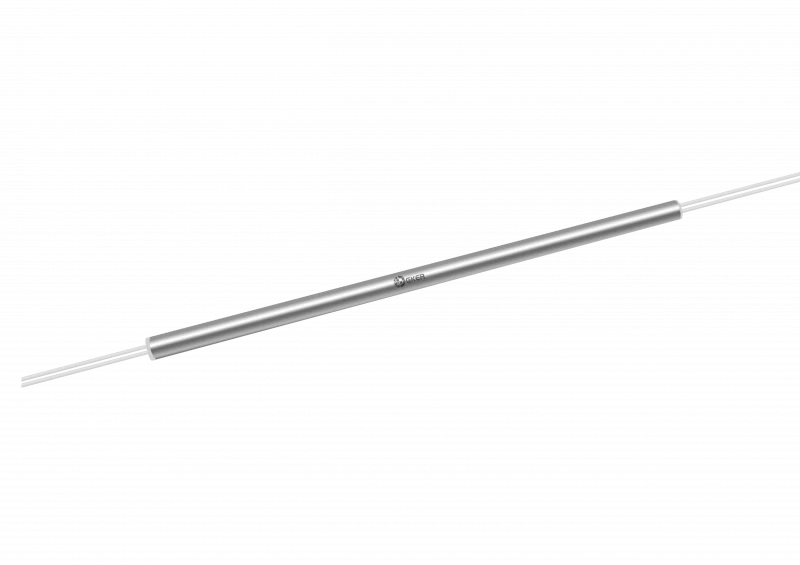

Singlemode Broadband Coupler SBC Series
Description
The Singlemode Broadband Coupler from GKER Photonics is engineered to deliver superior performance with low insertion loss and minimal polarization dependence across a wide wavelength range. This coupler is available in center wavelengths of 850, 1064, and 1310 nm, with a broad operational tolerance of ±100 nm, making it highly versatile for various optical applications.
It features precise coupling ratios ranging from 50/50 to 1/99, ensuring accurate and consistent power splitting and monitoring. The coupler exhibits excellent uniformity with a maximum variation of 6 dB for the 50/50 ratio, and very low excess loss, ranging from 0.25 dB to 0.15 dB depending on the coupling ratio. Its high thermal stability maintains performance with minimal deviation over a wide temperature range from -5°C to +70°C.
Built for reliability, the coupler supports up to 300 mW of continuous wave optical power and offers robust performance with a minimum return loss of 55 dB for 1 × 2 configurations and 60 dB for 2 × 2 configurations. This makes it ideal for demanding optical communication systems, telecommunications, and testing applications where precise signal routing and minimal signal loss are crucial.
Singlemode Broadband Coupler SBC Series
Specifications |
|
|---|---|
| Type: | Other / Not specified |
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Wavelength: | 1310 1550 orSpecify nm |
| Fiber Type: | SMF-28e |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Center Wavelength (λc): | 850, 1064, 1310 nm |
| Operating Wavelength Range: | ± 100 ± 100 ± 100 nm |
| Coupling Ratio: | 2/98, 5/95, 10/90, 50/50, or specified % |
| Coupling Ratio Tolerance (e.g. 50/50): | 6 5 5 % |
| Max. Uniformity 50/50 Ratio: | 1 0.5 0.5 dB |
| Excess Loss: | 0.25 0.15 0.15 dB |
| Thermal Stability: | ≤ 0.002 over - 5 ℃ to + 70 ℃ dB/℃ |
| Min. Return Loss: | 55 dB |
| Min. Directivity 1 ×2 2 ×2: | 55 60 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Type: | HI 780CHI 1060 Flex SMF-28 Fiber - |
| Operating Temperature: | - 5 to + 70 ℃ |
Features
- Broad Wavelength Range: Operates across 850, 1064, and 1310 nm with a tolerance of ±100 nm
- Low Insertion Loss: Maximum insertion loss of 0.25 dB for 50/50 coupling ratio, and 0.15 dB for other ratios
- Excellent Uniformity: Max. uniformity of 6 dB for 50/50 coupling ratio
- High Thermal Stability: Minimal deviation in performance (≤ 0.002 dB/°C) over a temperature range of -5°C to +70°C
- High Return Loss: Minimum return loss of 55 dB for 1 × 2 and 60 dB for 2 × 2 configurations
- High Power Handling: Capable of handling up to 300 mW of continuous wave optical power
- Versatile Fiber Options: Compatible with HI 780C, HI 1060 Flex, and SMF-28 fibers
Applications
- Optical Communication Systems: Ideal for power splitting and monitoring in various optical setups
- Telecommunications: Suitable for use in network infrastructure and signal distribution
- Testing and Measurement: Used in optical testing and measurement applications for accurate power monitoring
- Signal Routing: Effective in routing optical signals with high precision and low loss
