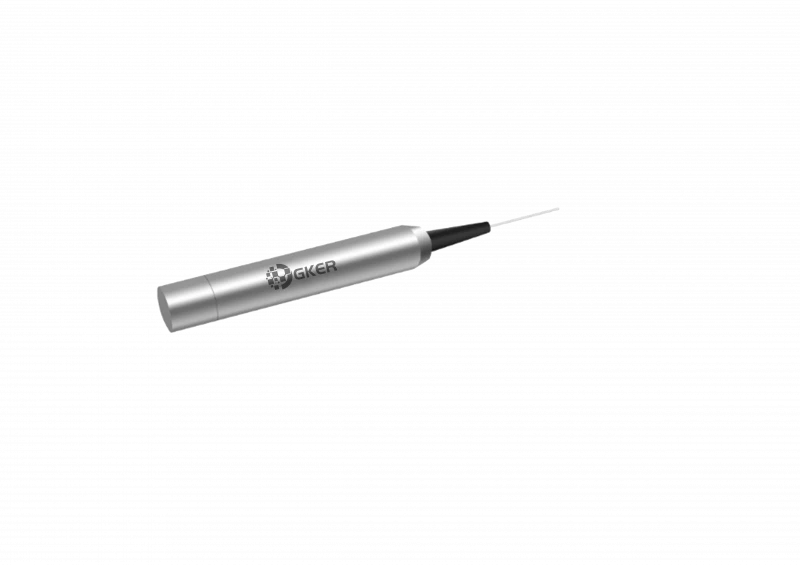

1064 nm Faraday Mirror
Description
The GKER Photonics 1064 nm Faraday Mirror (GK-FM Series) is a highly reliable passive optical device engineered to rotate the polarization of the input light by 90 degrees. This rotation helps minimize polarization-related effects, making it an essential component in high-performance optical systems. With a center wavelength of 1064 nm, the Faraday Mirror is designed for use in applications such as Erbium-Doped Fiber Amplifiers (EDFAs), fiber lasers, and other fiber optic instruments where maintaining signal integrity is critical.
The device boasts excellent environmental stability, ensuring consistent performance across a range of operating conditions. It features a low typical insertion loss of 2.8 dB, which helps to maintain the overall efficiency of the optical system. The Faraday Mirror is also designed to handle a maximum continuous wave optical power of 150 mW, making it suitable for demanding applications.
Its compact design and use of HI 1060 fiber make it easy to integrate into various optical setups. The device also offers a low polarization-dependent loss and minimal polarization mode dispersion, ensuring high signal quality and reliability. The 1064 nm Faraday Mirror is an ideal choice for professionals seeking to enhance the performance and stability of their optical systems, particularly in environments where polarization effects can significantly impact signal quality.
1064 nm Faraday Mirror
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Operating Wavelength Range: | 06-1064nm |
| Typical Insertion Loss: | 2.8 dB |
| Max Insertion Loss: | 3.0 dB |
| Min Extinction Ratio: | - dB |
| Max Optical Power: | 150 mW |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 5 nm |
| Typ. Insertion Loss: | 2.8 dB |
| Max. Insertion Loss: | 3.0 dB |
| Faraday Rotation Angle (single Pass): | 45 degree |
| Max. Rotation Angle Tolerance, λc, 23 ℃: | ± 3 degree |
| Max. Polarization Dependent Loss: | 0.1 dB |
| Max. Polarization Mode Dispersion: | 0.05 ps |
| Fiber Type: | HI 1060 Fiber - |
| Max. Optical Power (Continuous Wave): | 150 mW |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | -5 to +50 ℃ |
| Storage Temperature: | -40 to +85 ℃ |
Features
- Precise Polarization Rotation: Achieves a 90-degree rotation of the input light polarization
- Low Insertion Loss: Typical insertion loss as low as 2.8 dB, ensuring minimal signal degradation
- High Environmental Stability: Reliable performance across a wide operating temperature range
- Minimal Polarization Mode Dispersion: Maximum PMD of 0.05 ps, maintaining signal integrity
- High Power Handling: Supports up to 150 mW of continuous wave optical power
- Durable Construction: Built to withstand a maximum tensile load of 5 N
Applications
- Erbium-Doped Fiber Amplifiers (EDFAs): Enhances amplifier performance by stabilizing polarization
- Fiber Lasers: Improves laser output stability by minimizing polarization effects
- Fiber Optic Instruments: Ensures accurate measurements by maintaining consistent polarization
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
It rotates the polarization of the input light by 90 degrees to minimize polarization effects.
The typical insertion loss is 2.8 dB.
It can handle up to 150 mW of continuous wave optical power.
It is suitable for use in EDFAs, fiber lasers, and fiber optic instruments.
The operating wavelength range is λc ± 5 nm, with a center wavelength of 1064 nm.
The maximum PMD is 0.05 ps.
It can withstand a maximum tensile load of 5 N.
The storage temperature range is -40°C to +85°C.
The device uses HI 1060 Fiber.
It minimizes polarization-dependent loss and polarization mode dispersion.
