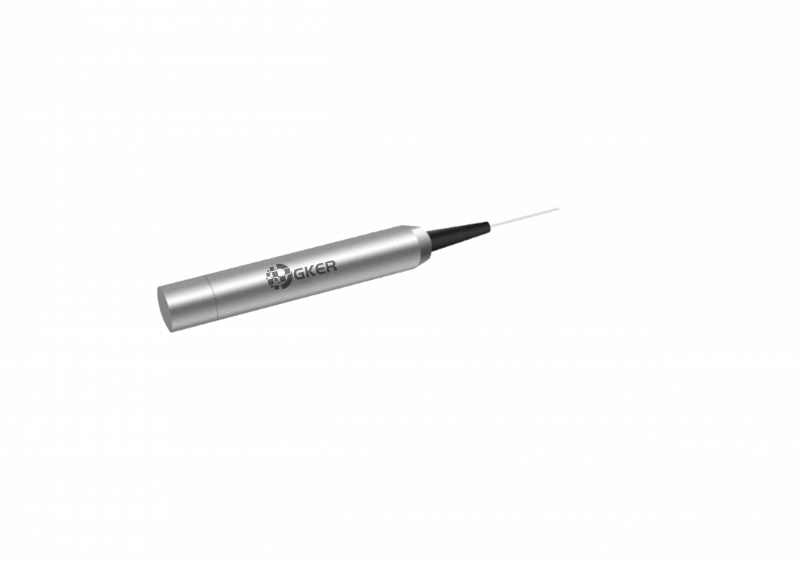

1310 -1550nm Optical Fiber Mirror
Description
The Optical Fiber Mirror from GKER Photonics Co., Ltd is a precision device designed to reflect and maintain the integrity of optical signals in various applications. With a focus on minimizing insertion loss and polarization-dependent loss, the GK-OFM Series ensures high signal fidelity, making it ideal for advanced optical communication systems. The mirror operates efficiently across standard wavelengths of 1310 nm, 1550 nm, and 1064 nm, with the capability to handle high optical power up to 300 mW.
Constructed with SMF-28 or HI 1060 Fiber, this mirror is robust and stable, ensuring reliable performance even in challenging environments. It is widely used in fiber lasers, optical testing, and instrumentation, where precision and stability are paramount. The product's environmental resilience and low insertion loss make it a versatile and reliable choice for maintaining the quality of optical signals in various applications.
1310 -1550nm Optical Fiber Mirror
Specifications |
|
|---|---|
| Center Wavelength: | 1310, 1550 1064 nm |
| Operating Wavelength Range: | 1310-1550nm |
| Typical Insertion Loss: | 0.4 0.5 dB |
| Max Insertion Loss: | 0.5 0.7 dB |
| Min Extinction Ratio: | - dB |
| Max Optical Power: | 300 mW |
| Center Wavelength (λc): | 1310, 1550 1064 nm |
| Operating Wavelength Range: | ± 20 nm |
| Typ. Insertion Loss: | 0.4 0.5 dB |
| Max. Insertion Loss: | 0.5 0.7 dB |
| Max. Polarization Dependent Loss: | 0.05 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | SMF-28 Fiber HI 1060 Fiber - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Provides efficient signal reflection with typical values as low as 0.4 dB
- High Polarization Stability: Ensures minimal polarization-dependent loss with a maximum PDL of 0.05 dB
- High Optical Power Handling: Capable of managing continuous optical power up to 300 mW
- Broad Wavelength Compatibility: Supports standard wavelengths of 1310 nm, 1550 nm, and 1064 nm
- Robust Construction: Built with SMF-28 or HI 1060 Fiber for enhanced durability and performance stability
- Excellent Environmental Stability: Operates reliably in a wide temperature range from -5°C to +70°C
Applications
- Optical Communication Systems: Enhances signal reflection in advanced fiber optic networks
- Fiber Lasers: Maintains signal integrity in high-precision laser systems
- Optical Testing and Measurement: Provides accurate reflection for testing and measurement applications
- Instrumentation: Ensures stable signal management in various optical instruments
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
Supports 1310 nm, 1550 nm, and 1064 nm wavelengths.
Typical insertion loss is 0.4 dB for 1310 nm and 1550 nm, and 0.5 dB for 1064 nm.
Maximum insertion loss is 0.5 dB for 1310 nm and 1550 nm, and 0.7 dB for 1064 nm.
Maximum polarization dependent loss is 0.05 dB.
The mirror can handle up to 300 mW of continuous optical power.
The mirror uses SMF-28 Fiber and HI 1060 Fiber.
The operating temperature range is from -5°C to +70°C.
The storage temperature range is from -40°C to +85°C.
The maximum tensile load is 5 N.
Insertion loss increases by 0.3 dB, return loss decreases by 5 dB, and extinction ratio decreases by 2 dB for each additional connector.
