Faraday Mirror 1310-1480-1550nm
Description

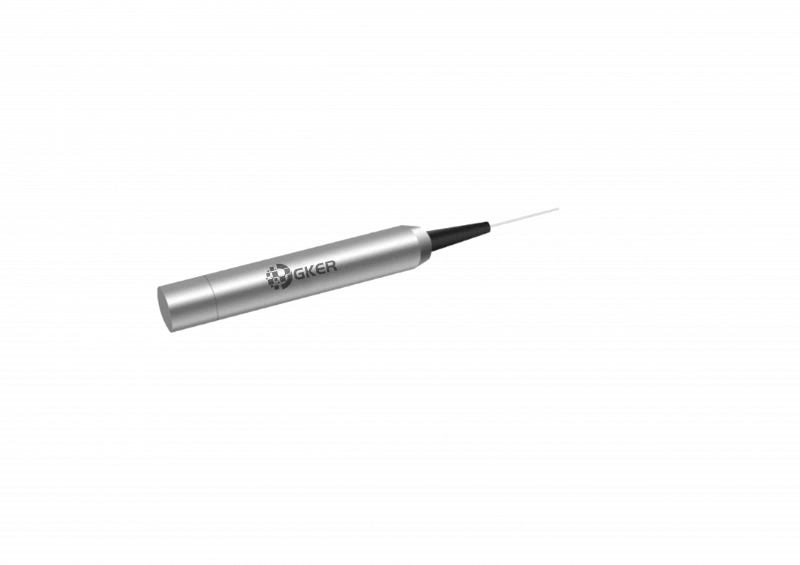

The GKER Photonics Faraday Mirror (GK-FM Series) is a high-performance passive optical device designed to provide a 90-degree rotation of the polarization state of input light, effectively minimizing polarization effects in various optical systems. With its excellent environmental stability and the lowest possible insertion loss, this Faraday Mirror is an ideal choice for use in Erbium-Doped Fiber Amplifiers (EDFAs), fiber lasers, and fiber instrumentation. The GK-FM Series is engineered to meet the rigorous demands of modern optical networks, offering precise Faraday rotation angles with minimal deviation.
This series features SMF-28 fiber, ensuring consistent performance and reliability across various applications. The device supports a wide operating temperature range from -5°C to +70°C, making it suitable for diverse environments. Available with center wavelengths of 1310 nm, 1480 nm, and 1550 nm, the GK-FM Series can be tailored to specific needs with customizable fiber jackets and connector types. It is capable of handling up to 300 mW of continuous optical power, ensuring robustness in high-power applications.
GKER Photonics' commitment to quality ensures that each Faraday Mirror undergoes stringent testing to meet industry standards, providing customers with a reliable solution for polarization management in advanced optical systems. This product is an excellent choice for professionals seeking a versatile, stable, and high-performance Faraday Mirror for their optical networks.
Faraday Mirror 1310-1480-1550nm
Specifications |
|
|---|---|
| Center Wavelength: | 1310, 1480, 1550 nm |
| Operating Wavelength Range: | 1310-1550nm |
| Typical Insertion Loss: | 0.4 dB |
| Max Insertion Loss: | 0.6 dB |
| Min Extinction Ratio: | - dB |
| Max Optical Power: | 300 mW |
| Center Wavelength: | 1310, 1480, 1550 nm |
| Operating Wavelength Range: | ± 15 nm |
| Typ. Insertion Loss: | 0.4 dB |
| Max. Insertion Loss: | 0.6 dB |
| Faraday Rotation Angle (Single Pass): | 45 degree |
| Max. Rotation Angle Tolerance, λc, 23 ℃: | ± 1 degree |
| Max. PDL: | 0.1 dB |
| Fiber Type: | SMF-28 Fiber - |
| Max. Optical Power: | 300 mW |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- 90-Degree Polarization Rotation: Ensures accurate control of polarization state in optical systems
- Low Insertion Loss: Minimizes signal degradation with typical values as low as 0.4 dB
- Environmental Stability: Operates reliably in temperatures ranging from -5°C to +70°C
- Customizable Options: Available with various fiber jackets, connectors, and lengths
- High Optical Power Handling: Supports up to 300 mW of continuous optical power
Applications
- EDFAs: Enhances polarization management in Erbium-Doped Fiber Amplifiers
- Fiber Lasers: Provides stable polarization rotation for fiber laser systems
- Optical Instrumentation: Ideal for precise polarization control in test and measurement setups
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The Faraday Mirror provides a 90-degree rotation of the polarization state of the input light, minimizing polarization effects in optical systems.
The GK-FM Series supports center wavelengths of 1310 nm, 1480 nm, and 1550 nm.
The typical insertion loss is 0.4 dB, with a maximum insertion loss of 0.6 dB.
The Faraday Mirror can handle up to 300 mW of continuous optical power.
The Faraday Mirror uses SMF-28 fiber for optimal performance.
The device operates within a temperature range of -5°C to +70°C.
Yes, it is available with customizable options including fiber jackets, connector types, and lengths.
The Faraday Mirror is ideal for use in EDFAs, fiber lasers, and optical instrumentation.
The Faraday rotation angle is 45 degrees with a maximum tolerance of ±1 degree at 23°C.
