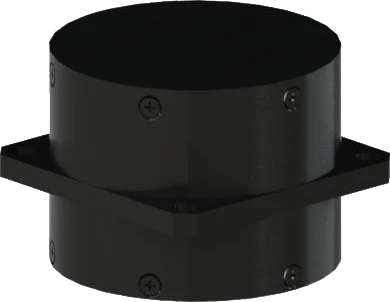

CSRayzer DK50 Fiber Optic Gyroscope for Inertial Navigation System(INS)
Description
The CSRayzer DK50 Fiber Optic Gyroscope (FOG) is a state-of-the-art, single-axis, digital closed-loop gyroscope designed to deliver reliable and accurate performance in various demanding applications. With a bias stability of 0.5 to 0.2 º/h, the DK50 ensures precise measurements, making it an ideal solution for applications requiring stable and consistent orientation data. Its compact structure, coupled with its long service life, makes it a durable choice for industries such as aviation, aerospace, and marine navigation.
The DK50 Fiber Optic Gyroscope is engineered with high vibration resistance, allowing it to operate effectively in environments where mechanical shocks and vibrations are common. Its large dynamic range and high reliability make it suitable for a wide range of navigation and control systems, including inertial navigation, guidance systems, and real-time attitude control. The gyroscope's small form factor (Φ50*38 mm) and lightweight design (≤180 g) make it easy to integrate into various systems, ensuring minimal impact on the overall weight and size of the host equipment.
Designed to operate in extreme temperatures ranging from -40°C to +70°C, the DK50 is a robust and versatile solution for precision navigation and control applications. Its RS-422 output method ensures reliable data communication, while the quick start-up time of ≤10 seconds minimizes system downtime.
CSRayzer DK50 Fiber Optic Gyroscope for Inertial Navigation System(INS)
Specifications |
|
|---|---|
| Angular Rate: | -500-500deg/sec |
| Bandwidth (min): | / Hz |
| Measurement Range: | -500~+500 º/s |
| Bias Stability(25°C): | ≤0.2 º/h |
| Angle Random Walk (25°C): | ≤0.02 º/√h |
| Scale Factor Repeatability: | ≤200 ppm |
| Power Supply: | ±5 V |
| Start Time: | ≤10 s |
| Dimension: | Φ50*38 mm |
| Working Temperature: | -40~+70 ℃ |
| Net Weight: | ≤180 g |
Features
- High Bias Stability: Provides bias stability of 0.5 to 0.2 º/h for accurate orientation measurement
- Compact and Lightweight: Features a small form factor (Φ50*38 mm) and weighs only ≤180 g
- Vibration Resistant: Engineered for high vibration resistance, ensuring reliable operation in harsh environments
- Wide Dynamic Range: Suitable for a range of applications with a large dynamic range
- Quick Start-Up: Offers a fast start-up time of ≤10 seconds to reduce system downtime
- Reliable Data Communication: Supports RS-422 output for consistent and accurate data transfer
Applications
- Inertial Navigation: Ideal for integrating into small inertial groups and guidance systems
- Real-Time Attitude Control: Suitable for real-time attitude control in various environments
- Aviation, Aerospace, and Marine Navigation: Perfect for navigation and control in aviation, aerospace, and marine industries
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The bias stability ranges from 0.5 to 0.2 º/h.
It is commonly used in inertial navigation, real-time attitude control, and in aviation, aerospace, and marine navigation.
The gyroscope has a compact dimension of Φ50*38 mm.
The device weighs ≤180 g.
The DK50 operates reliably in temperatures ranging from -40°C to +70°C.
The gyroscope has a start-up time of ≤10 seconds.
It uses RS-422 for data output.
The DK50 has a measurement range of -500~+500 º/s.
The gyroscope is designed with high vibration resistance for reliable operation in harsh environments.
Yes, it is designed with a long service life and high reliability.
