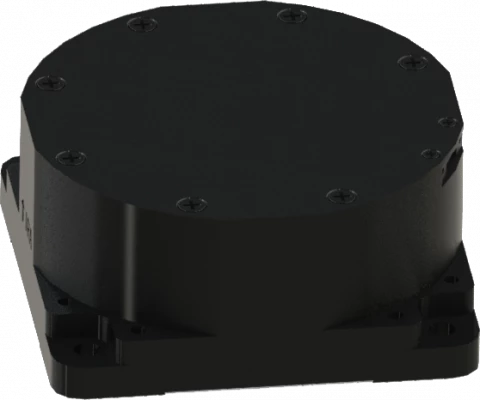

FOG-DK70 Single-Axis Fiber Optic Gyroscope for Inertial Navigation System
Description
The DK70 Fiber Optic Gyroscope (FOG) is an advanced, single-axis digital closed-loop gyroscope designed for applications requiring precise measurement of angular velocity. With a bias instability range of 0.1 to 0.02 º/h, the DK70 offers exceptional accuracy and reliability, making it an ideal choice for high-demand environments such as aviation, aerospace, and navigation. Its compact and robust structure ensures durability and long service life, even in challenging conditions. The gyroscope is engineered to withstand vibrations, resist magnetic interference, and maintain high reliability over time.
The DK70's small form factor and low power consumption make it suitable for integration into various systems, including inertial navigation, real-time attitude control, and guidance systems. The device offers quick start-up times and is compatible with RS-422 output for seamless communication with other systems. Operating effectively across a wide temperature range of -40°C to +70°C, the DK70 is built to perform in extreme environments. Available in both medium and high precision models, this gyroscope provides flexibility to meet specific application needs.

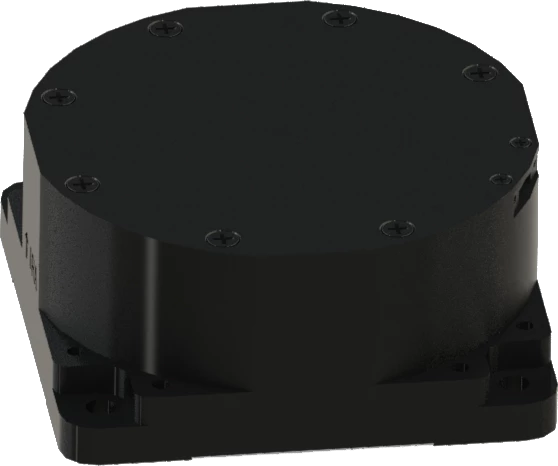

FOG-DK70 Single-Axis Fiber Optic Gyroscope for Inertial Navigation System
Specifications |
|
|---|---|
| Angular Rate: | -500-500deg/sec |
| Bandwidth (min): | / Hz |
| Measurement Range: | -500~+500 º/s |
| Bias Stability: | 0.1 / 0.02 º/h |
| Scale Factor Repeatability: | 100 / 30 ppm |
| Start Time: | 10 s |
| Output Method: | RS-422 |
| Working Temperature: | -40 to +70 ℃ |
| Dimension Φ: | 70x32 mm |
| Net Weight: | ≤300 g |
Features
- Single-Axis Digital Closed-loop Design: Provides accurate angular velocity measurement with bias instability ranging from 0.1 to 0.02 º/h
- Compact and Robust Structure: Ensures durability, vibration resistance, and long service life, suitable for demanding environments
- Anti-Magnetic Interference: Designed to operate reliably even in the presence of magnetic fields
- High Reliability: Built for consistent performance, with high reliability over extended periods
- Quick Start-Up Time: Achieves full functionality within 10 seconds
- RS-422 Output Compatibility: Enables easy integration with existing systems for seamless data communication
Applications
- Inertial Navigation Systems: Ideal for precise navigation in aerospace and marine applications
- Real-Time Attitude Control: Ensures accurate control of vehicle orientation in aviation and space systems
- Guidance Systems: Supports high-precision guidance in a variety of platforms, including drones and missiles
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The bias instability range is 0.1 º/h for the medium precision model and 0.02 º/h for the high precision model.
The measurement range is -500 to +500 º/s for both medium and high precision models.
The DK70 has a start-up time of 10 seconds for both precision models.
The DK70 has dimensions of Φ70*32 mm for both medium and high precision models.
The DK70 requires a ±5 V power supply.
The medium precision model weighs ≤300 g, and the high precision model weighs ≤350 g.
The DK70 operates in a temperature range of -40°C to +70°C.
The DK70 supports RS-422 output for data communication.
Yes, the DK70 is designed to resist vibrations and magnetic interference, ensuring high reliability.
The DK70 is suitable for inertial navigation, guidance systems, and real-time attitude control in aviation, aerospace, and marine environments.
